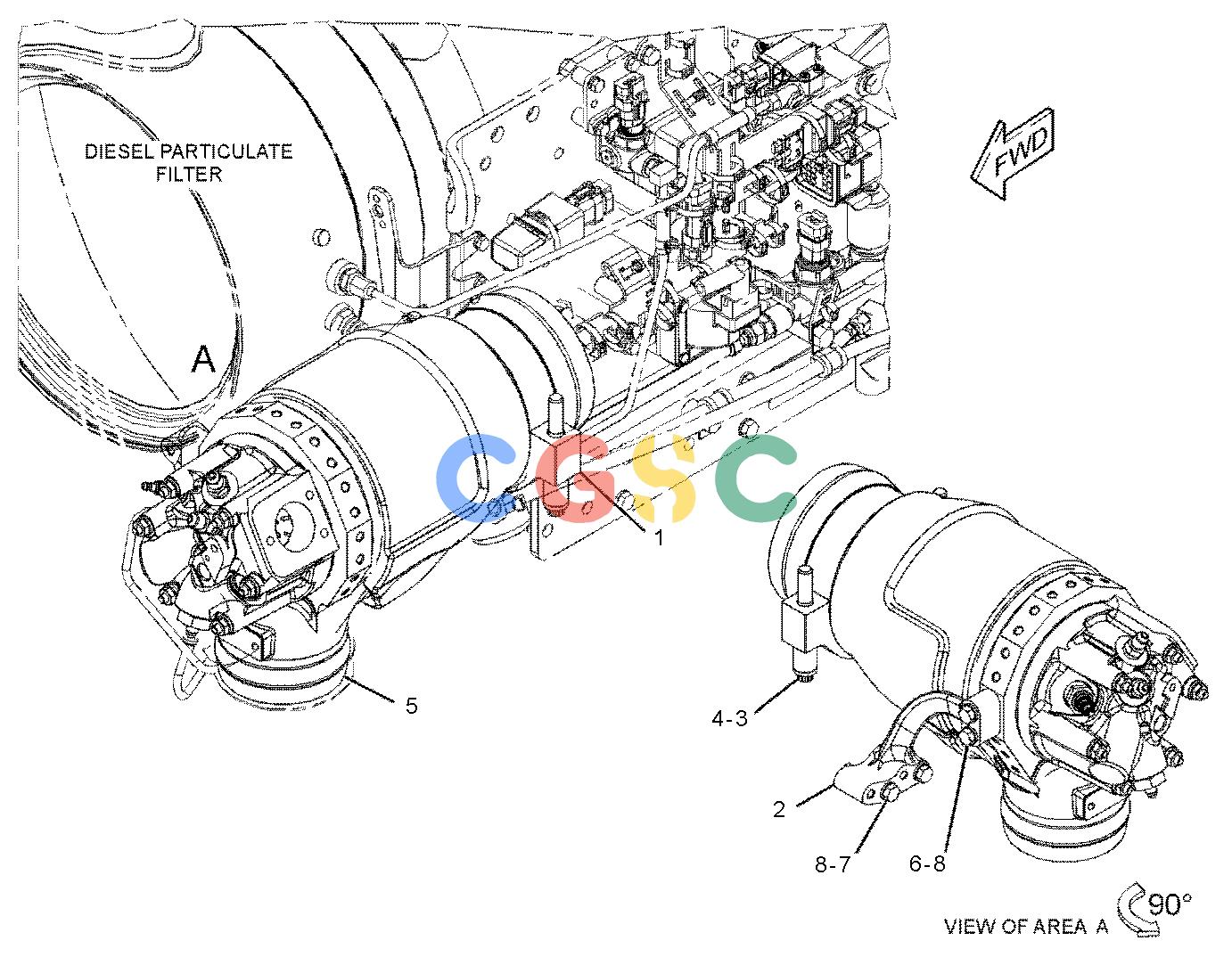

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 348-3379 | [1] | CLAMP-SUPPORT | |
| 2. | 348-3383C | [1] | BRACKET-SUPPORT | |
| 3. | 348-3426M | [2] | BOLT-12 POINT HEAD(M12X1.75X100-MM) | |
| 4. | 348-3428 | [2] | SPACER(14X20X42-MM THK) | |
| 5. | 355-0882Y | [1] | COMBUSTION GP-EXHAUST | |
| 6. | 099-3649CM | [2] | BOLT(M8X1.25X40-MM) | |
| 7. | 5C-2537CM | [2] | BOLT(M8X1.25X50-MM) | |
| 8. | 311-8366 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
