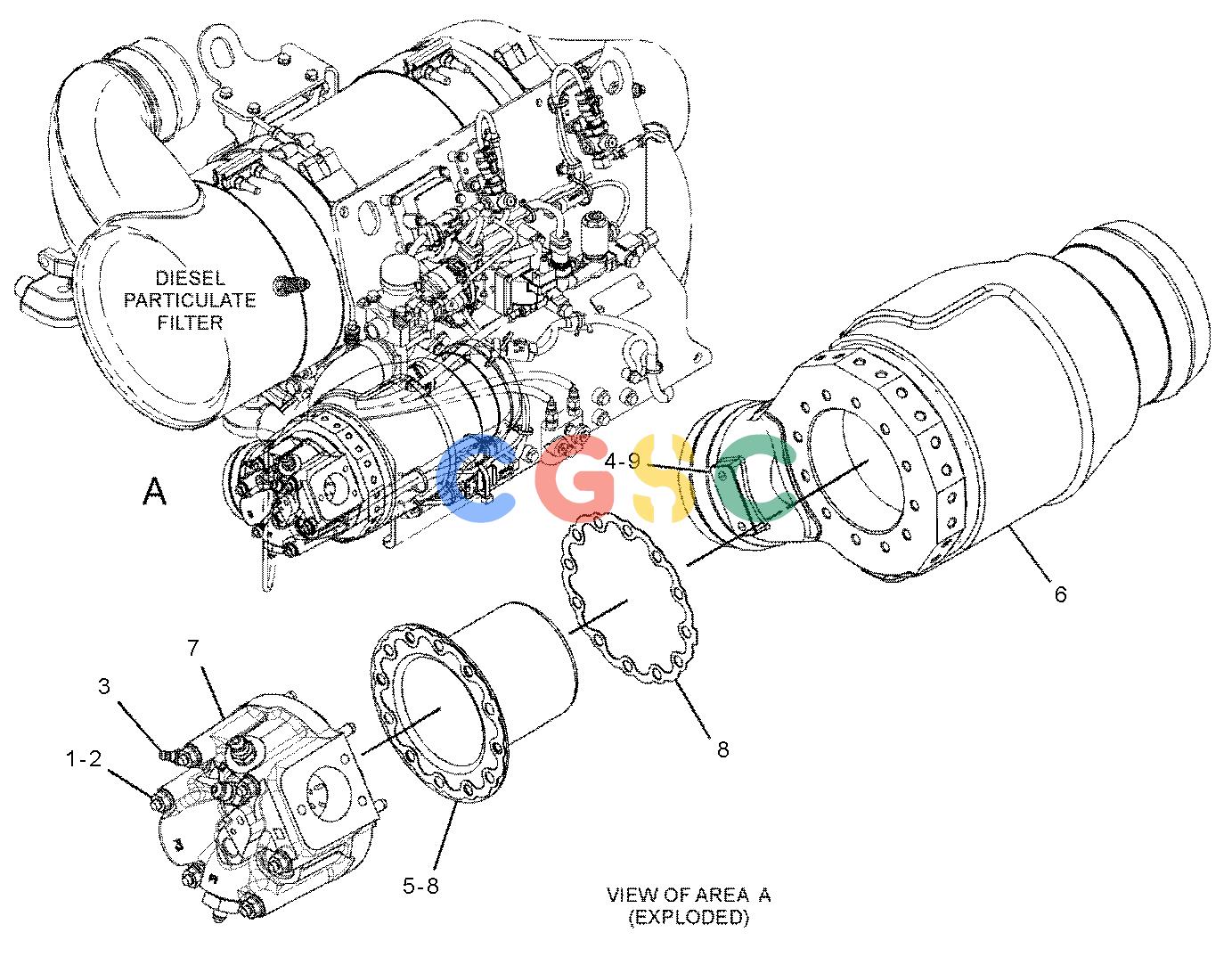

卡特零件查询（725C） 355-0882: COMBUSTION GP-EXHAUST
广数供应链运营团队, 14 02月, 2025，浏览：
477 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 291-5204M | [6] | LOCKNUT(M8X1.25-THD) | |
| 2. | 293-4967M | [6] | STUD-TAPERLOCK(M8X1.25X115-MM) | |
| 3. | 295-3099 | [1] | SPARK PLUG(AFTERTREATMENT REGEN DEVICE) | |
| 4. | 342-1490 | [1] | PLATE-INFORMATION(EXHAUST COMBUSTION) | |
| 5. | 348-3364 | [1] | TUBE | |
| 6. | 381-8112 | [1] | BODY AS-EXHAUST COMBUSTION | |
| 7. | 433-3675Y | [1] | HEAD GP-COMBUSTION | |
| 8. | 348-3425 | [2] | GASKET | |
| 9. | 2K-3219 | [2] | SCREW-DRIVE(NO 6X0.25-IN) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
