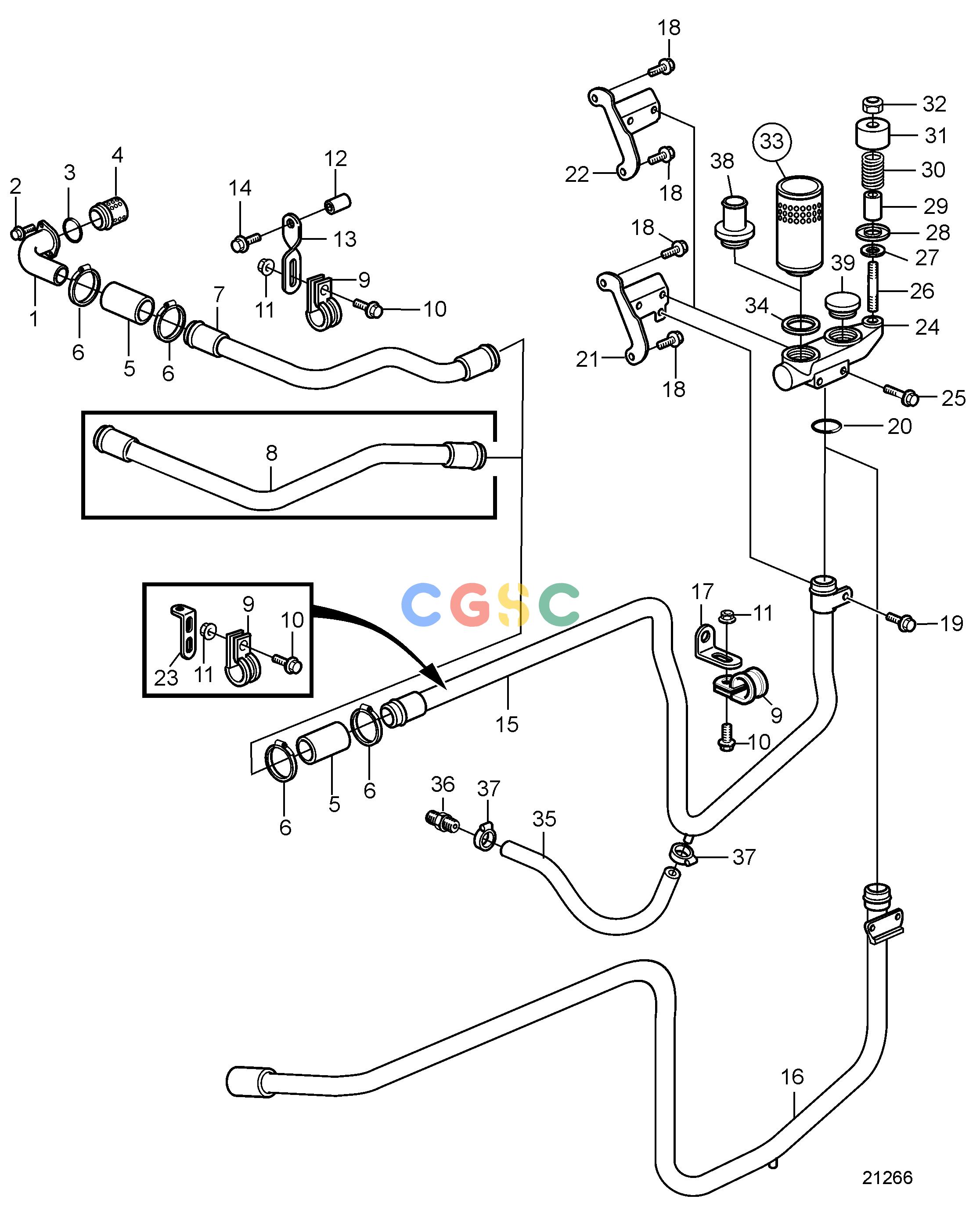

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MIntake and Exhaust SystemCrankcase Ventilation: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
397 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3827462
|
[1] |
Hose connection
|
|
| 2. |
945444
|
[2] |
Flange screw
|
|
| 3. |
3165097
|
[1] |
Sealing ring
|
|
| 4. |
3165095
|
[1] |
Cup
|
|
| 5. |
942707
|
[1] |
Hose
|
L=100mm
|
| 6. |
961669
|
[4] |
Hose clamp
|
|
| 7. |
3828812
|
[1] |
Tube
|
Earlier prod
|
| 8. |
3835437
|
[1] |
Tube
|
Late type
|
| 9. |
947827
|
[4] |
Clamp
|
|
| 10. |
946440
|
[4] |
Flange screw
|
|
| 11. |
945408
|
[4] |
Flange nut
|
|
| 12. |
821540
|
[1] |
Spacer sleeve
|
|
| 13. |
1136551
|
[1] |
Anchorage
|
|
| 14. |
947760
|
[1] |
Flange screw
|
|
| 15. |
3828813
|
[1] |
Tube
|
Early type
|
| 16. |
3838148
|
[1] |
Tube
|
Late type
|
| 17. |
965556
|
[1] |
Bracket
|
|
| 18. |
965185
|
[2] |
Flange screw
|
|
| 19. |
946440
|
[1] |
Flange screw
|
Early type
|
| 20. |
421158
|
[1] |
Sealing ring
|
|
| 21. |
3828858
|
[1] |
Bracket
|
Early type
|
| 22. |
|
|
|
Late type
|
| 23. |
965553
|
[1] |
Bracket
|
|
| 24. |
3826199
|
[1] |
Connector housing
|
|
| 25. |
965180
|
[2] |
Flange screw
|
|
| 26. |
924058
|
[1] |
Stud
|
|
| 27. |
421158
|
[1] |
Sealing ring
|
|
| 28. |
842972
|
[1] |
Valve disc
|
|
| 29. |
842974
|
[1] |
Spacer sleeve
|
|
| 30. |
843301
|
[1] |
Spring
|
|
| 31. |
842975
|
[1] |
Protecting casing
|
|
| 32. |
963105
|
[1] |
Lock nut
|
|
| 33. |
876069
|
[2] |
Filter
|
|
| 34. |
843449
|
[2] |
Gasket
|
|
| 35. |
3524376
|
[1] |
Hose
|
L=250mm
|
| 36. |
942722
|
[1] |
Nipple
|
|
| 37. |
961663
|
[2] |
Hose clamp
|
|
| 38. |
845260
|
[1] |
Hose attachment
|
|
| 39. |
3836106
|
[1] |
Plug
|
Used when hose conection 845260 is mounted.
|
