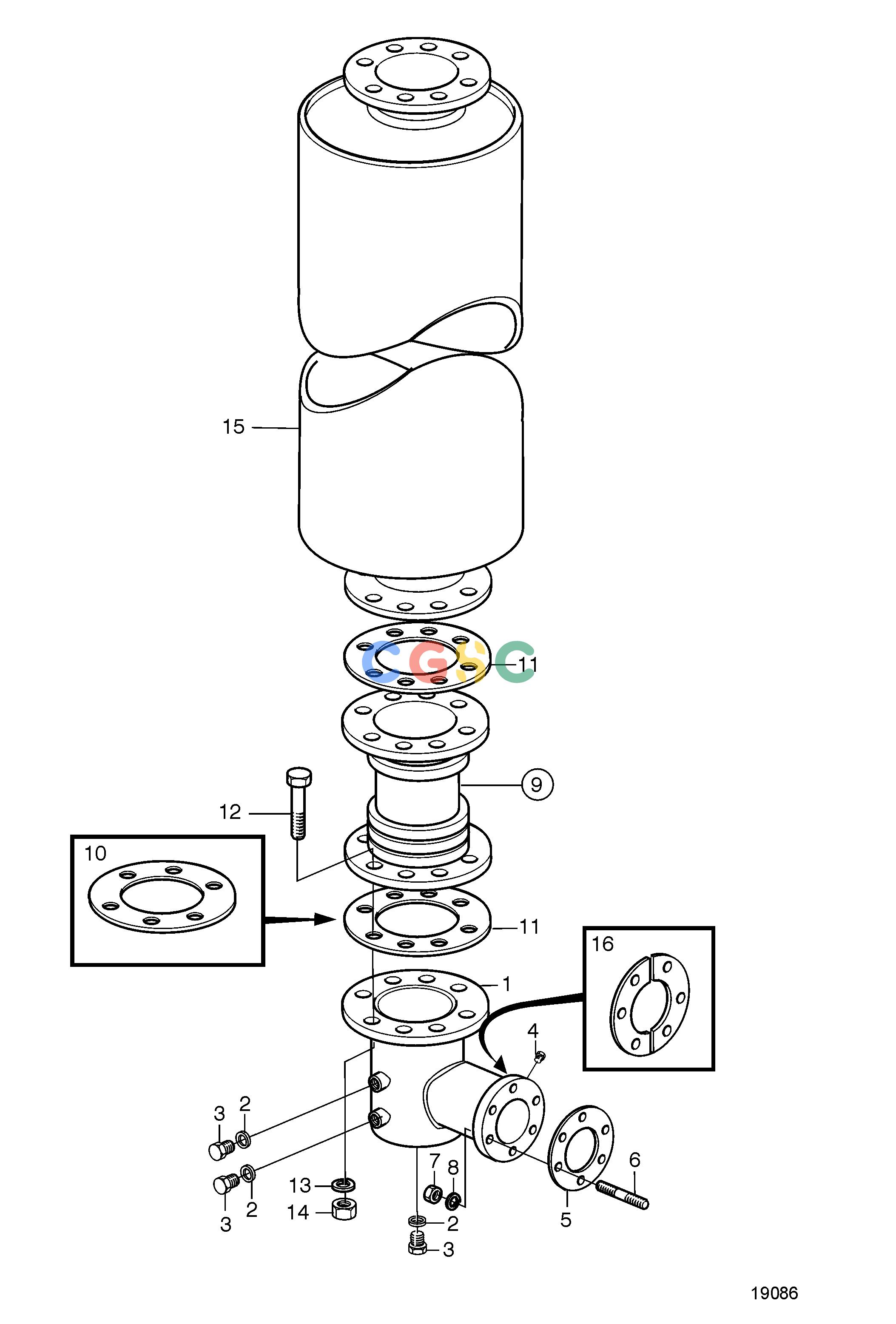

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MIntake and Exhaust SystemDry Exhaust Line 7'' (175mm) Later ProductionEPC Volvo Penta Parts
广数供应链运营团队, 14 02月, 2025，浏览：
761 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3832667
|
[1] |
Exhaust pipe elbow
|
|
| 2. |
947626
|
[3] |
Gasket
|
|
| 3. |
914392
|
[3] |
Plug
|
|
| 4. |
479979
|
[1] |
Plug
|
(191026)
|
| 5. |
863353
|
[1] |
Gasket
|
|
| 6. |
479972
|
[6] |
Stud
|
|
| 7. |
943927
|
[6] |
Hexagon nut
|
|
| 8. |
941908
|
[6] |
Spring washer
|
|
| 9. |
865300
|
[1] |
Compensator
|
|
| 10. |
849981
|
[1] |
Flange
|
|
| 11. |
862950
|
[1] |
Gasket
|
|
| 12. |
955366
|
[16] |
Hexagon screw
|
|
| 13. |
941912
|
[16] |
Spring washer
|
|
| 14. |
955785
|
[16] |
Hexagon nut
|
|
| 15. |
849832
|
[1] |
Silencer
|
|
| 15. |
3830517
|
[1] |
Silencer
|
With spark arrestor.
|
| 16. |
863442
|
[2] |
Flange
|
|
