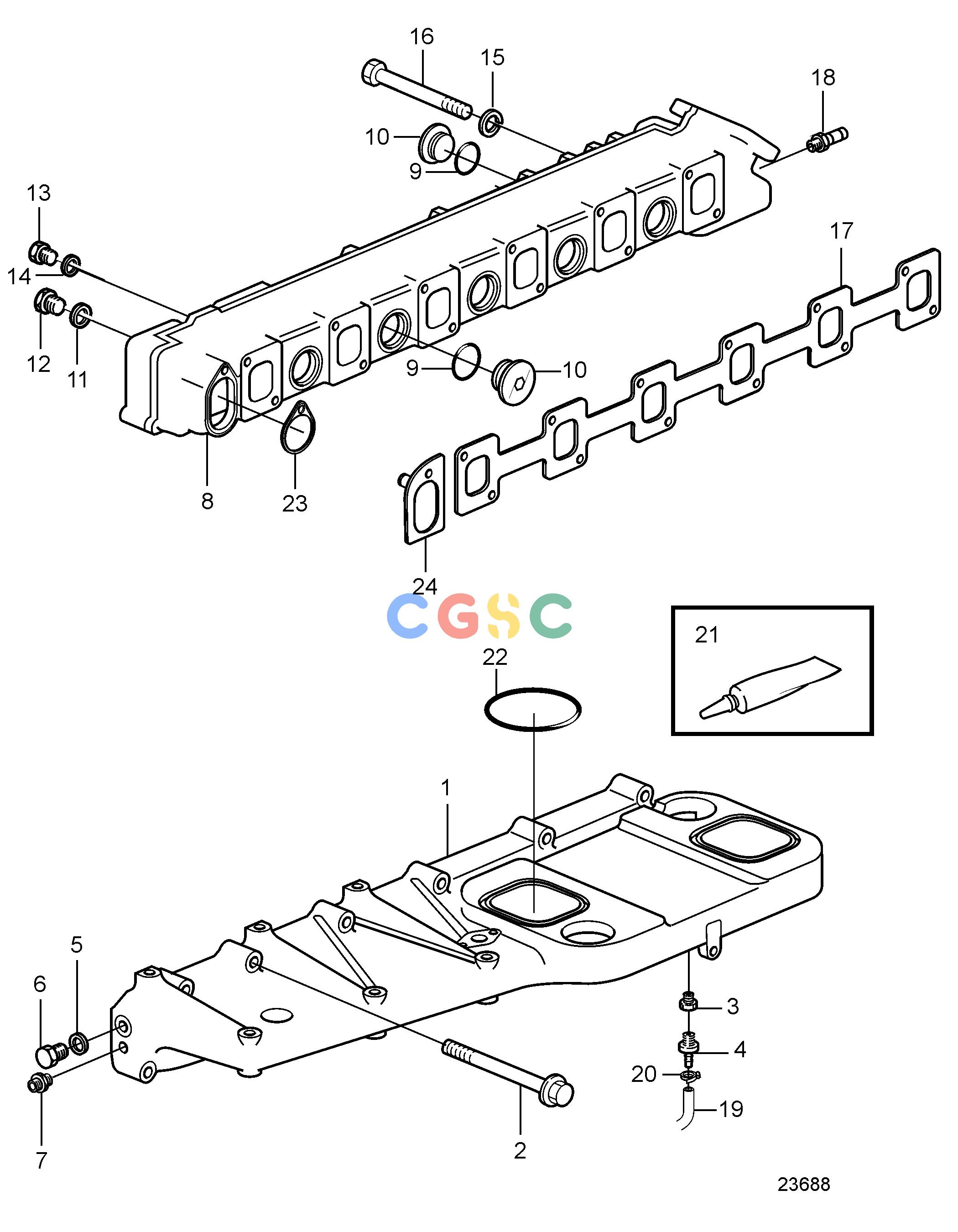

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MIntake and Exhaust SystemInduction and Exhaust Manifold, Earlier ProductionEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
396 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3827639
|
[1] |
Inlet manifold
|
|
| 2. |
965180
|
[12] |
Flange screw
|
|
| 3. |
862109
|
[1] |
Nipple
|
|
| 4. |
180003
|
[1] |
Nipple
|
|
| 5. |
907132
|
[1] |
Gasket
|
|
| 6. |
960628
|
[1] |
Plug
|
|
| 7. |
954378
|
[1] |
Nipple, turbo pressure sender
|
|
| 8. |
3838864
|
[1] |
Exhaust pipe
|
|
| 9. |
469328
|
[13] |
Gasket
|
|
| 10. |
467367
|
[13] |
Plug
|
|
| 11. |
943908
|
[3] |
Gasket
|
|
| 12. |
914392
|
[3] |
Plug
|
|
| 13. |
960632
|
[1] |
Plug
|
|
| 14. |
11998
|
[1] |
Gasket
|
|
| 15. |
941908
|
[12] |
Spring washer
|
|
| 16. |
963261
|
[12] |
Hexagon screw
|
L=160mm
|
| 16. |
981377
|
[4] |
Flange screw, bracket oil filter
|
L=165mm
|
| 17. |
3838953
|
[1] |
Gasket
|
|
| 18. |
949918
|
[1] |
Shut-off cock
|
|
| 19. |
942700
|
[1] |
Hose
|
L=600mm
|
| 20. |
961662
|
[1] |
Hose clamp
|
|
| 21. |
1161231
|
[1] |
Sealant
|
304ml
|
| 21. |
1161277
|
[1] |
Sealant
|
10g
|
| 22. |
976063
|
[2] |
O-ring
|
|
| 23. |
3838342
|
[1] |
Gasket
|
|
| 24. |
3884762
|
[1] |
Gasket
|
|
