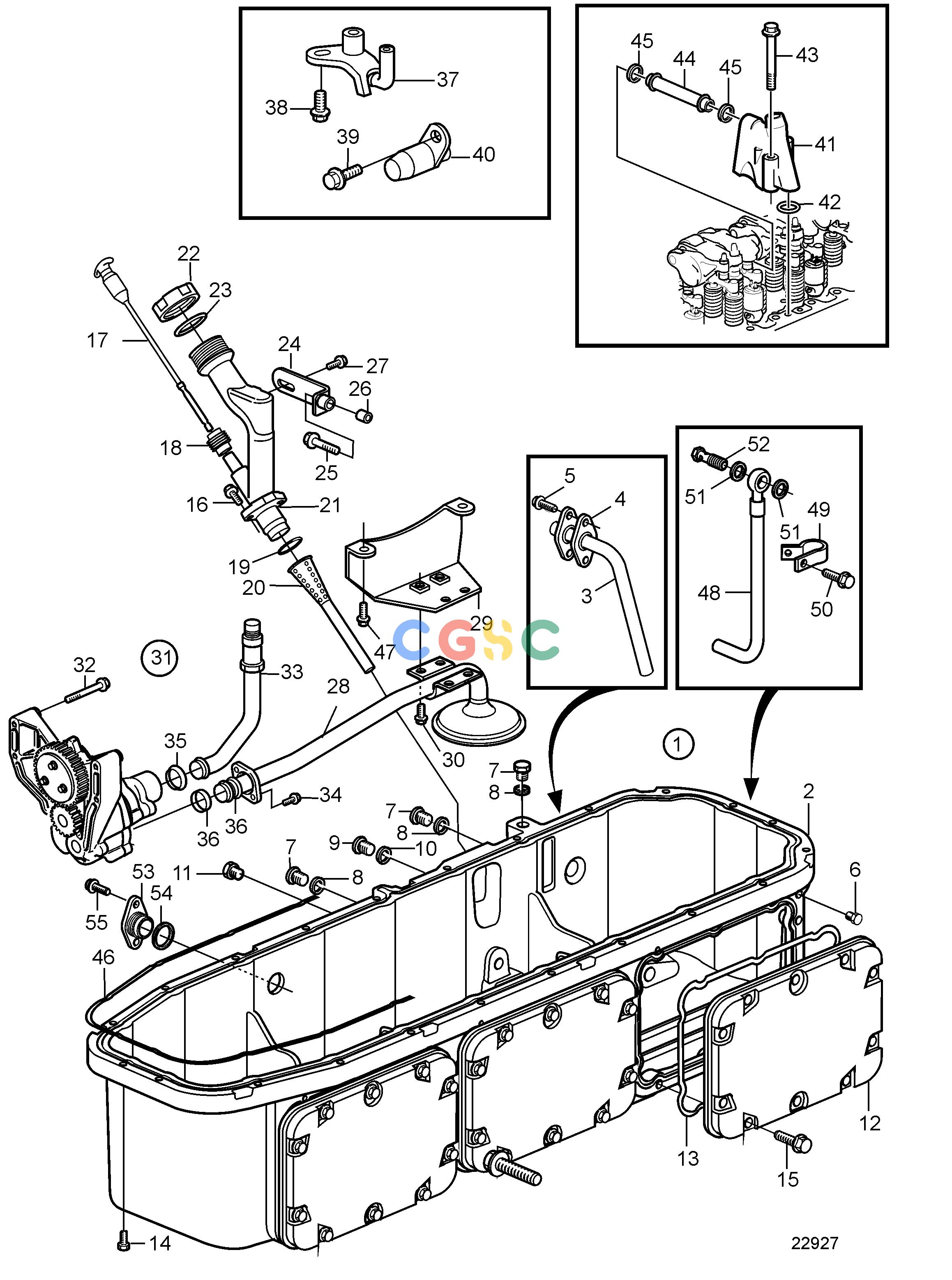

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MLubricating SystemLubricating System with Deep Oil SumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1032 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
3588622
|
[1] |
Oil pan
|
|
| 3. |
896775
|
[1] |
Pipe
|
|
| 4. |
862602
|
[1] |
Gasket
|
|
| 5. |
945444
|
[2] |
Flange screw
|
|
| 6. |
479979
|
[1] |
Plug
|
|
| 7. |
960632
|
[3] |
Plug
|
|
| 8. |
11998
|
[3] |
Gasket
|
|
| 9. |
949175
|
[1] |
Magnetic plug
|
|
| 10. |
949329
|
[1] |
Gasket
|
|
| 11. |
479956
|
[1] |
Plug
|
|
| 12. |
866355
|
[3] |
Hatch
|
|
| 13. |
968204
|
[3] |
O-ring
|
|
| 14. |
947760
|
[22] |
Flange screw
|
|
| 15. |
946671
|
[30] |
Flange screw
|
|
| 16. |
946173
|
[2] |
Flange screw
|
|
| 17. |
3829996
|
[1] |
Dipstick
|
|
| 18. |
421723
|
[1] |
Sealing plug
|
|
| 19. |
20555696
|
[1] |
Sealing ring
|
|
| 20. |
3829805
|
[1] |
Guide
|
|
| 21. |
3827164
|
[1] |
Oil filler pipe
|
|
| 22. |
20807510
|
[1] |
Oil filler cap
|
|
| 23. |
20365079
|
[1] |
Rubber washer
|
|
| 24. |
3827163
|
[1] |
Anchorage
|
|
| 25. |
947760
|
[1] |
Flange screw
|
|
| 26. |
843075
|
[1] |
Spacer sleeve
|
|
| 27. |
946440
|
[1] |
Flange screw
|
|
| 28. |
3808862
|
[1] |
Suction pipe
|
|
| 29. |
3829655
|
[1] |
Bracket
|
Without ladder frame.
|
| 30. |
946440
|
[2] |
Flange screw
|
|
| 31. |
8170261
|
[1] |
Oil pump
|
(3165222)
|
| 31. |
|
|
|
|
| 32. |
965181
|
[4] |
Flange screw
|
|
| 33. |
20411298
|
[1] |
Pressure pipe
|
|
| 34. |
965181
|
[2] |
Flange screw
|
|
| 35. |
8170558
|
[1] |
Sealing ring
|
|
| 36. |
470383
|
[2] |
Sealing ring
|
|
| 37. |
3155151
|
[6] |
Piston cooling jet
|
|
| 38. |
966378
|
[6] |
Flange screw
|
|
| 39. |
471586
|
[1] |
Screw
|
|
| 40. |
8170583
|
[1] |
Nozzle
|
|
| 41. |
8170702
|
[1] |
Spacer
|
|
| 42. |
1636309
|
[1] |
Sealing ring
|
|
| 43. |
3165142
|
[2] |
Flange screw
|
|
| 44. |
8193971
|
[1] |
Outlet pipe
|
|
| 45. |
1677370
|
[2] |
Sealing ring
|
|
| 46. |
3817972
|
[1] |
Rubber moulding
|
L=3000mm
|
| 47. |
|
|
|
|
| 48. |
3829529
|
[1] |
Tube
|
|
| 49. |
18387
|
[1] |
Clamp
|
|
| 50. |
946440
|
[1] |
Flange screw
|
|
| 51. |
969011
|
[2] |
Gasket
|
|
| 52. |
25167
|
[1] |
Hollow screw
|
|
| 53. |
3964803
|
[1] |
Plug
|
|
| 54. |
20555696
|
[1] |
Sealing ring
|
|
| 55. |
946440
|
[2] |
Flange screw
|
|
