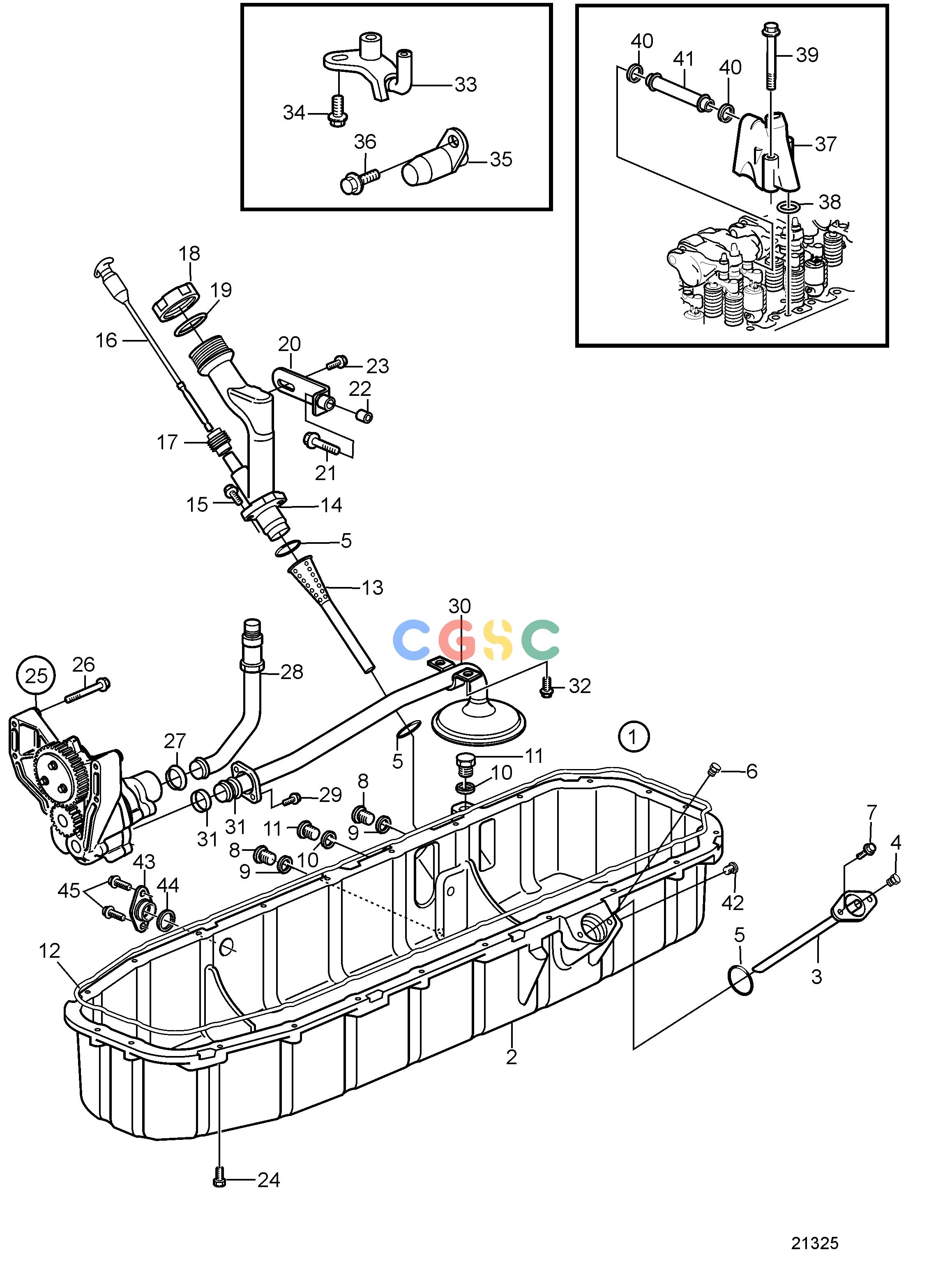

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MLubricating SystemLubricating System with Shallow Oil SumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
458 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3843922
|
[1] |
Oil pan
|
|
| 2. |
|
|
|
|
| 3. |
3827314
|
[1] |
Oil draining pipe
|
|
| 4. |
479979
|
[1] |
Plug
|
|
| 5. |
20555696
|
[3] |
Sealing ring
|
|
| 6. |
479979
|
[1] |
Plug
|
|
| 7. |
946173
|
[2] |
Flange screw
|
|
| 8. |
949175
|
[2] |
Magnetic plug
|
|
| 9. |
18813
|
[2] |
Gasket
|
|
| 10. |
11998
|
[2] |
Gasket
|
|
| 11. |
960632
|
[2] |
Plug
|
|
| 12. |
3817972
|
[1] |
Rubber moulding
|
L=3000mm
|
| 13. |
3829805
|
[1] |
Guide
|
|
| 14. |
3827164
|
[1] |
Oil filler pipe
|
|
| 15. |
946173
|
[2] |
Flange screw
|
|
| 16. |
865918
|
[1] |
Dipstick
|
|
| 17. |
421723
|
[1] |
Sealing plug
|
|
| 18. |
20807510
|
[1] |
Oil filler cap
|
|
| 19. |
1675841
|
[1] |
Gasket
|
|
| 20. |
3827163
|
[1] |
Anchorage
|
|
| 21. |
947760
|
[1] |
Flange screw
|
|
| 22. |
843075
|
[1] |
Spacer sleeve
|
Used when oil filler is mounted on left side.
|
| 23. |
946440
|
[1] |
Flange screw
|
|
| 24. |
947760
|
[24] |
Flange screw
|
|
| 25. |
8170261
|
[1] |
Oil pump
|
(3165222)
|
| 25. |
|
|
|
|
| 26. |
965181
|
[4] |
Flange screw
|
|
| 27. |
8170558
|
[1] |
Sealing ring
|
|
| 28. |
8170430
|
[1] |
Pressure pipe
|
|
| 29. |
965181
|
[2] |
Flange screw
|
|
| 30. |
3808920
|
[1] |
Suction pipe
|
|
| 31. |
470383
|
[2] |
Sealing ring
|
|
| 32. |
946440
|
[2] |
Flange screw
|
|
| 33. |
3155151
|
[6] |
Piston cooling jet
|
|
| 34. |
966378
|
[6] |
Flange screw
|
|
| 35. |
8170583
|
[1] |
Nozzle, transmission
|
|
| 36. |
471586
|
[1] |
Screw
|
|
| 37. |
8170702
|
[1] |
Spacer
|
|
| 38. |
1636309
|
[1] |
Sealing ring
|
|
| 39. |
3165142
|
[2] |
Flange screw
|
|
| 40. |
1677370
|
[2] |
Sealing ring
|
|
| 41. |
8193971
|
[1] |
Outlet pipe
|
|
| 42. |
479979
|
[1] |
Plug
|
|
| 43. |
3964803
|
[1] |
Plug
|
|
| 44. |
20555696
|
[1] |
Sealing ring
|
|
| 45. |
946440
|
[2] |
Flange screw
|
|
