沃尔沃零件查询EC280 EngineSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
509 次

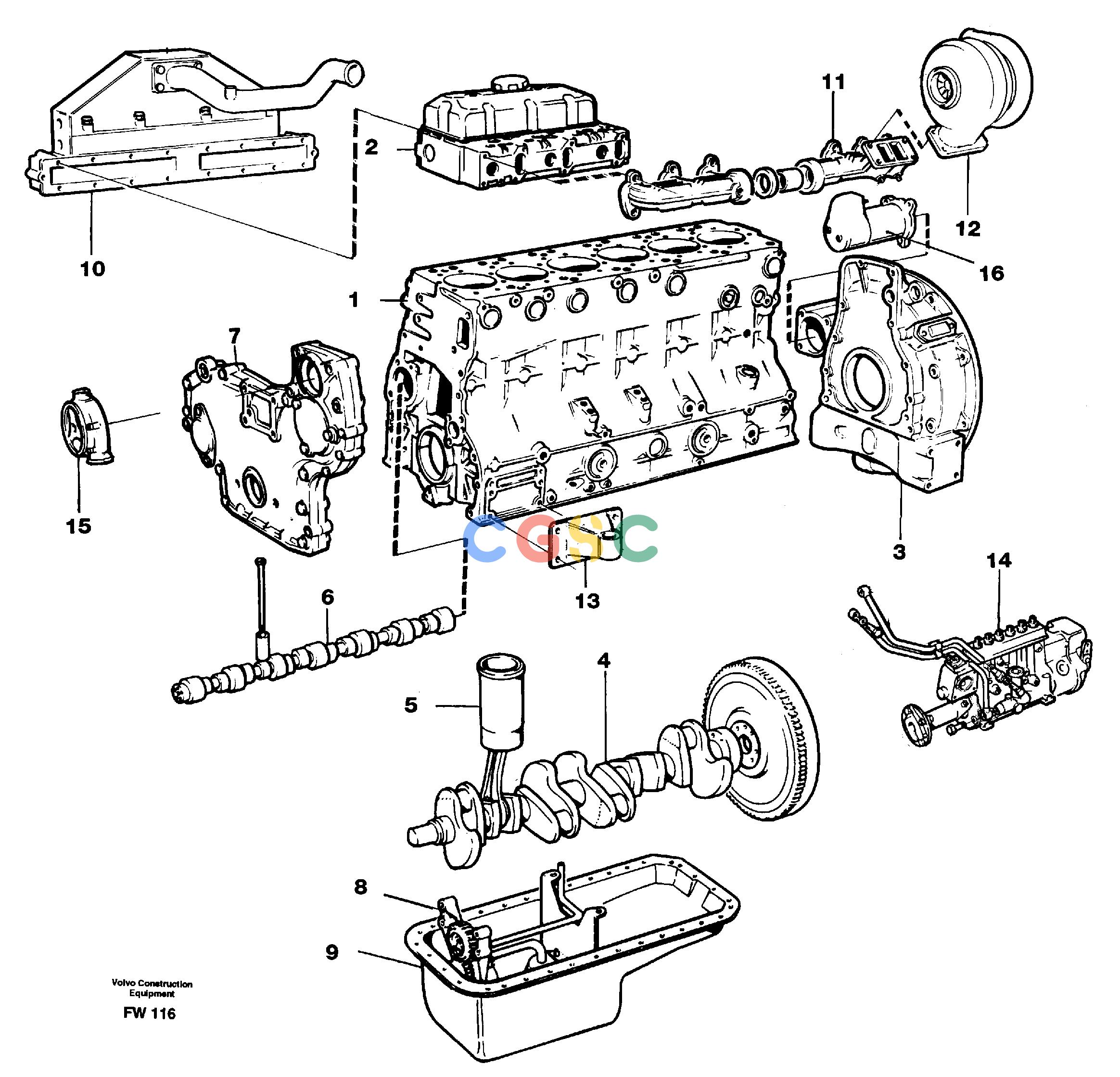

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE15004160
|
[1] |
Engine
|
TD73KHE
|
| 1. |
|
[1] |
Cylinder block
|
|
| 2. |
|
[1] |
Cylinder head
|
|
| 3. |
|
[1] |
Flywheel housing
|
|
| 4. |
|
[1] |
Crank mechanism
|
|
| 5. |
|
[1] |
Cyl liner and piston
|
|
| 6. |
|
[1] |
Camshaft
|
|
| 7. |
|
[1] |
Timing gear casing
|
|
| 8. |
|
[1] |
Lubricating system
|
|
| 9. |
|
[1] |
Oil sump
|
|
| 10. |
|
[1] |
Inlet pipe
|
|
| 11. |
|
[1] |
Exhaust pipe
|
|
| 12. |
|
[1] |
Turbocharger
|
|
| 13. |
|
[1] |
Engine mounting
|
|
| 14. |
|
[1] |
Fuel system
|
SEE GROUP 230
|
| 15. |
|
[1] |
Cooling system
|
SEE GROUP 260
|
| 16. |
|
[1] |
Starter motor
|
|
