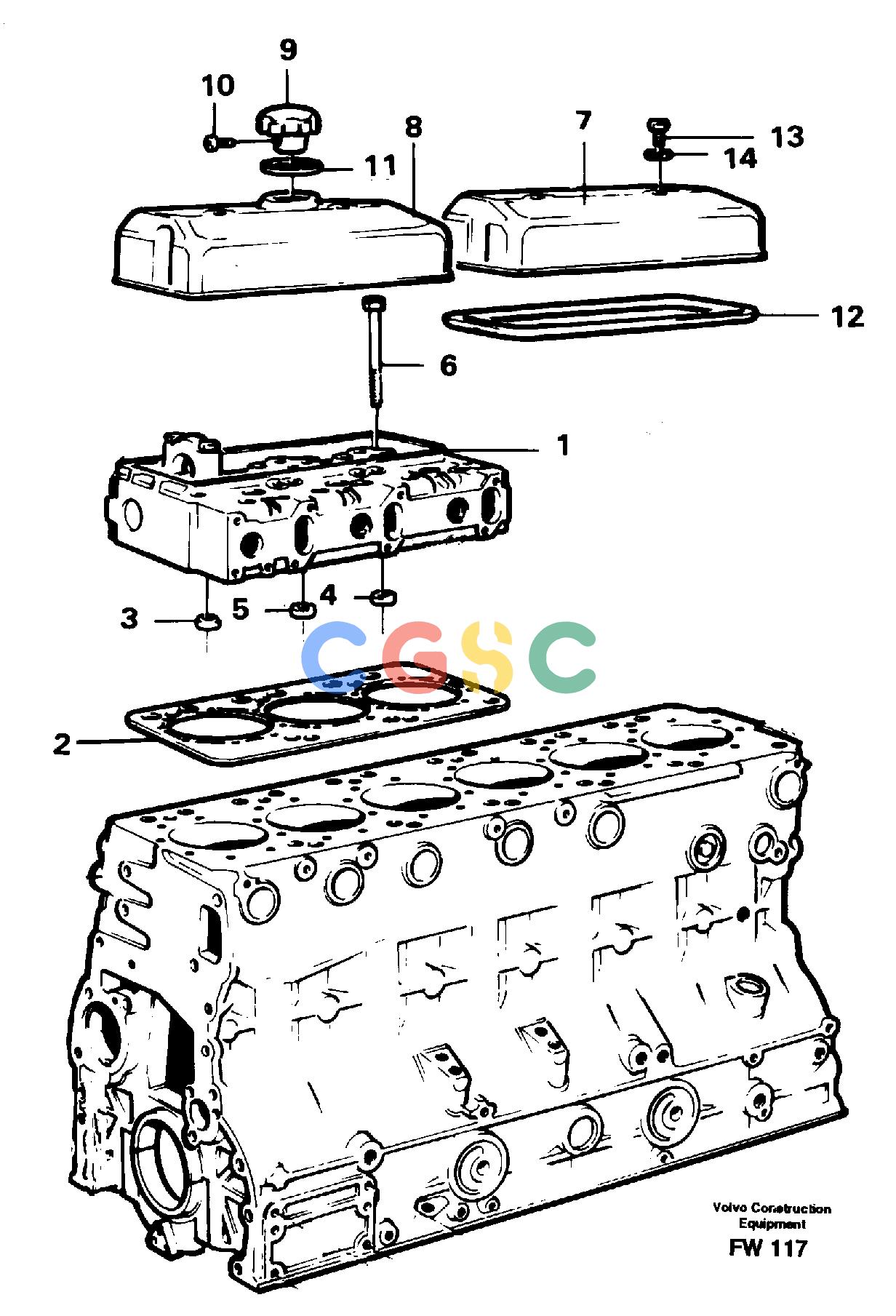

沃尔沃零件查询EC280 Cylinder head with fitting partsSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
735 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[2] |
Cylinder head
|
|
| |
VOE276816
|
[2] |
Gasket kit
|
|
| 2. |
|
[2] |
Gasket
|
|
| 3. |
VOE465784
|
[12] |
Seal
|
|
| 4. |
VOE466421
|
[16] |
Sealing ring
|
|
| 5. |
VOE422413
|
[2] |
Sealing ring
|
|
| 6. |
VOE471481
|
[40] |
Screw
|
|
| 7. |
VOE471426
|
[1] |
Valve cover
|
|
| 8. |
VOE471813
|
[1] |
Valve cover
|
|
| 9. |
VOE421753
|
[1] |
Filler cap
|
|
| 10. |
VOE955126
|
[1] |
Cross recessed screw
|
|
| 11. |
VOE1275379
|
[1] |
Gasket
|
|
| 12. |
VOE471520
|
[2] |
Gasket
|
|
| 13. |
VOE465961
|
[4] |
Cap nut
|
|
| 14. |
VOE471856
|
[4] |
Sealing ring
|
|
