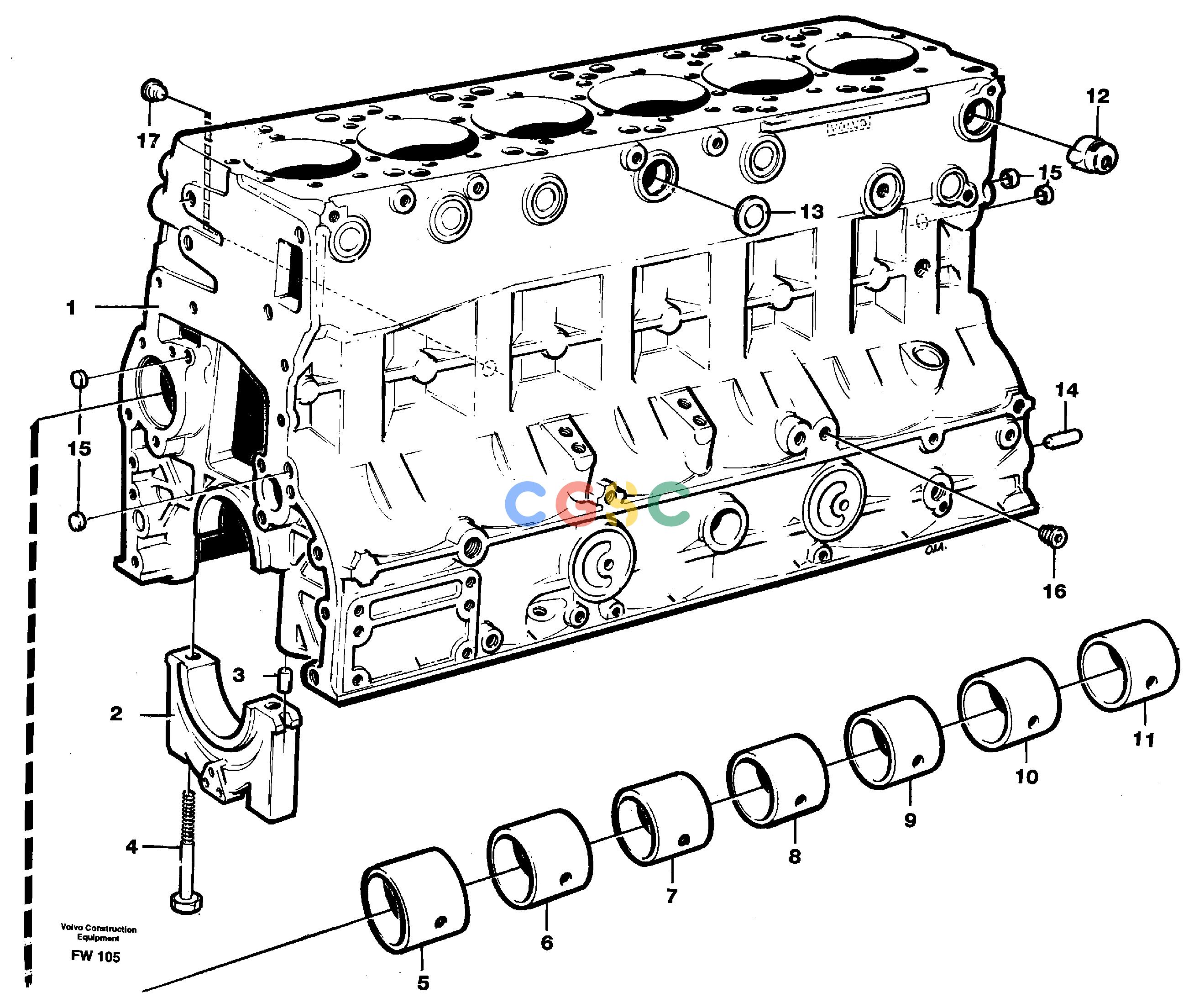

沃尔沃零件查询EC280 Cylinder blockSER NO 1001-977990-8192730NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
514 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE477990
|
[1] |
Cylinder block
|
ENG - 97292
|
| |
VOE8192730
|
|
Cylinder block
|
ENG 97293 -
|
| 1. |
VOE477991
|
[1] |
Cylinder block
|
|
| |
VOE8192731
|
|
Cylinder block
|
|
| 2. |
VOE471935
|
[1] |
Cap
|
MARKED: 1
|
| |
VOE471416
|
[1] |
Cap
|
MARKED: 4
|
| |
VOE471415
|
[5] |
Cap
|
MARKED: 2,3,5,6,7
|
| |
VOE8192740
|
|
Cap
|
|
| |
VOE8192741
|
|
Cap
|
|
| |
VOE8192742
|
|
Cap
|
|
| 3. |
VOE422426
|
[1] |
Pin
|
|
| 4. |
VOE465899
|
[14] |
Screw
|
|
| |
VOE8192738
|
|
Screw
|
|
| 5. |
VOE422076
|
[1] |
Bushing
|
|
| 6. |
VOE422077
|
[1] |
Bushing
|
|
| 7. |
VOE422078
|
[1] |
Bushing
|
|
| |
VOE8192676
|
|
Bushing
|
|
| 8. |
VOE11000014
|
[1] |
Bushing
|
|
| |
VOE8192677
|
|
Bushing
|
|
| 9. |
VOE422080
|
[1] |
Bushing
|
|
| |
VOE8192678
|
|
Bushing
|
|
| 10. |
VOE422081
|
[1] |
Bushing
|
|
| |
VOE8192679
|
|
Bushing
|
|
| 11. |
VOE422082
|
[1] |
Bushing
|
|
| 12. |
VOE421154
|
[6] |
Nozzle
|
|
| 13. |
VOE13968955
|
[6] |
Expansion plug
|
|
| 14. |
VOE191171
|
[2] |
Pin
|
|
| 15. |
VOE955082
|
[4] |
Cap plug
|
|
| 16. |
VOE968145
|
[1] |
Plug
|
|
| 17. |
VOE422369
|
[7] |
Plug
|
|
