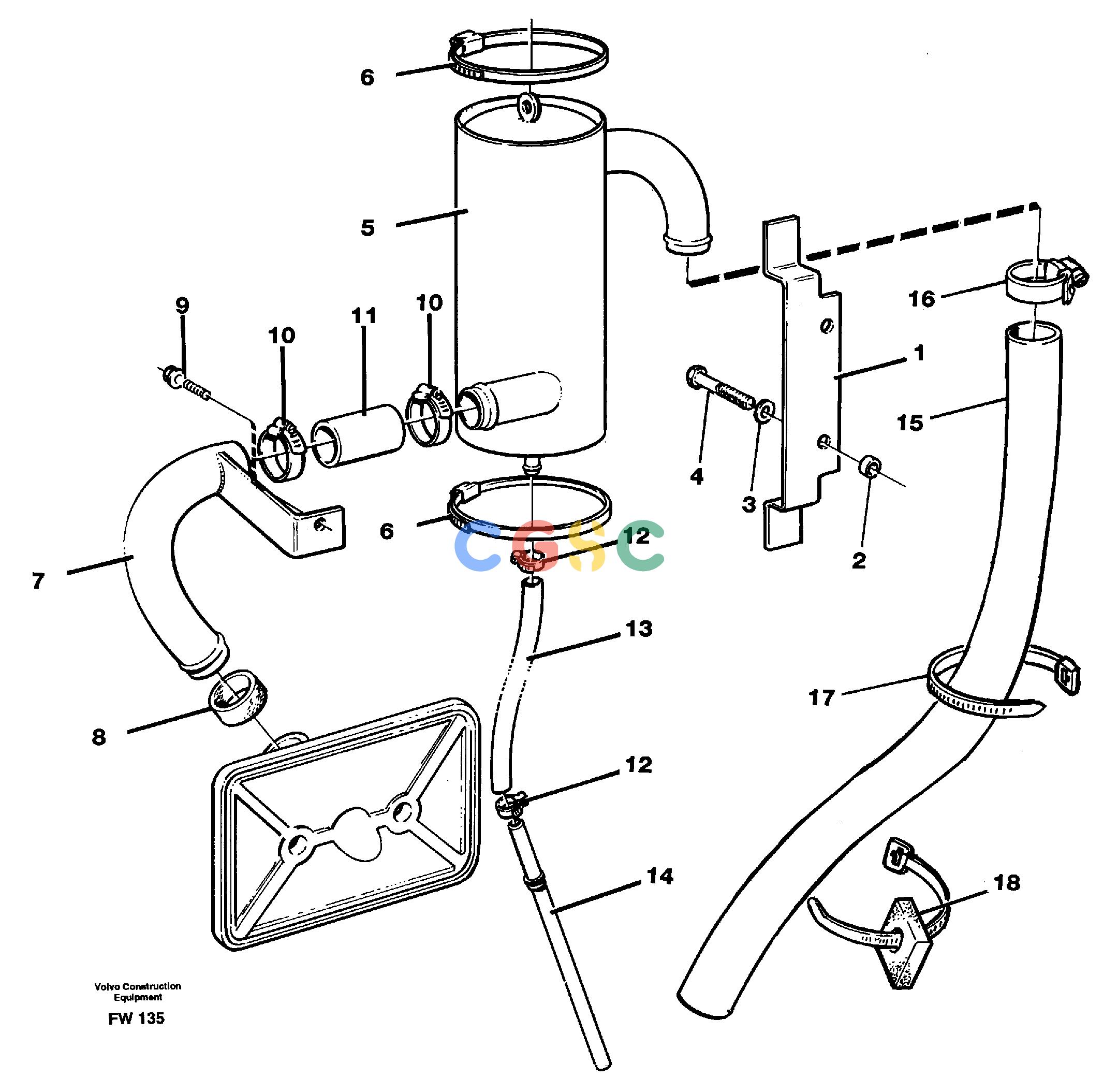

沃尔沃零件查询EC280 Crankcase ventilationSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
828 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11032648
|
[1] |
Bracket
|
|
| 2. |
VOE1560272
|
[2] |
Spacer
|
|
| 3. |
VOE13955894
|
[2] |
Washer
|
|
| 4. |
VOE60113250
|
[2] |
Flange screw
|
|
| 5. |
VOE11033878
|
[1] |
Oil trap
|
|
| 6. |
VOE943483
|
[2] |
Hose clamp
|
|
| 7. |
VOE11032748
|
[1] |
Breather pipe
|
|
| 8. |
VOE421158
|
[1] |
Sealing ring
|
|
| 9. |
VOE946440
|
[1] |
Flange screw
|
|
| 10. |
VOE943476
|
[2] |
Hose clamp
|
|
| 11. |
VOE11032676
|
[1] |
Hose
|
|
| 12. |
VOE943470
|
[2] |
Hose clamp
|
|
| 13. |
VOE983342
|
[REQ] |
Hose
|
L = 400
|
| 14. |
VOE11032677
|
[1] |
Pipe
|
|
| 15. |
VOE927661
|
[REQ] |
Rubber hose
|
L=950
|
| 16. |
VOE943475
|
[1] |
Hose clamp
|
|
| 17. |
VOE14213260
|
[3] |
Strip clamp
|
|
| 18. |
VOE1581464
|
[1] |
Washer
|
|
