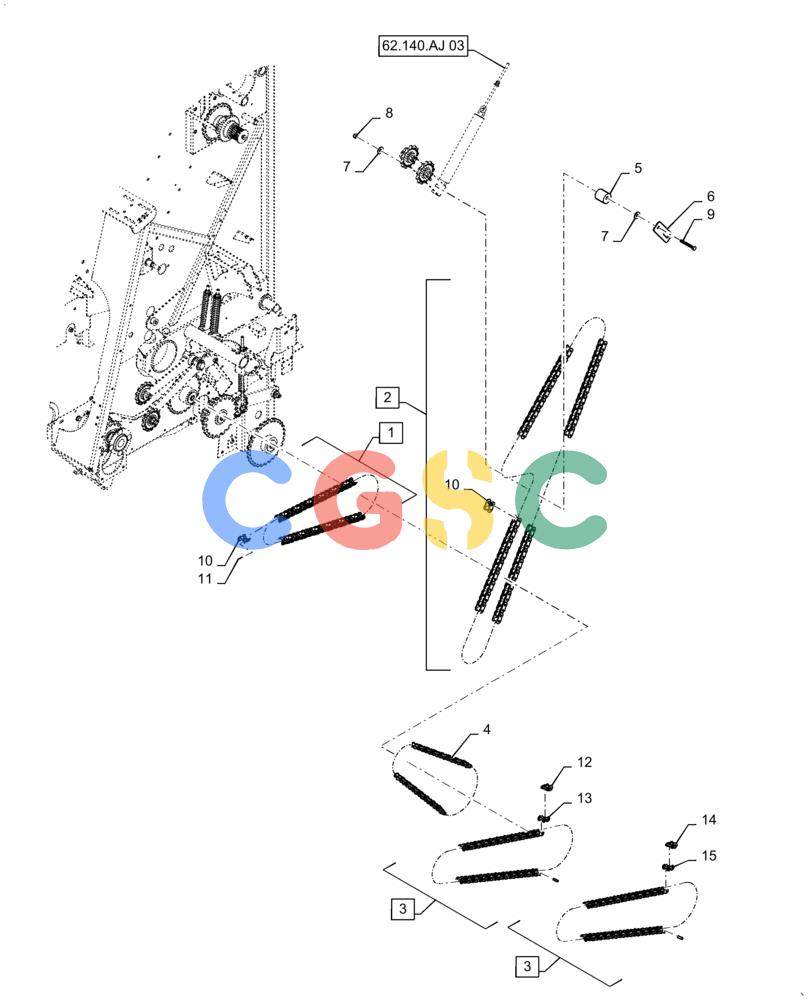

凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (62.140.AI[02]) - DRIVE, LH, UNDERSHOT ROTOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
463 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86611455
|
[1] |
CHAIN,80P, 67 Links x 25.4mm = 1701.8mm
|
NH
Incl 10, 11
|
| 2. |
9804060
|
[1] |
CHAIN,80, 158 Links x 25.4mm = 4013.2mm
|
NH
Apron Drive, Incl 10
|
| 3. |
86562829
|
[1] |
CHAIN,100, 67 Links x 31.75mm = 2127.25mm
|
NH
Incl 12, 13
|
| 3. |
47531220
|
[1] |
CHAIN,RC100HFP x 67 Total Pitches
|
NH
Incl 15, 16
|
| 4. |
86549269
|
[1] |
CHAIN,RC80, 64 Links x 25.4mm = 1625.6mm
|
PA
|
| 5. |
84271552
|
[2] |
IDLER,50.8mm OD x 56mm L
|
NH
|
| 6. |
84266904
|
[1] |
PLATE
|
NH
|
| 7. |
80700
|
[4] |
WASHER,0.56" ID x 1.38" OD x 0.11" Thk
|
NH
|
| 8. |
100038
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 9. |
86624981
|
[2] |
BOLT,Hex, M12 x 85mm, Cl 8.8
|
BRR
|
| 10. |
84356440
|
[1] |
LINK,25.4mm Pitch
|
NH
|
| 11. |
47435620
|
[1] |
LINK,24.399mm Pitch
|
NH
|
| 12. |
47435592
|
[1] |
CONNECTING LINK
|
NH
|
| 13. |
47435621
|
[1] |
CHAIN
|
NH
|
| 14. |
47531221
|
[1] |
LINK, CONNECTING,Master, RC100HFP
|
NH
|
| 15. |
47531222
|
[1] |
OFFSET LINK,RC100HFP
|
NH
|
