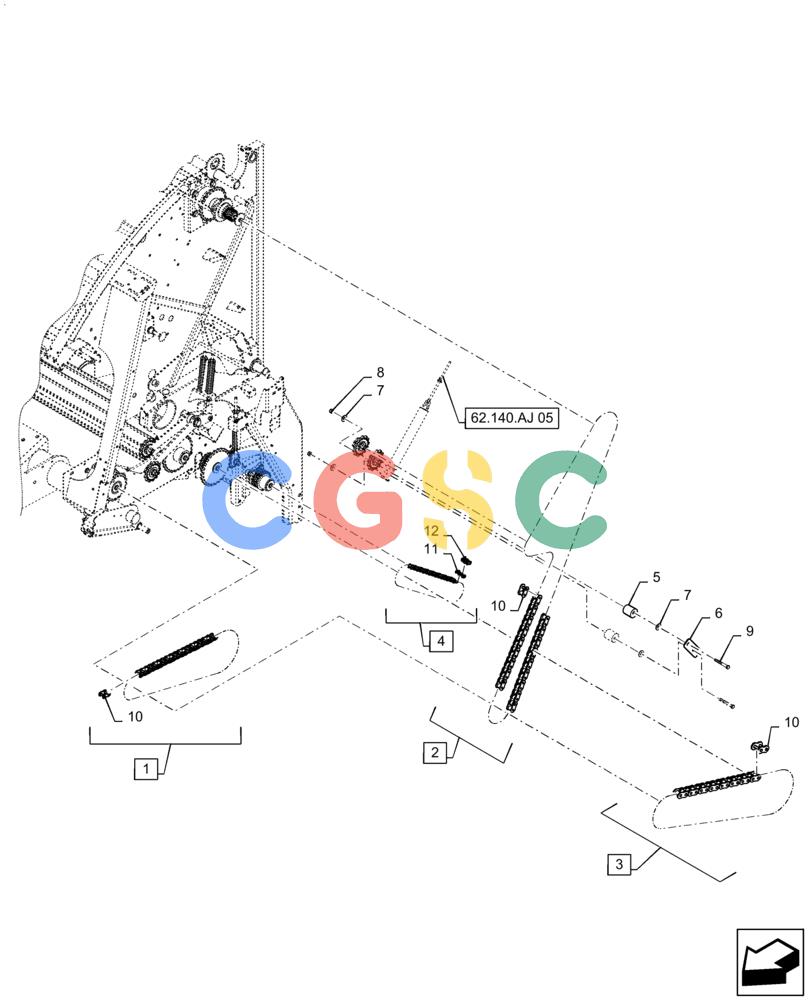

凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (62.140.AI[04]) - DRIVE CHAINS, LH, OVERSHOT FEEDER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
948 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86549269
|
[1] |
CHAIN,RC80, 64 Links x 25.4mm = 1625.6mm
|
PA
Incl 10
|
| 2. |
9804060
|
[1] |
CHAIN,80, 158 Links x 25.4mm = 4013.2mm
|
NH
Apron Drive, Incl 10
|
| 3. |
9804061
|
[1] |
CHAIN,80, 84 Links x 25.4mm = 2133.6mm
|
NH
Incl 10
|
| 4. |
84597734
|
[1] |
CHAIN,60H-2, 69 Links x 19.05mm = 1314.45mm L
|
NH
Incl 11, 12
|
| 5. |
84271552
|
[2] |
IDLER,50.8mm OD x 56mm L
|
NH
|
| 6. |
84266904
|
[1] |
PLATE
|
NH
|
| 7. |
80700
|
[4] |
WASHER,0.56" ID x 1.38" OD x 0.11" Thk
|
NH
|
| 8. |
100038
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 9. |
86508581
|
[2] |
BOLT,Hex, M12 x 90mm, Cl 8.8
|
NH
|
| 10. |
84356440
|
[3] |
LINK,25.4mm Pitch
|
NH
|
| 11. |
84605997
|
[1] |
LINK,RC60H-2, 19.1mm Pitch
|
NH
|
| 12. |
84605986
|
[1] |
OFFSET LINK,RC60H-2, 19.1mm Pitch
|
NH
|
