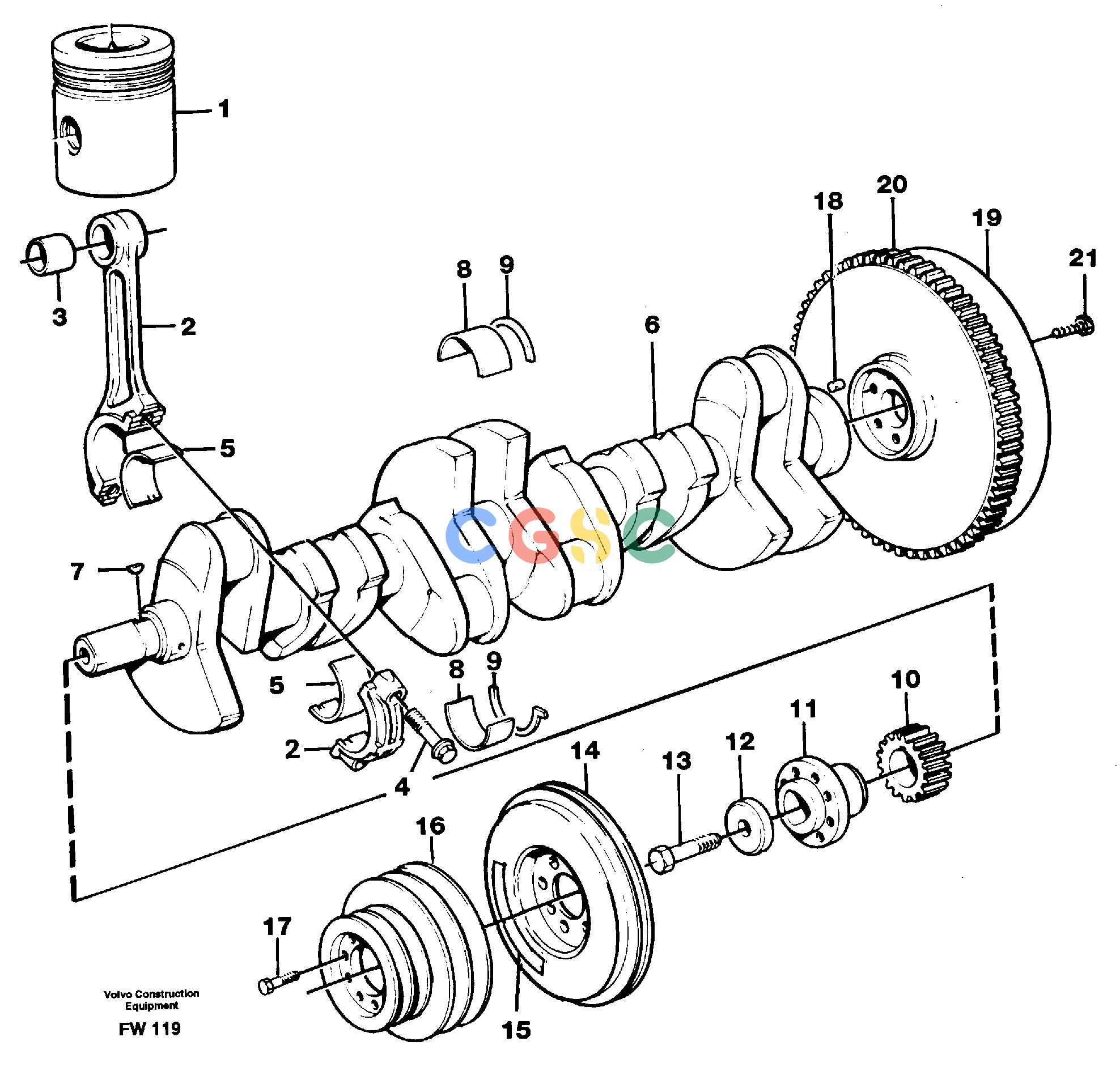

沃尔沃零件查询EC280 Crankshaft and related partsSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
561 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[6] |
Cylinder liner kit
|
|
| 2. |
VOE471523
|
[6] |
Connecting rod
|
|
| 3. |
VOE471364
|
[1] |
Bushing
|
|
| 4. |
VOE465815
|
[2] |
Screw
|
|
| 5. |
VOE270115
|
[6] |
Big End Brg Kit
|
STD
|
| |
VOE270116
|
[6] |
Big End Brg Kit
|
0,25 MM, U SZ
|
| |
VOE270117
|
[6] |
Big End Brg Kit
|
0,50 MM, U SZ
|
| |
VOE270118
|
[6] |
Big End Brg Kit
|
0,75 MM, U SZ
|
| |
VOE270119
|
[6] |
Big End Brg Kit
|
1,00 MM, U SZ
|
| 6. |
VOE24424609
|
[1] |
Crankshaft
|
ENG - 97292
|
| |
VOE24424609
|
[1] |
Crankshaft
|
ENG 97293 -
|
| 7. |
VOE422253
|
[1] |
Key
|
|
| 8. |
VOE270432
|
[7] |
Main bearing kit
|
STD D, ENG - 97292
|
| |
VOE270433
|
[7] |
Main bearing kit
|
0,25MM U SZ, ENG - 97292
|
| |
VOE270434
|
[7] |
Main bearing kit
|
0,50 MM U SZ, ENG - 97292
|
| |
VOE270435
|
[7] |
Main bearing kit
|
0,75 MM U SZ, ENG - 97292
|
| |
VOE270436
|
[7] |
Main bearing kit
|
1,00 MM U SZ, ENG - 97292
|
| |
VOE270437
|
[7] |
Main bearing kit
|
1,25 MM U SZ, ENG - 97292
|
| |
VOE276894
|
[7] |
Main bearing
|
STD, ENG 97293 -
|
| |
VOE276895
|
[7] |
Main bearing kit
|
0,254MM U SZ, ENG 97293 -
|
| |
VOE276896
|
[7] |
Main bearing kit
|
0,508MM U SZ, ENG 97293 -
|
| |
VOE276897
|
[7] |
Main bearing kit
|
0,792MM U SZ, ENG 97293 -
|
| |
VOE276898
|
[7] |
Main bearing kit
|
1,016MM U SZ, ENG 97293 -
|
| |
VOE276899
|
[7] |
Main bearing kit
|
1,270MM U SZ, ENG 97293 -
|
| 9. |
VOE276754
|
[1] |
Thrust washer
|
STD, ENG - 97292
|
| |
VOE276755
|
[1] |
Thrust washer
|
0.1 MM O SZ, ENG - 97292
(7276755)
|
| |
VOE276756
|
[1] |
Thrust washer
|
0,2 MM O SZ, ENG - 97292
|
| |
VOE276757
|
[1] |
Thrust washer
|
0,3 MM O SZ, ENG - 97292
|
| |
VOE276890
|
[1] |
Thrust washer
|
STD, ENG 97293 -
|
| |
VOE276891
|
[1] |
Thrust washer
|
0,1MM U SZ, ENG 97293 -
|
| |
VOE276892
|
[1] |
Thrust washer
|
0,2MM U SZ, ENG 97293 -
|
| |
VOE276893
|
[1] |
Thrust washer
|
0,3MM U SZ, ENG 97293 -
|
| 10. |
VOE471528
|
[1] |
Gear
|
|
| 11. |
VOE465779
|
[1] |
Hub
|
|
| 12. |
VOE420124
|
[1] |
Washer
|
|
| 13. |
VOE470366
|
[1] |
Screw
|
|
| 14. |
VOE421515
|
[1] |
Vibration damper
|
|
| 15. |
VOE467834
|
[1] |
Sign
|
|
| 16. |
VOE11032867
|
[1] |
Pulley
|
|
| 17. |
VOE471529
|
[8] |
Screw
|
L = 60MM
|
| 18. |
VOE950677
|
[1] |
Pin
|
|
| 19. |
VOE3825732
|
[1] |
Flywheel
|
|
| 20. |
VOE420314
|
[1] |
Gear ring
|
|
| 21. |
VOE465825
|
[9] |
Screw
|
|
