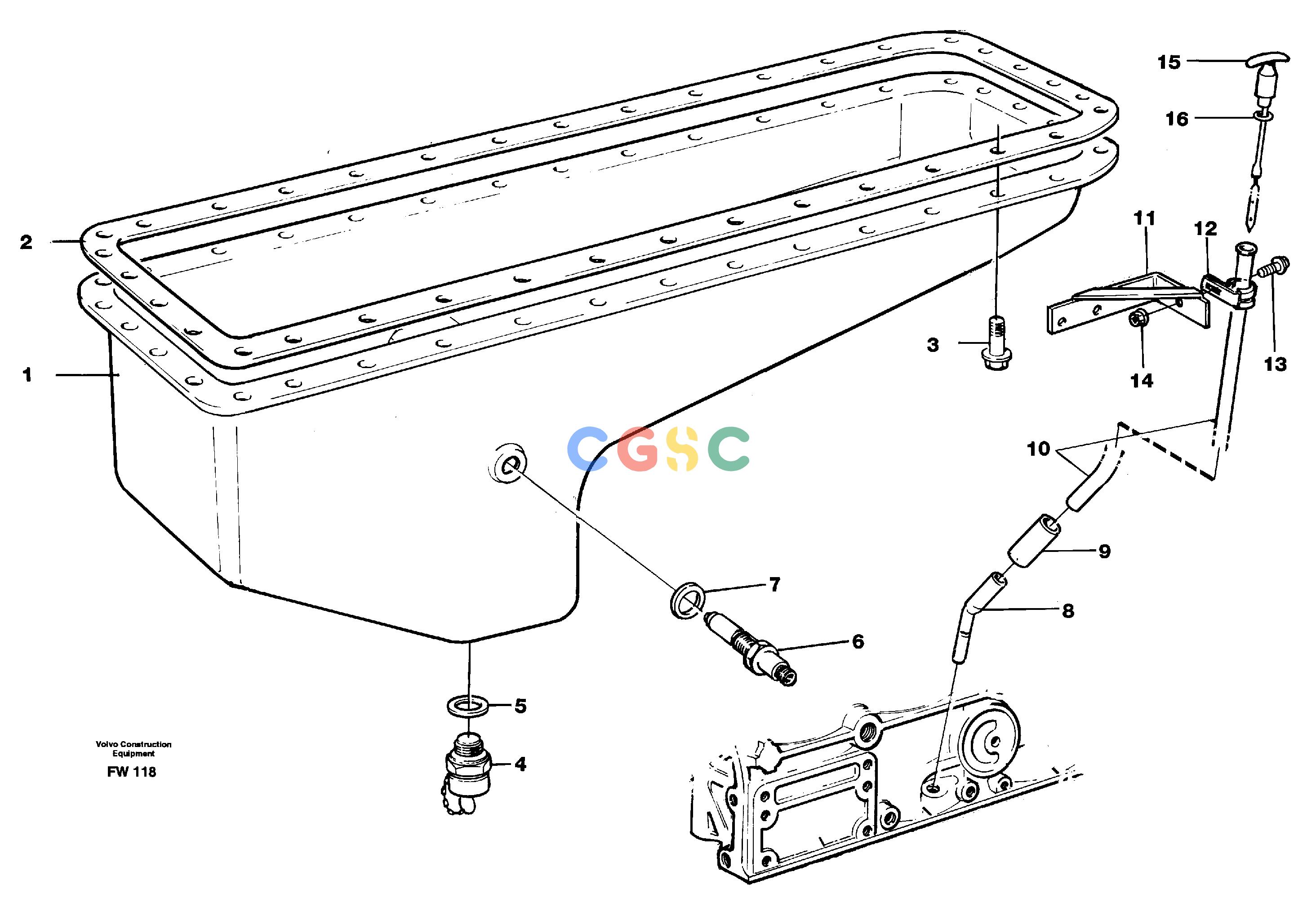

沃尔沃零件查询EC280 Oil sumpSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
653 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11030184
|
[1] |
Oil pan
|
|
| 2. |
VOE11030779
|
[1] |
Gasket
|
|
| 3. |
VOE946440
|
[36] |
Flange screw
|
|
| 4. |
VOE11054692
|
[1] |
Valve
|
|
| 5. |
VOE949329
|
[1] |
Gasket
|
|
| 6. |
VOE11715539
|
[1] |
Level guard
|
B41
|
| 7. |
VOE14042936
|
[1] |
Sealing washer
|
|
| 8. |
VOE11032727
|
[1] |
Pipe
|
|
| 9. |
VOE8149606
|
[1] |
Rubber hose
|
|
| 10. |
VOE11032720
|
[1] |
Pipe
|
|
| 11. |
VOE11032716
|
[1] |
Attachment
|
|
| 12. |
VOE952629
|
[1] |
Clamp
|
|
| 13. |
VOE13946544
|
[1] |
Screw
|
|
| 14. |
VOE13945407
|
[1] |
Nut
|
|
| 15. |
VOE11032721
|
[1] |
Dipstick
|
|
| 16. |
VOE421723
|
[1] |
Seal
|
|
