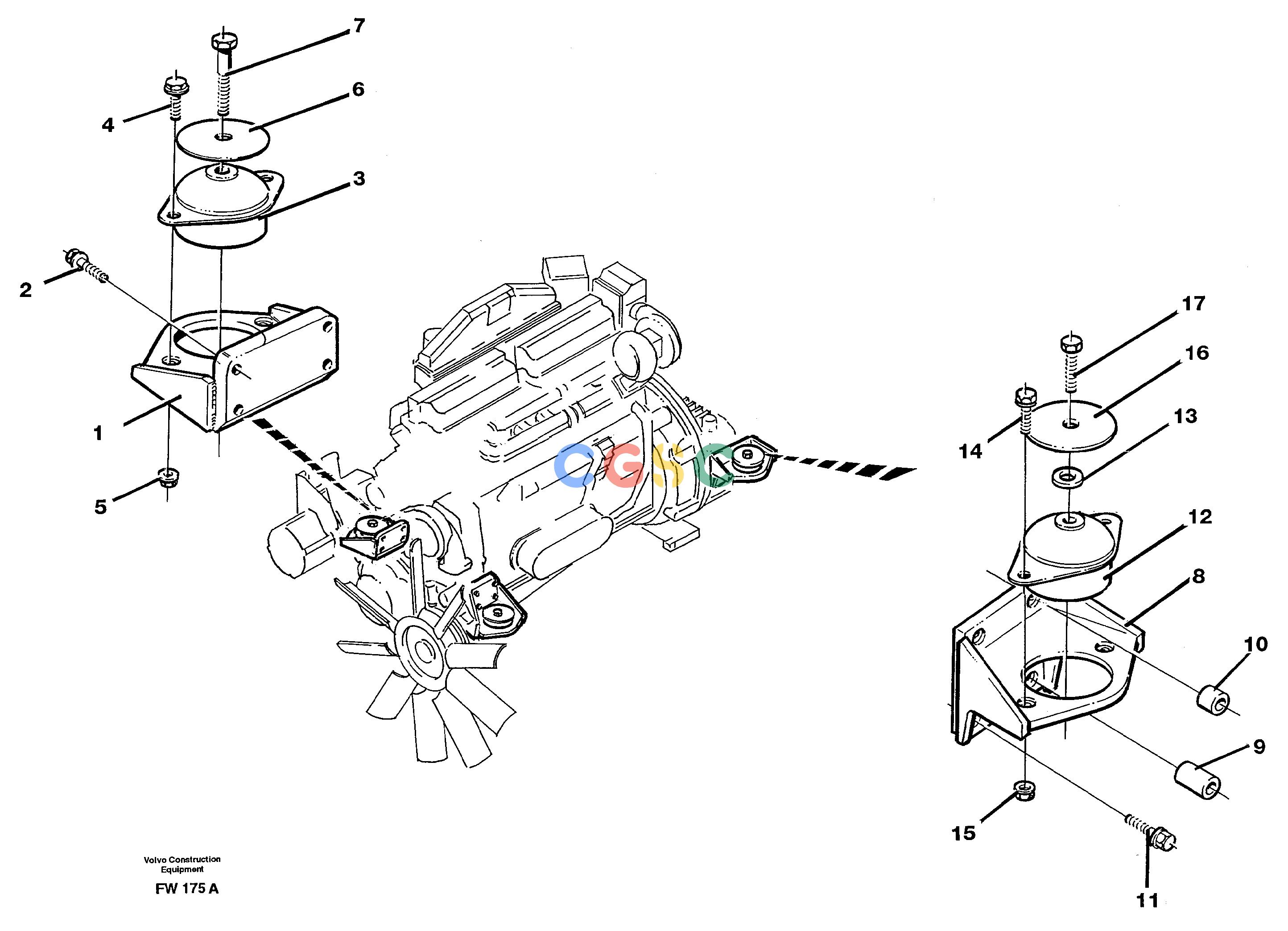

沃尔沃零件查询EC280 Engine mountingSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
762 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14344516
|
[2] |
Engine anchorage
|
|
| 2. |
VOE14310054
|
[8] |
Flg Lock Screw
|
|
| 3. |
VOE14343575
|
[2] |
Rubber cushion
|
|
| 4. |
VOE975110
|
[4] |
Flange screw
|
|
| 5. |
VOE969317
|
[4] |
Flange lock nut
|
|
| 6. |
VOE14342464
|
[2] |
Washer
|
|
| 7. |
VOE14310030
|
[2] |
Lock screw
|
|
| 8. |
VOE14344774
|
[2] |
Engine anchorage
|
|
| 9. |
VOE14344714
|
[2] |
Spacer
|
|
| 10. |
VOE14344713
|
[6] |
Spacer
|
|
| 11. |
VOE14310089
|
[8] |
Screw
|
|
| 12. |
VOE14343577
|
[2] |
Rubber cushion
|
|
| 13. |
VOE14343831
|
[REQ] |
Washer
|
|
| 14. |
VOE975110
|
[4] |
Flange screw
|
|
| 15. |
VOE969317
|
[4] |
Flange lock nut
|
|
| 16. |
VOE14342464
|
[2] |
Washer
|
|
| 17. |
VOE14310030
|
[2] |
Lock screw
|
|
