凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (62.140.AQ[04]) - VAR - 727159 - BALE TENSION TAKE UP ARM AND TWO SPRINGS, SINGLE HYD. CYLINDER, OVERSHOT FEEDER, IN CAB CONTROL, YFN188619 AND AFTER Case Agriculture_凯斯Case_工程机械

凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (62.140.AQ[04]) - VAR - 727159 - BALE TENSION TAKE UP ARM AND TWO SPRINGS, SINGLE HYD. CYLINDER, OVERSHOT FEEDER, IN CAB CONTROL, YFN188619 AND AFTER Case Agriculture

广数供应链运营团队, 14 02月, 2025，浏览： 816 次

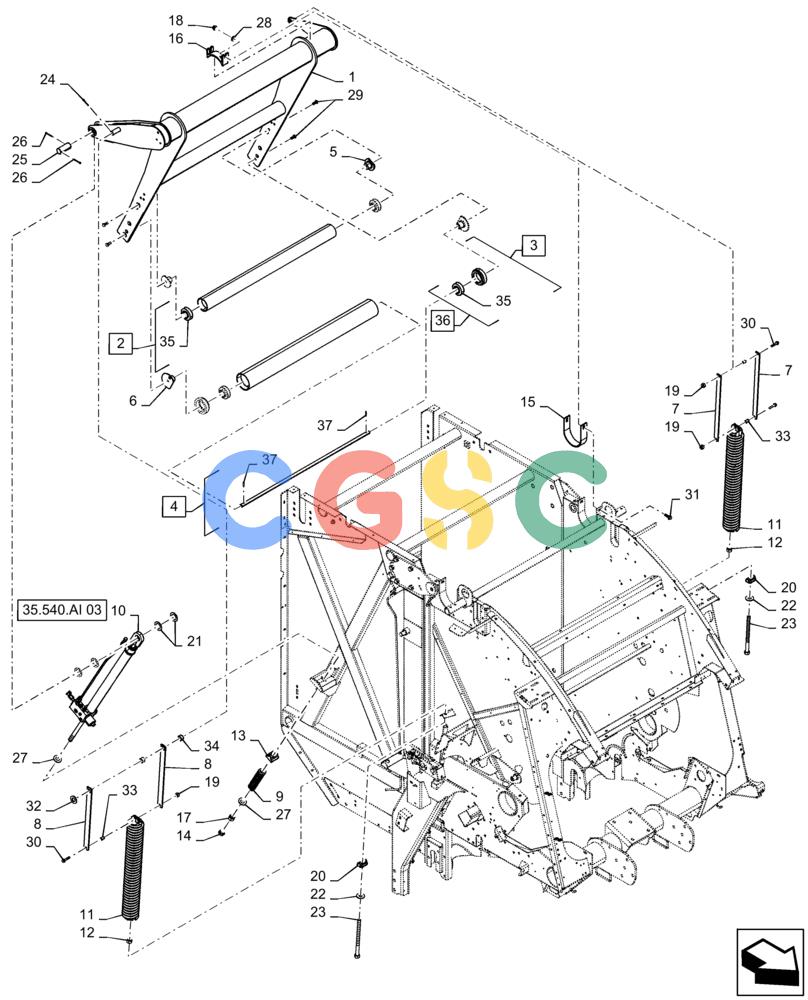

Pos.	Part No	Qty	Parts name	Comments
1.	47689488	[1]	ARM	NH Take Up
2.	84356720	[1]	ROLL,88.9mm OD x 1142mm L	PLO Front Serpentine, Incl 35
3.	84601406	[1]	ROLL	PLO Rear Serpentine, Incl 36
4.	9823372	[1]	SHAFT,1135mm L	NH Incl 37
5.	87654791	[2]	SUPPORT	PLO
6.	87654792	[2]	SUPPORT	PLO
7.	86978164	[2]	LINK,520mm L	NH
8.	86637229	[2]	LINK,489mm L	NH
9.	87655350	[1]	SPRING,Compression, 1.81" OD x 9.44" L	PLO Superseded by part number: 9846489
10.	0C	[1]	ORDER COMPONENTS	NH SINGLE HYD. CYLINDER, OVERSHOT FEEDER, IN CAB CONTROL - VAR 727159
11.	87654704	[2]	SPRING	PLO
12.	280954	[2]	NUT,3/4"-10, G5	NH
13.	226131	[1]	PIVOT	NH Superseded by part number: 87654703
14.	87314	[1]	JAM NUT,Jam, 7/8"-9, G2	NH
15.	9617265	[2]	BAND	NH
16.	86636552	[2]	BEARING CAP	NH
17.	9849647	[1]	NUT,7/8"-9, G5	NH
18.	86619803	[4]	FLANGE NUT	NH
19.	100037	[3]	LOCK NUT,M10 x 1.5, Cl 8	NH
20.	84407658	[2]	PIVOT	PLO
21.	28581	[4]	WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk	NH Superseded by part number: 86611730
22.	86511191	[2]	WASHER,0.81" ID x 2" OD x 0.15" Thk	NH
23.	633038	[2]	THREADED ROD,3/4" - 10 x 11-1/2" L	NH
24.	87399	[1]	COTTER PIN,1/2 x 3 Bolt	GI
25.	86637228	[1]	PIN,38.1mm OD x 91.5mm L	NH
26.	87400	[2]	COTTER PIN,3/16" x 2"	WIN
27.	257163	[2]	WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk	NH
28.	87364	[4]	WASHER,0.53" ID x 1.06" OD x 0.1" Thk	NH
29.	86627635	[4]	BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9	NH
30.	9804264	[3]	FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8	NH Superseded by part number: 16587625
31.	9804268	[4]	BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd	NH
32.	87367	[1]	WASHER,1.06" ID x 2" OD x 0.13" Thk	PA
33.	768624	[3]	SPACER	PA Superseded by part number: 86636659
34.	32406	[2]	SPACER,25.9mm ID x 31.5mm OD x 16.8mm L	NH
35.	84259867	[2]	BALL BEARING,38.1mm ID x 80mm OD x 22mm W	PLO
36.	47504953	[2]	BEARING HOUSING,73mm ID x 106.1mm OD x 30mm Thk	NH Incl 35
37.	130045	[2]	PIN,5mm OD x 26mm L, Slotted	NH
