凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (62.140.AQ[05]) - VAR - 726815, 727098 - BALE TENSION TAKE UP ARM AND TWO SPRINGS WITH LOOP ROLL, DUAL HYD. CYLINDERS, YFN188618 AND PRIOR Case Agriculture_凯斯Case_工程机械

凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (62.140.AQ[05]) - VAR - 726815, 727098 - BALE TENSION TAKE UP ARM AND TWO SPRINGS WITH LOOP ROLL, DUAL HYD. CYLINDERS, YFN188618 AND PRIOR Case Agriculture

广数供应链运营团队, 14 02月, 2025，浏览： 329 次

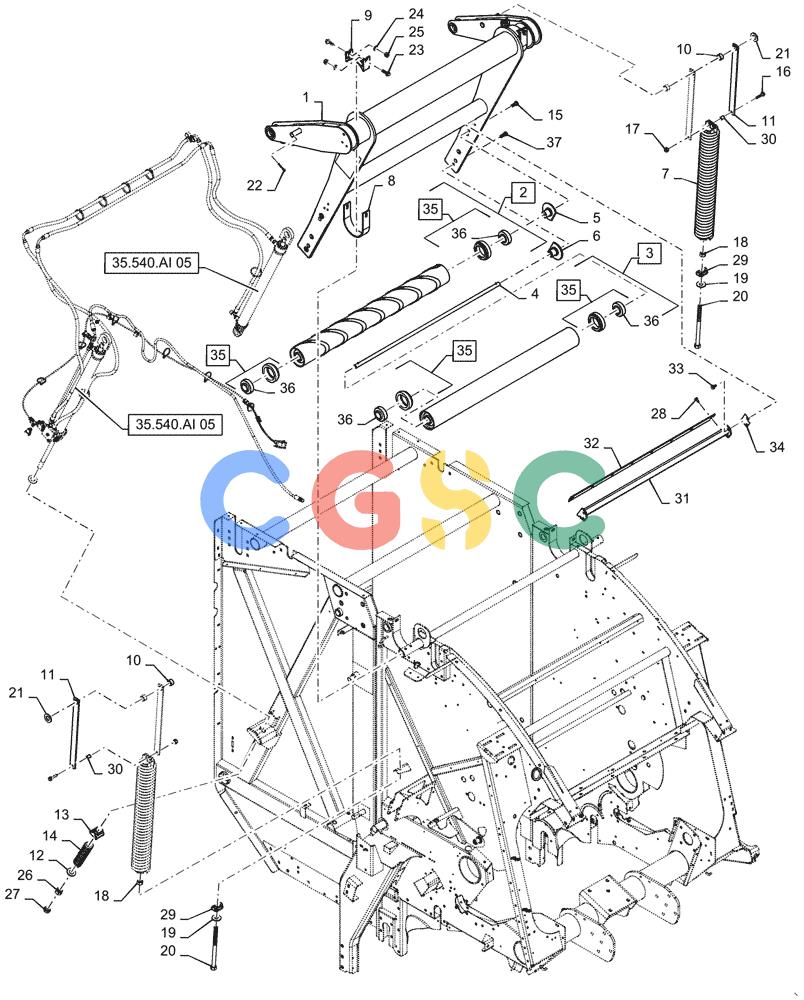

Pos.	Part No	Qty	Parts name	Comments
1.	47689494	[1]	ARM	NH Take Up
2.	47512225	[1]	ROLL	PLO Front Serpentine, Loop, Incl 35 Superseded by part number: 47512226
3.	84601406	[1]	ROLL	PLO Rear Serpentine, Incl 35
4.	9823372	[1]	SHAFT,1135mm L	NH
5.	86501067	[2]	SUPPORT	NH
6.	86516322	[2]	SUPPORT	NH Superseded by part number: 87654792
7.	87654704	[2]	SPRING	PLO
8.	9617265	[2]	BAND	NH
9.	9617266	[2]	BEARING CAP,145.6 mm OD	PA Superseded by part number: 86636552
10.	32406	[4]	SPACER,25.9mm ID x 31.5mm OD x 16.8mm L	NH
11.	86517077	[4]	CONNECTING LINK	PA Superseded by part number: 86637229
12.	257163	[2]	WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk	NH
13.	226131	[1]	PIVOT	NH Superseded by part number: 87654703
14.	9846489	[1]	SPRING,Compression, 1.81" OD x 9.44" L	NH
15.	86627635	[2]	BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9	NH
16.	9804264	[2]	FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8	NH Superseded by part number: 16587625
17.	100037	[2]	LOCK NUT,M10 x 1.5, Cl 8	NH
18.	280954	[2]	NUT,3/4"-10, G5	NH
19.	86511191	[2]	WASHER,0.81" ID x 2" OD x 0.15" Thk	NH
20.	633038	[2]	THREADED ROD,3/4" - 10 x 11-1/2" L	NH
21.	87367	[4]	WASHER,1.06" ID x 2" OD x 0.13" Thk	PA
22.	87399	[3]	COTTER PIN,1/2 x 3 Bolt	GI
23.	9804268	[4]	BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd	NH
24.	87364	[4]	WASHER,0.53" ID x 1.06" OD x 0.1" Thk	NH
25.	100038	[4]	NUT,M12 x 1.75, Cl 8	NH
26.	9849647	[1]	NUT,7/8"-9, G5	NH
27.	87314	[1]	JAM NUT,Jam, 7/8"-9, G2	NH
28.	9804258	[10]	BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8	NH
29.	625098	[2]	PIVOT	NH
30.	768624	[2]	SPACER	PA Superseded by part number: 86636659
31.	87040645	[1]	ANGLE	PA
32.	9845575	[1]	SCRAPER BLADE	NH
33.	86050286	[4]	FLANGE BOLT,M10 x 20mm, Cl 8.8	NH
34.	47527692	[4]	SHIM,54mm OD x 0.4mm Thk	PLO
35.	47504953	[4]	BEARING HOUSING,73mm ID x 106.1mm OD x 30mm Thk	NH Incl 36
36.	84259867	[4]	BALL BEARING,38.1mm ID x 80mm OD x 22mm W	PLO
37.	47945176	[2]	BOLT	PLO
