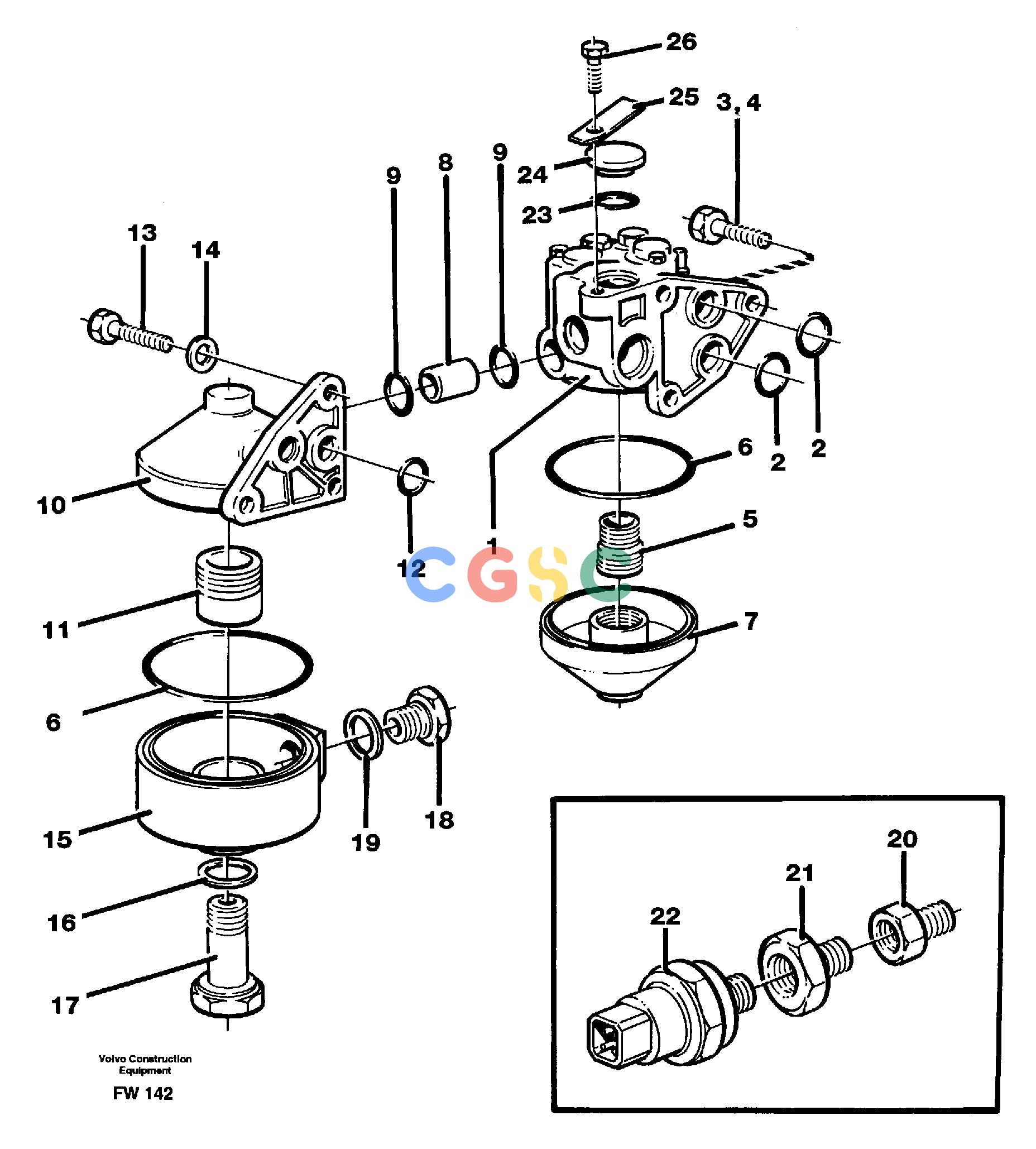

沃尔沃零件查询EC280 Filter housing with fitting partsSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
469 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11030601
|
[1] |
Housing
|
|
| 2. |
VOE13949656
|
[2] |
O-ring
|
19.2x3MM
|
| |
VOE13949722
|
[1] |
O-ring
|
36,2x3MM
|
| 3. |
VOE946329
|
[2] |
Flange screw
|
|
| 4. |
VOE60113101
|
[1] |
Flange screw
|
|
| 5. |
|
[1] |
Nipple
|
|
| 6. |
VOE13948981
|
[2] |
O-ring
|
|
| 7. |
VOE3812509
|
[1] |
Casing
|
|
| 8. |
VOE471602
|
[1] |
Tube
|
|
| 9. |
VOE471956
|
[2] |
Sealing ring
|
|
| |
VOE11032628
|
[1] |
Housing
|
|
| 10. |
VOE471601
|
[1] |
Bracket
|
|
| 11. |
VOE11030997
|
[1] |
Nipple
|
|
| 12. |
VOE13949656
|
[2] |
O-ring
|
|
| 13. |
VOE946329
|
[3] |
Flange screw
|
|
| 14. |
VOE941908
|
[3] |
Spring washer
|
|
| 15. |
VOE11031906
|
[1] |
Cover
|
|
| 16. |
VOE11032095
|
[1] |
Gasket
|
|
| 17. |
VOE11030998
|
[1] |
Nipple
|
|
| 18. |
VOE11030999
|
[1] |
Nipple
|
|
| 19. |
VOE948885
|
[1] |
Plane gasket
|
|
| 20. |
VOE862109
|
[1] |
Nipple
|
|
| 21. |
VOE11030986
|
[1] |
Nipple
|
|
| 22. |
VOE3962893
|
[1] |
Sensor
|
B47
|
| 23. |
VOE22194880
|
[1] |
Sealing ring
|
|
| 24. |
VOE848319
|
[1] |
Plug
|
|
| 25. |
VOE848318
|
[1] |
Attachment
|
|
| 26. |
VOE946440
|
[1] |
Flange screw
|
|
