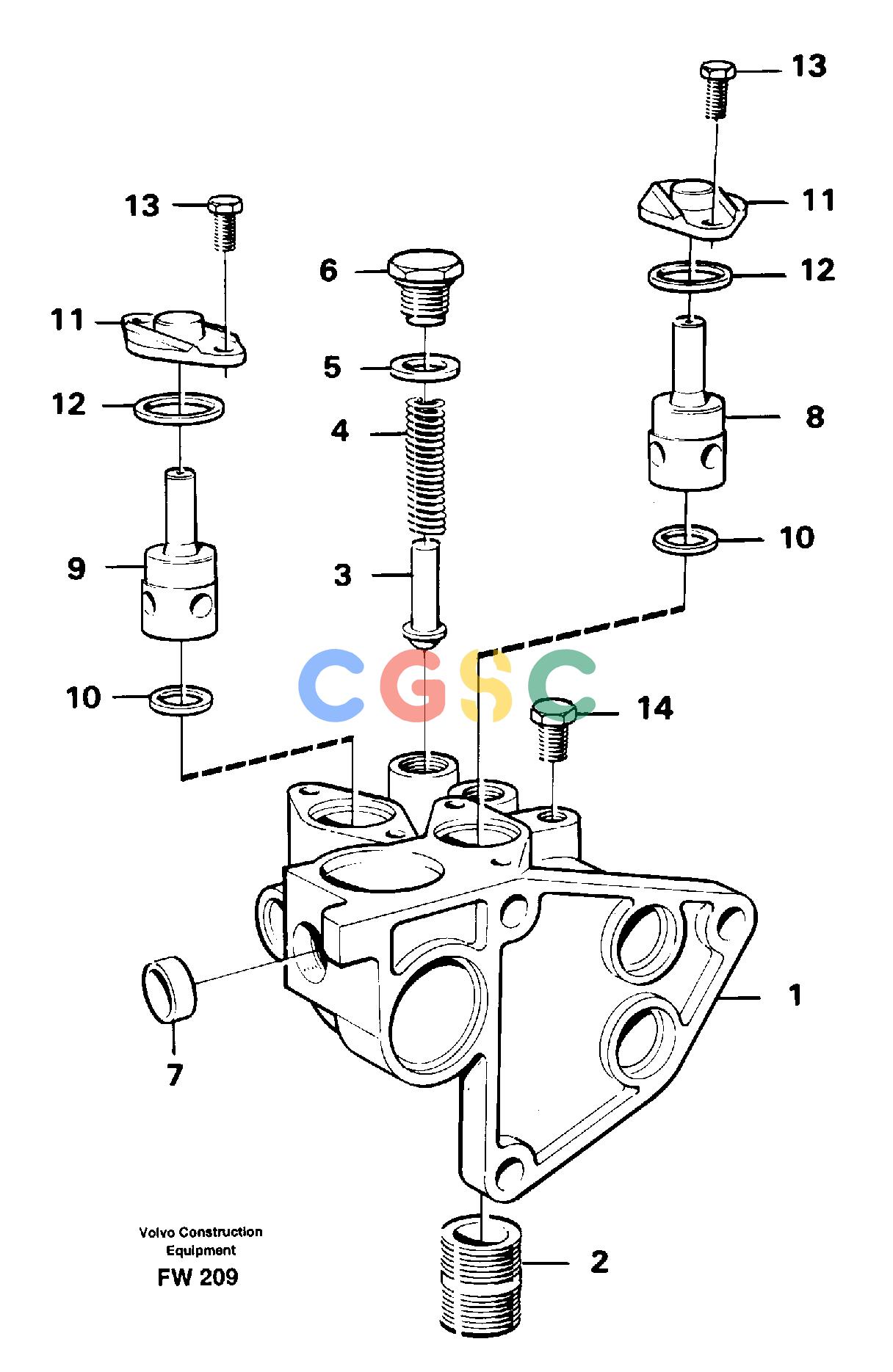

沃尔沃零件查询EC280 Housing, oil filterSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
782 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11030601
|
[1] |
Housing
|
|
| 1. |
VOE11030600
|
[1] |
Housing
|
|
| 2. |
VOE11030599
|
[1] |
Nipple
|
|
| 3. |
VOE471085
|
[1] |
Valve cone
|
|
| 4. |
VOE466653
|
[1] |
Compression spring
|
|
| 5. |
VOE13947627
|
[1] |
Plane gasket
|
|
| 6. |
VOE471598
|
[1] |
Plug
|
|
| 7. |
VOE13948811
|
[1] |
Cap plug
|
|
| 8. |
VOE471706
|
[1] |
Reduction valve
|
|
| 9. |
VOE471646
|
[1] |
Piston cooling valve
|
|
| 10. |
VOE469846
|
[2] |
Sealing ring
|
|
| 11. |
VOE471648
|
[2] |
Cover
|
|
| 12. |
VOE949659
|
[2] |
O-ring
|
|
| 13. |
VOE13946544
|
[4] |
Screw
|
|
| 14. |
VOE479979
|
[1] |
Plug
|
|
