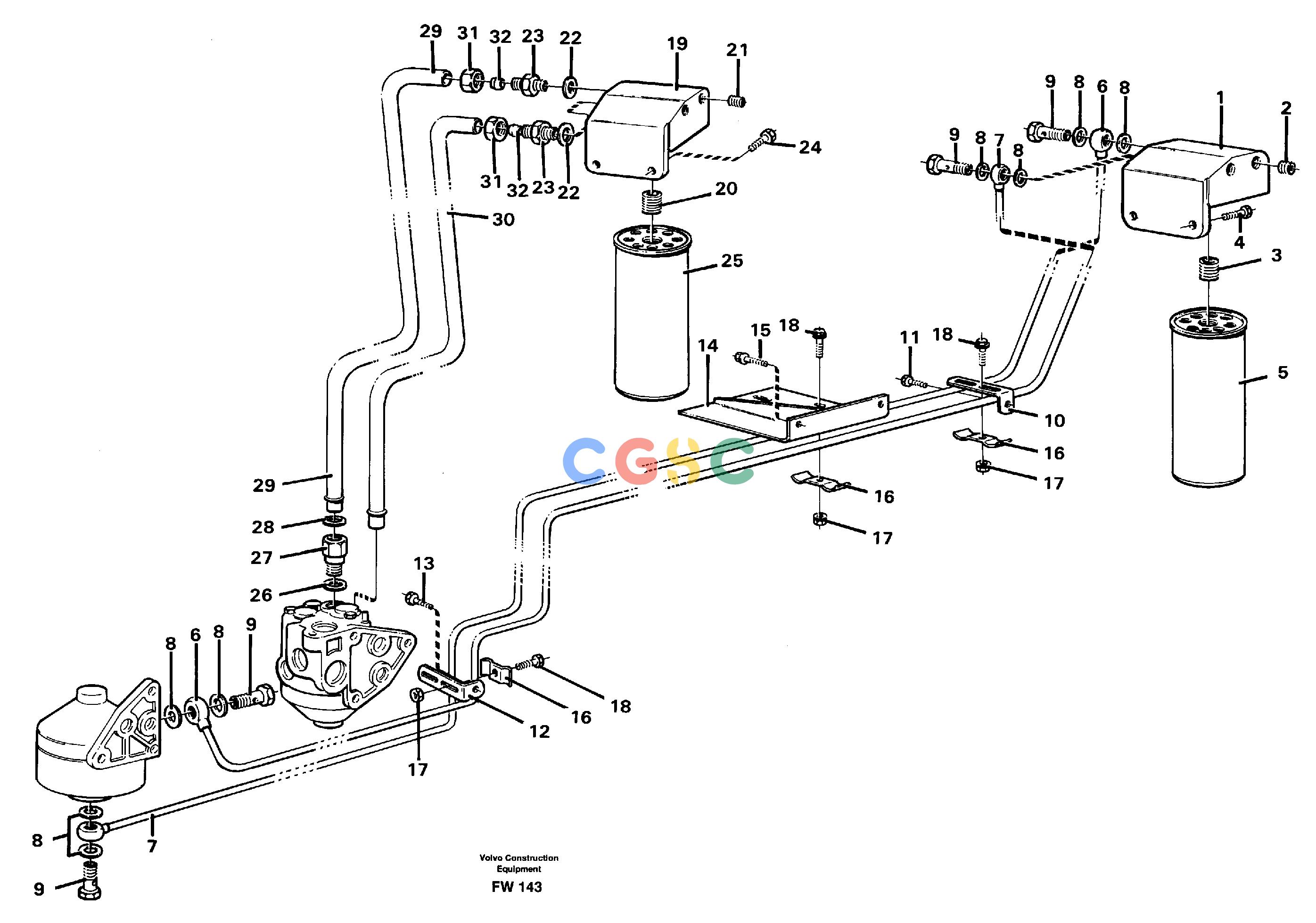

沃尔沃零件查询EC280 Oil filterSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
806 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11032629
|
[1] |
Filter housing
|
|
| 2. |
VOE13968062
|
[2] |
Plug
|
|
| 3. |
VOE469904
|
[1] |
Nipple
|
|
| 4. |
VOE946329
|
[2] |
Flange screw
|
M10x25MM
|
| 5. |
VOE21707132
|
[1] |
Oil filter
|
|
| 6. |
VOE11032806
|
[1] |
Oil pipe
|
|
| 7. |
VOE11032807
|
[1] |
Oil pipe
|
|
| 8. |
VOE13969011
|
[8] |
Gasket
|
|
| 9. |
VOE60113509
|
[4] |
Hollow screw
|
|
| 10. |
VOE13965556
|
[1] |
Bracket
|
|
| 11. |
VOE13946752
|
[1] |
Screw
|
|
| 12. |
VOE13965556
|
[1] |
Bracket
|
|
| |
VOE13955894
|
[2] |
Washer
|
|
| 13. |
VOE946440
|
[1] |
Flange screw
|
|
| 14. |
VOE11032649
|
[1] |
Bracket
|
|
| 15. |
VOE946440
|
[2] |
Flange screw
|
|
| 16. |
VOE404279
|
[3] |
Clamp
|
|
| 17. |
VOE13945407
|
[3] |
Nut
|
|
| 18. |
VOE13946934
|
[3] |
Screw
|
|
| |
|
|
None
|
|
| 19. |
VOE11032630
|
[1] |
Filter housing
|
|
| 20. |
VOE466623
|
[1] |
Nipple
|
|
| 21. |
VOE13968063
|
[1] |
Plug
|
|
| 22. |
VOE948885
|
[2] |
Plane gasket
|
|
| 23. |
VOE947554
|
[2] |
Nipple
|
|
| 24. |
VOE946329
|
[2] |
Flange screw
|
|
| 25. |
VOE21707134
|
[1] |
Oil Filter
|
|
| 26. |
VOE13947625
|
[1] |
Plane gasket
|
|
| 27. |
VOE11030597
|
[1] |
Nipple
|
|
| 28. |
VOE471956
|
[2] |
Sealing ring
|
|
| 29. |
VOE11032770
|
[1] |
Oil pipe
|
|
| 30. |
VOE11032771
|
[1] |
Oil pipe
|
|
| 31. |
VOE11306599
|
[2] |
Fitting nut
|
|
| 32. |
VOE980786
|
[2] |
Ferrule
|
|
