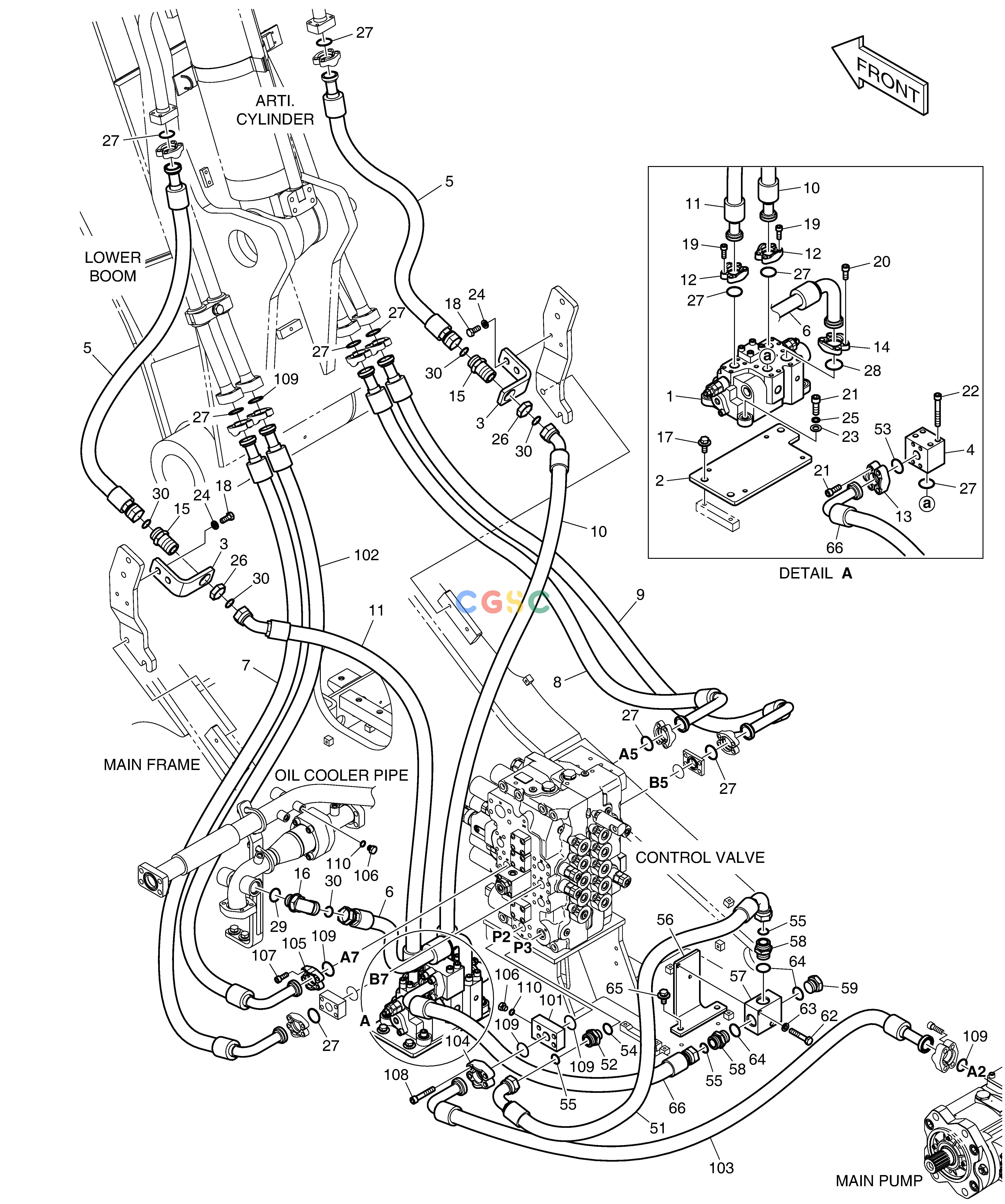

斗山零件查询MAIN PIPING - ARTI. BOOM DX300LC-5(S/N:1001~1057) Doosan parts catalog online

广数供应链运营团队, 14 02月, 2025，浏览： 826 次

Pos.	Part No	Qty	Parts name
-.	420212-08524	[-]
1.	K1033235A	[1]	VALVE;CONTROL
10.	DS2082047	[1]
101.	100201-00067B	[1]
102.	DS20401070	[1]
103.	DS20401336	[1]
104.	2181-9081	[2]	FLANGE;SPLIT
105.	2181-9083	[2]	FLANGE;SPLIT
106.	2181-1950D1	[2]	PLUG
107.	S2212266	[4]	BOLT
108.	S2216066	[4]	BOLT;SOCKET
109.	2180-1026D19	[5]	O-RING
11.	DS2082071	[1]
110.	S8000111	[2]	O-RING
12.	2181-9078	[4]	FLANGE;SPLIT
13.	2181-9081	[2]	FLANGE;SPLIT
14.	4215-1003D7	[2]	FLANGE;HALF
15.	181-00128D5	[2]
16.	2181-2815D1	[1]	ELBOW
17.	DS0025020	[3]	BOLT
18.	S0515266	[4]	BOLT
19.	S2212266	[8]	BOLT
2.	110425-00003A	[1]
20.	S2215266	[4]	BOLT
21.	S2215366	[8]	BOLT
22.	S2216466	[4]	BOLT
23.	S5010713	[4]	WASHER;PLAIN
24.	S5102703	[4]	WASHER
25.	S5110703	[4]	WASHER
26.	121-00010D9	[2]	NUT
27.	2180-1026D19	[11]	O-RING
28.	2180-1026D23	[1]	O-RING
29.	S8000291	[1]	O-RING
3.	110406-01550	[2]
30.	S8030161	[5]	O-RING
4.	K1037707A	[1]	BLOCK
5.	DS2016323	[2]
51.	DS2023973	[1]
52.	DS2232232	[1]	ADAPTER
53.	2180-1026D19	[1]	O-RING
54.	S8000241	[1]	O-RING
55.	S8030161	[3]	O-RING
56.	110425-00265	[1]
57.	423-00066	[1]	BLOCK
58.	2181-4133D6	[2]	ADAPTER
59.	2181-1950D9	[1]	PLUG
6.	DS2018311	[1]
62.	S0561066	[2]	BOLT
63.	S5102703	[2]	WASHER
64.	S8000291	[3]	O-RING
65.	DS0025018	[2]	BOLT
66.	DS2018440	[1]
7.	DS20401067	[1]
8.	DS20401068	[1]
9.	DS20401069	[1]
