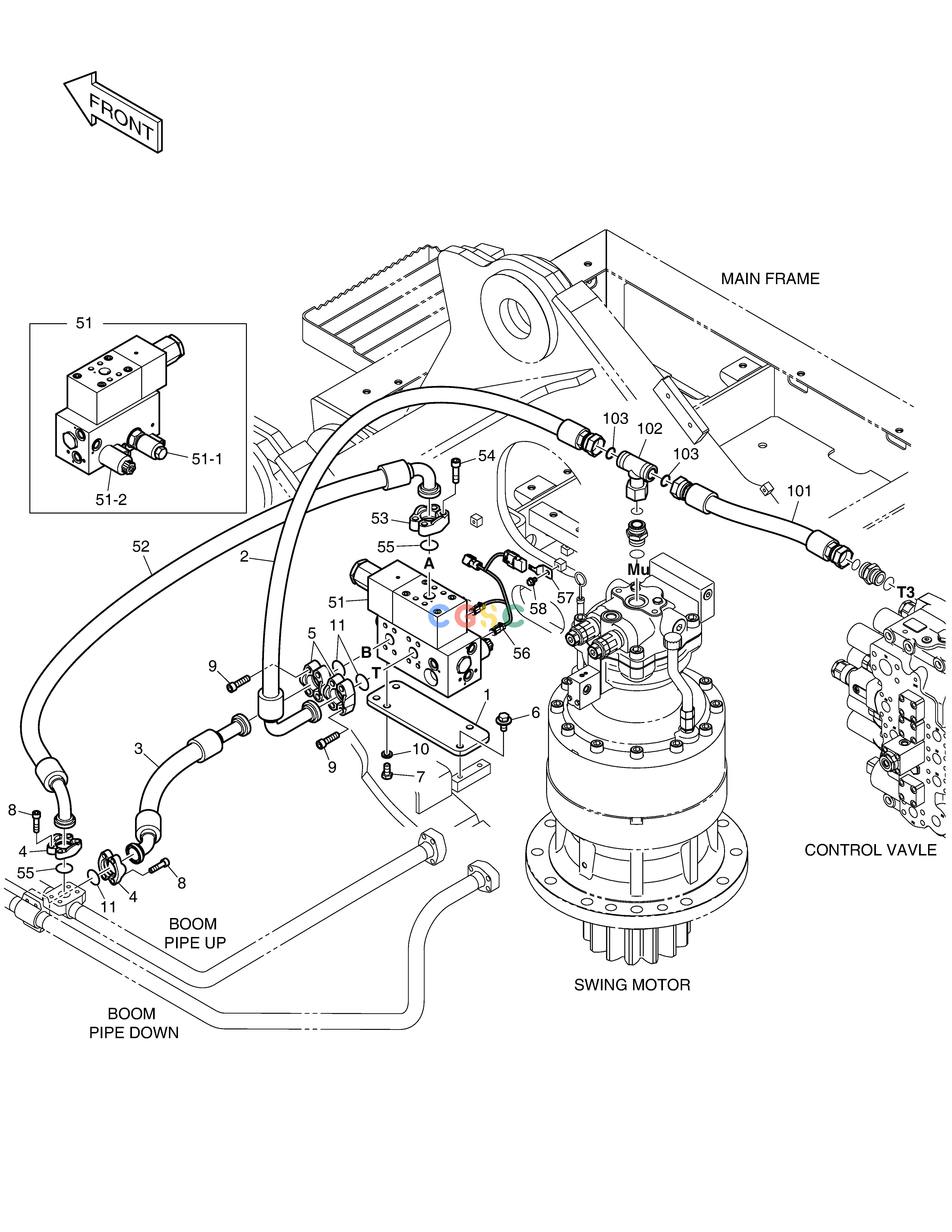

斗山零件查询MAIN PIPING - BOOM FLOATING DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
953 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08536
|
[-] |
|
|
| 1. |
110425-00086C
|
[1] |
|
|
| 10. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 101. |
DS20111005
|
[1] |
|
|
| 102. |
181-00130D5
|
[1] |
|
|
| 103. |
S8030161
|
[2] |
O-RING
|
|
| 11. |
2180-1026D19
|
[3] |
O-RING
|
|
| 2. |
DS2018285
|
[1] |
|
|
| 3. |
DS2039266
|
[1] |
|
|
| 4. |
2181-9078
|
[4] |
FLANGE;SPLIT
|
|
| 5. |
2181-9084A
|
[4] |
FLANGE;SPLIT
|
|
| 51. |
410111-00110A
|
[1] |
|
|
| 51-1. |
300715-00121
|
[1] |
|
|
| 51-2. |
300715-00122
|
[1] |
|
|
| 52. |
DS2045620
|
[1] |
|
|
| 53. |
2181-9081
|
[2] |
FLANGE;SPLIT
|
|
| 54. |
S2215566
|
[4] |
BOLT;SOCKET
|
|
| 55. |
2180-1026D19
|
[2] |
O-RING
|
|
| 56. |
310207-02959
|
[1] |
|
|
| 57. |
2197-1661
|
[1] |
BRACKET
|
|
| 58. |
K1001029
|
[1] |
BOLT
|
|
| 6. |
DS0025018
|
[3] |
BOLT
|
|
| 7. |
S0515266
|
[3] |
BOLT
|
|
| 8. |
S2212466
|
[9] |
BOLT
|
|
| 9. |
S2215566
|
[8] |
BOLT;SOCKET
|
|
