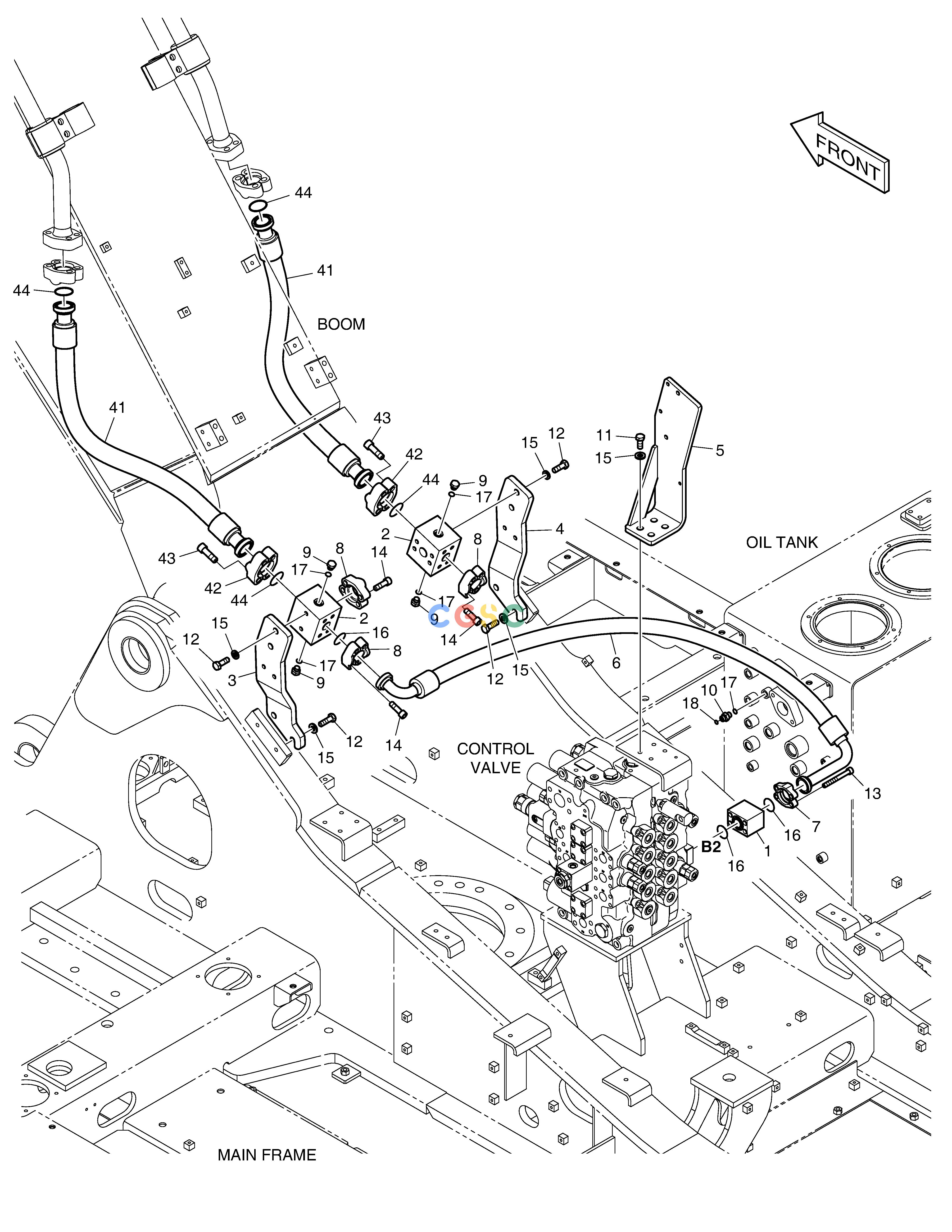

斗山零件查询MAIN PIPING - ONE & TWO WAY DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
265 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08517
|
[-] |
|
|
| 1. |
100201-01799
|
[1] |
|
|
| 10. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 11. |
S0515266
|
[4] |
BOLT
|
|
| 12. |
S0515466
|
[8] |
BOLT
|
|
| 13. |
S2213666
|
[4] |
BOLT;SOCKET M10X1.5X100
|
|
| 14. |
S2215466
|
[12] |
BOLT
|
|
| 15. |
4114-1792A
|
[12] |
WASHER
|
|
| 16. |
2180-1026D19
|
[3] |
O-RING
|
|
| 17. |
S8000111
|
[5] |
O-RING
|
|
| 18. |
S8030041
|
[1] |
O-RING
|
|
| 2. |
100201-00189A
|
[2] |
|
|
| 3. |
110420-00178E
|
[1] |
|
|
| 4. |
110420-00179E
|
[1] |
|
|
| 41. |
DS2038412
|
[2] |
|
|
| 42. |
2181-9086
|
[4] |
FLANGE;SPLIT
|
|
| 43. |
S2218566
|
[8] |
BOLT;SOCKET
|
|
| 44. |
2180-1026D23
|
[4] |
O-RING
|
|
| 5. |
110425-00105B
|
[1] |
|
|
| 6. |
DS2045667
|
[1] |
|
|
| 7. |
2181-9078
|
[2] |
FLANGE;SPLIT
|
|
| 8. |
2181-9081
|
[6] |
FLANGE;SPLIT
|
|
| 9. |
2181-1950D1
|
[4] |
PLUG
|
|
