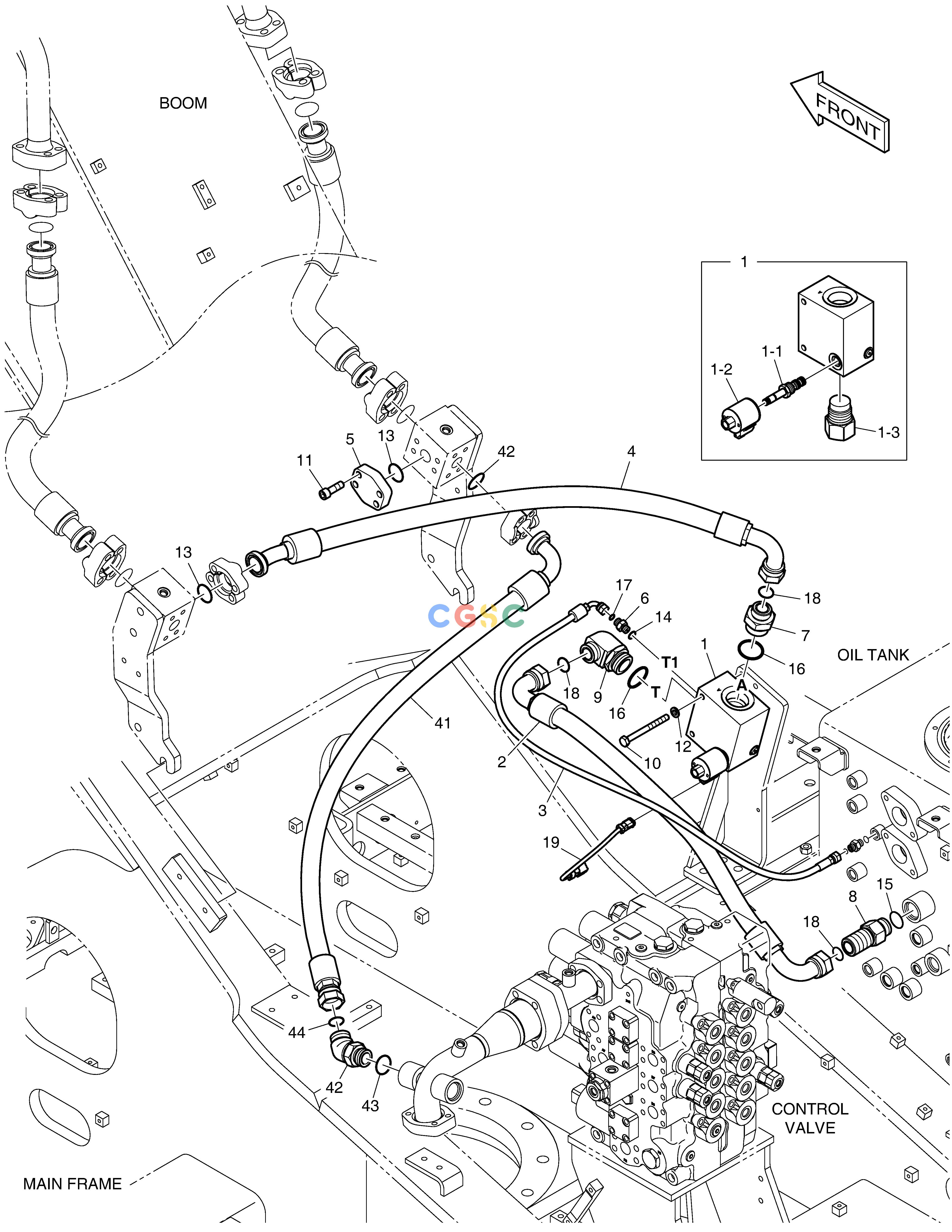

斗山零件查询MAIN PIPING - ONE WAY DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
434 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08518
|
[-] |
|
|
| 1. |
410127-00067A
|
[1] |
|
|
| 1-1. |
410116-00694
|
[1] |
|
|
| 1-2. |
300715-00032
|
[1] |
|
|
| 1-3. |
410116-00695
|
[1] |
|
|
| 10. |
S0559466
|
[2] |
|
|
| 11. |
S2215466
|
[4] |
BOLT
|
|
| 12. |
S5010613
|
[2] |
WASHER
|
|
| 13. |
2180-1026D19
|
[2] |
O-RING
|
|
| 14. |
S8000111
|
[1] |
O-RING
|
|
| 15. |
S8000291
|
[1] |
O-RING
|
|
| 16. |
S8000381
|
[2] |
O-RING
|
|
| 17. |
S8030041
|
[1] |
O-RING
|
|
| 18. |
S8030161
|
[3] |
O-RING
|
|
| 19. |
310207-00858A
|
[1] |
|
|
| 2. |
DS2023496
|
[1] |
|
|
| 3. |
DS2121005
|
[1] |
|
|
| 4. |
DS2137001
|
[1] |
|
|
| 41. |
DS2018397
|
[1] |
|
|
| 42. |
2181-2816D2
|
[1] |
ELBOW
|
|
| 43. |
S8000291
|
[1] |
O-RING
|
|
| 44. |
S8030161
|
[1] |
O-RING
|
|
| 5. |
2181-2157D3
|
[1] |
FLANGE
|
|
| 6. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 7. |
2181-4133D36
|
[1] |
ADAPTER
|
|
| 8. |
DS2232119
|
[1] |
|
|
| 9. |
DS2304005
|
[1] |
|
|
