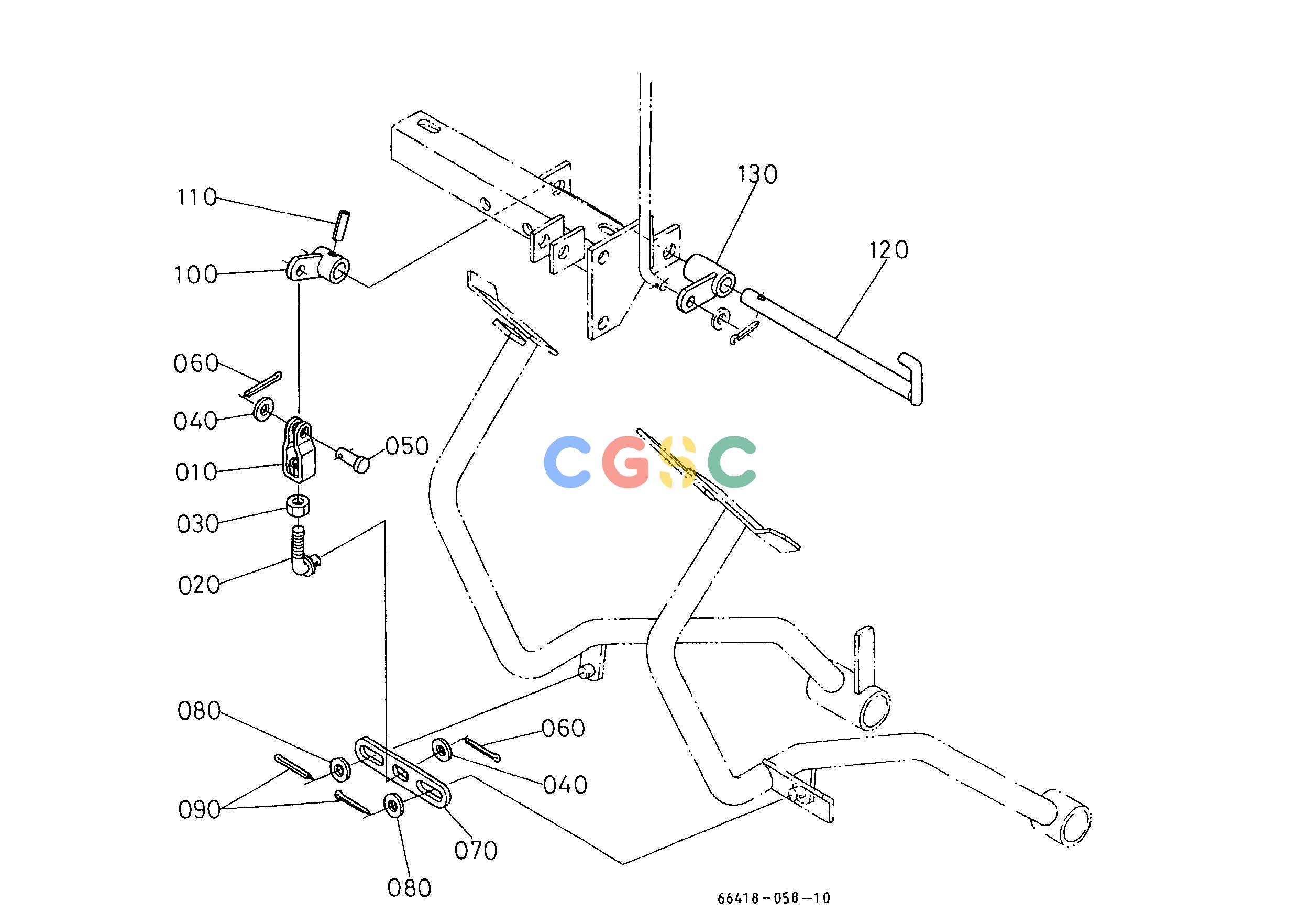

久保田零件查询T08300 BRAKE INTERLOCKER BRAKEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
502 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6375342350
|
[1] |
U JOINT
|
0.0770(lbs); 0.035
|
| 020. |
6641951610
|
[1] |
ROD
|
0.0440(lbs); 0.020
|
| 030. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 040. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 050. |
0512250820
|
[1] |
PIN JOINT
|
0.0198(lbs); 0.009
|
| 060. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 070. |
6641951540
|
[1] |
INTERLOCKER BRAKE
|
0.0880(lbs); 0.040
|
| 080. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 090. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 100. |
6641951550
|
[1] |
ARM
|
0.1430(lbs); 0.065
|
| 110. |
0541100622
|
[2] |
PIN SPRING
|
0.0066(lbs); 0.003
|
| 120. |
6641951560
|
[1] |
SHAFT BRAKE JOINT
|
0.5610(lbs); 0.255
|
| 130. |
6641951570
|
[1] |
ARM
|
0.1980(lbs); 0.090
|
