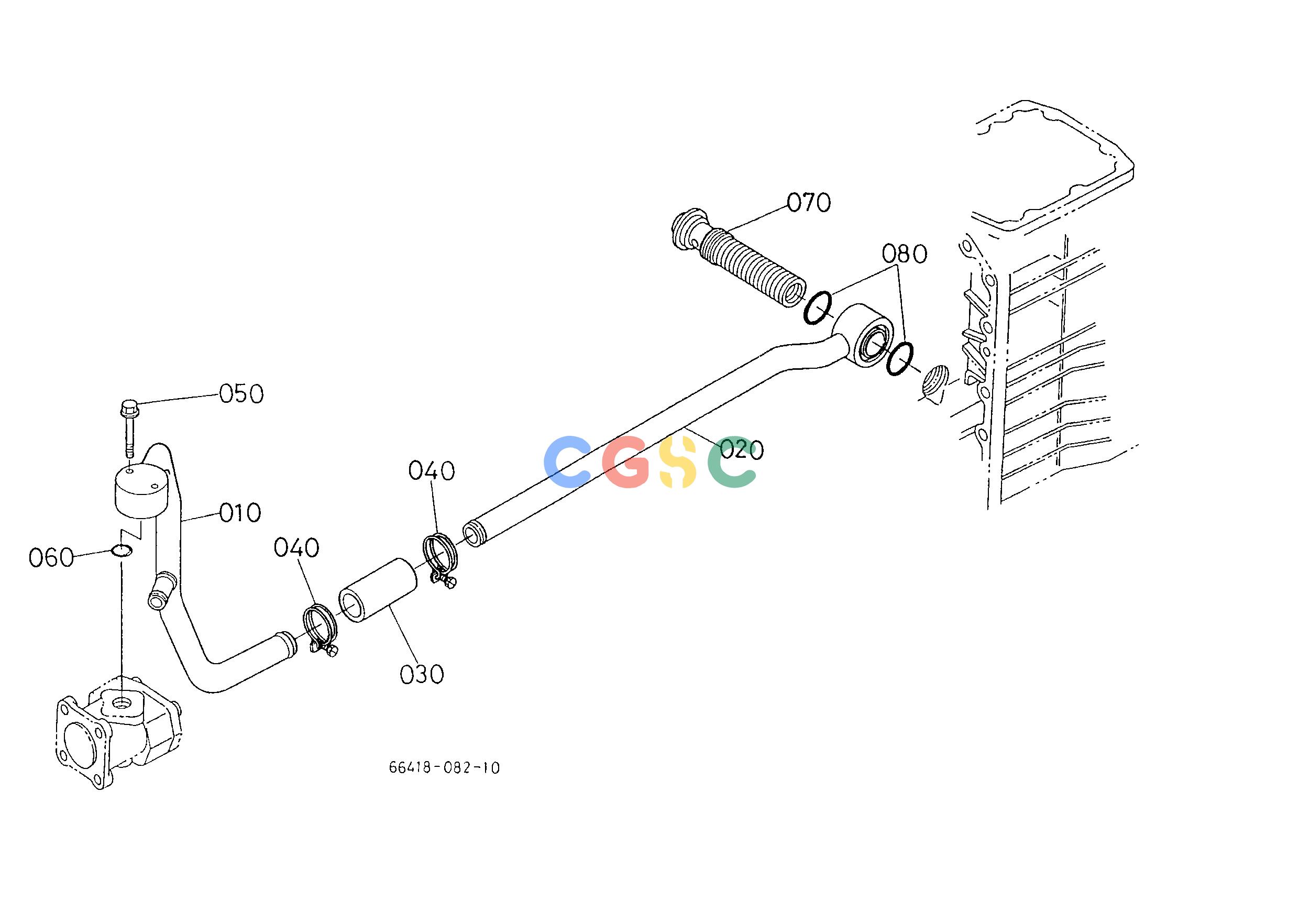

久保田零件查询T10602 HYDRAULIC PIPE (SUCTION) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
533 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6636137112
|
[1] |
PIPE SUCTION FRONT
|
1.7160(lbs); 0.780
|
| 020. |
6630137130
|
[1] |
PIPE SUCTION REAR
|
1.5840(lbs); 0.720
|
| 030. |
6780037142
|
[1] |
HOSE
|
0.1320(lbs); 0.060
|
| 040. |
0931889036
|
[2] |
CLAMP HOSE
|
0.0550(lbs); 0.025
|
| 050. |
0112350845
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 060. |
0481100200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
6780037120
|
[1] |
FILTER OIL
|
0.7700(lbs); 0.350
|
| 080. |
0481110400
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
