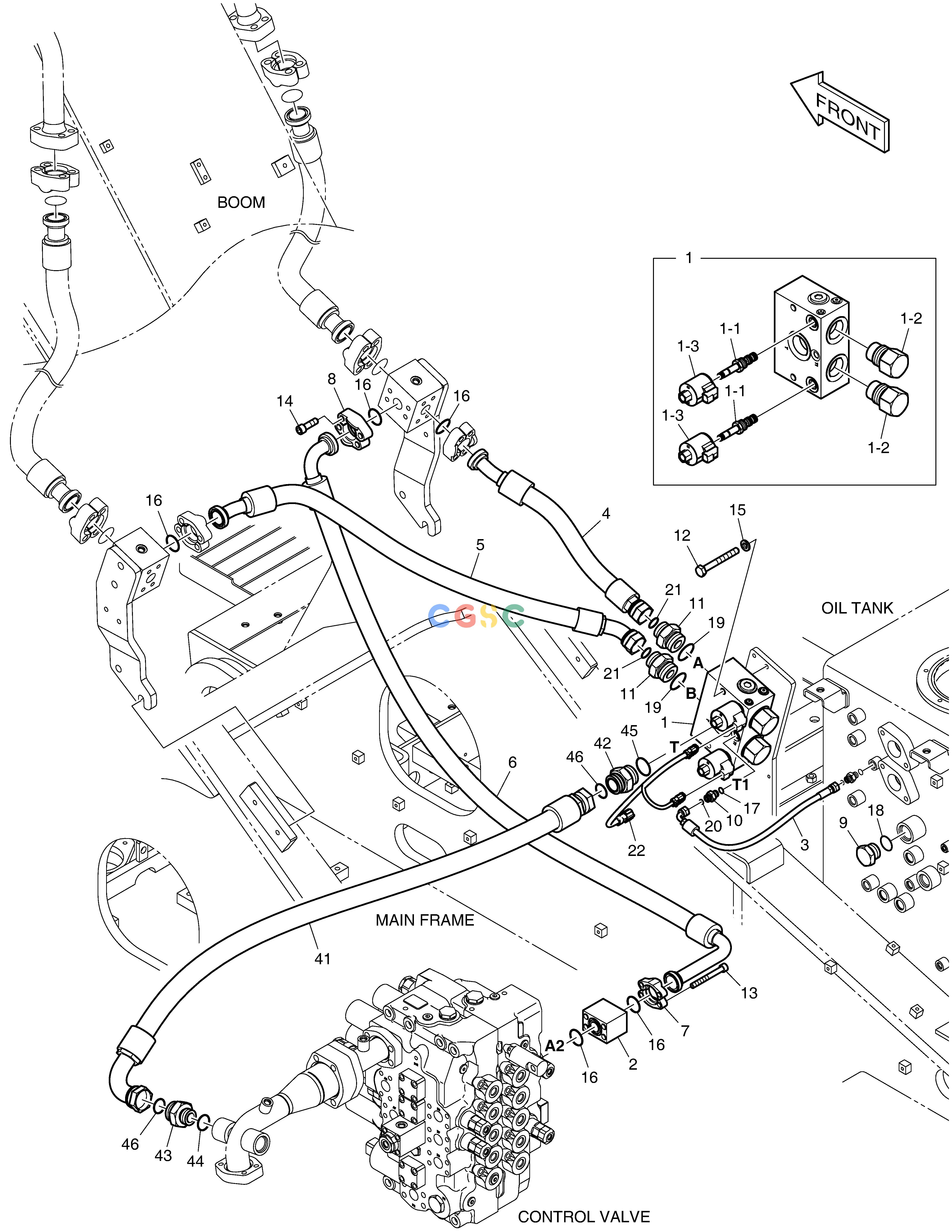

斗山零件查询MAIN PIPING - TWO WAY DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
638 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08519
|
[-] |
|
|
| 1. |
410127-00046B
|
[1] |
|
|
| 1-1. |
410116-00694
|
[2] |
|
|
| 1-2. |
410116-00695
|
[2] |
|
|
| 1-3. |
300715-00032
|
[2] |
|
|
| 10. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 11. |
2181-4133D36
|
[2] |
ADAPTER
|
|
| 12. |
S0561666
|
[2] |
BOLT
|
|
| 13. |
S2213666
|
[4] |
BOLT;SOCKET M10X1.5X100
|
|
| 14. |
S2215466
|
[4] |
BOLT
|
|
| 15. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 16. |
2180-1026D19
|
[5] |
O-RING
|
|
| 17. |
S8000111
|
[1] |
O-RING
|
|
| 18. |
S8000291
|
[1] |
O-RING
|
|
| 19. |
S8000381
|
[2] |
O-RING
|
|
| 2. |
100201-01799
|
[1] |
|
|
| 20. |
S8030041
|
[1] |
O-RING
|
|
| 21. |
S8030161
|
[2] |
O-RING
|
|
| 22. |
310207-00857
|
[1] |
|
|
| 3. |
DS2121178
|
[1] |
|
|
| 4. |
DS2132001
|
[1] |
|
|
| 41. |
DS20132289
|
[1] |
|
|
| 42. |
2181-4133D36
|
[1] |
ADAPTER
|
|
| 43. |
DS2232080
|
[1] |
ADAPTER
|
|
| 44. |
S8000291
|
[1] |
O-RING
|
|
| 45. |
S8000381
|
[1] |
O-RING
|
|
| 46. |
S8030161
|
[2] |
O-RING
|
|
| 5. |
DS2139002
|
[1] |
|
|
| 6. |
DS2045619
|
[1] |
|
|
| 7. |
2181-9078
|
[2] |
FLANGE;SPLIT
|
|
| 8. |
2181-9081
|
[2] |
FLANGE;SPLIT
|
|
| 9. |
2181-1950D9
|
[1] |
PLUG
|
|
