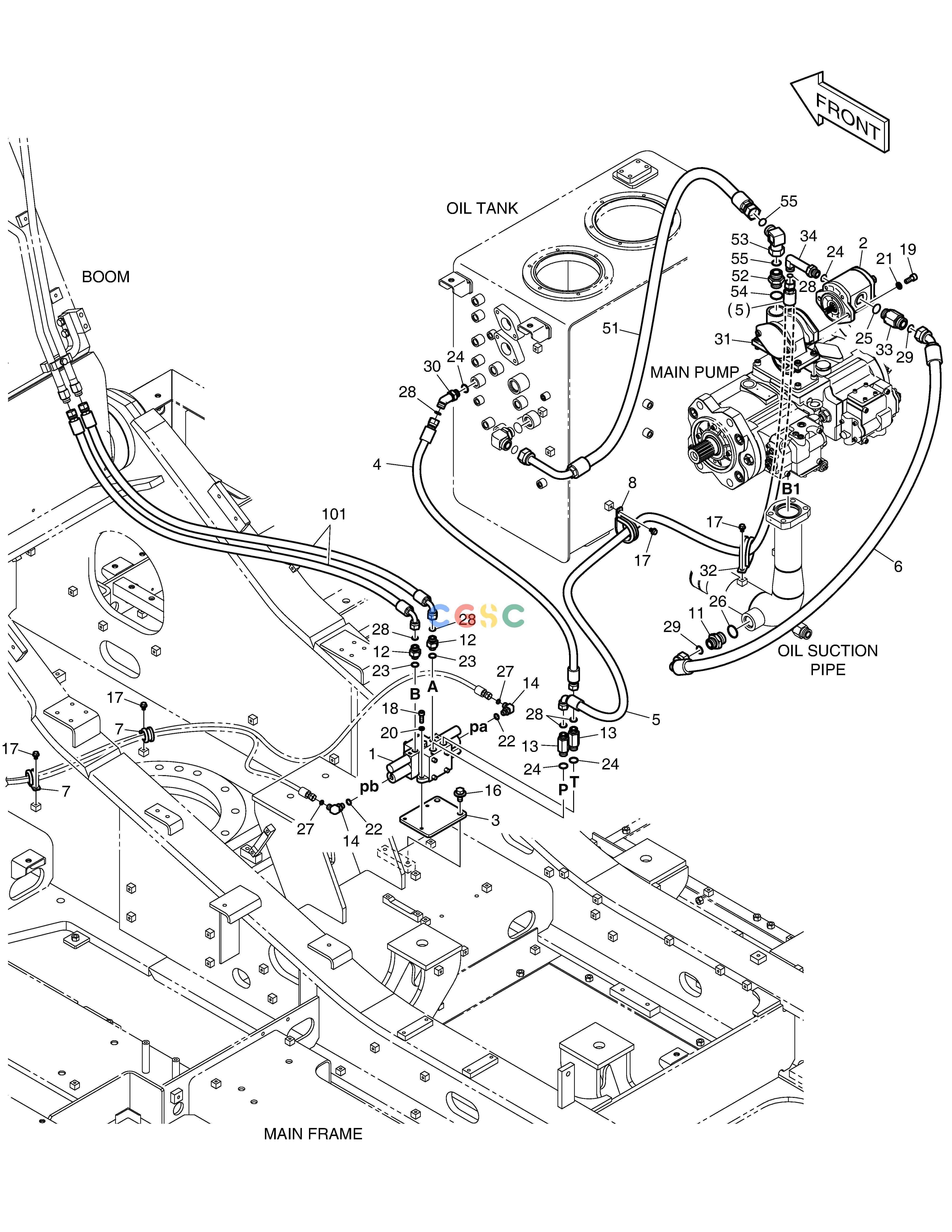

斗山零件查询MAIN PIPING-ROTATING DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
882 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08527
|
[-] |
|
|
| 1. |
426-00284B
|
[1] |
VALVE;ONE SPOOL
|
|
| 101. |
DS20132006
|
[2] |
|
|
| 11. |
2181-4133D12
|
[1] |
ADAPTER
|
|
| 12. |
2181-4133D38
|
[2] |
ADAPTER
|
|
| 13. |
DS2232178
|
[2] |
|
|
| 14. |
2181-2815D4
|
[2] |
ELBOW
|
|
| 16. |
DS0025018
|
[2] |
BOLT
|
|
| 17. |
K1001029
|
[4] |
BOLT
|
|
| 18. |
S2209066
|
[3] |
BOLT
|
|
| 19. |
S2212066
|
[2] |
BOLT
|
|
| 2. |
401-00434
|
[1] |
PUMP;GEAR
|
|
| 20. |
S5110503
|
[3] |
WASHER
|
|
| 21. |
S5020613
|
[2] |
WASHER
|
|
| 22. |
S8000111
|
[2] |
O-RING
|
|
| 23. |
S8000141
|
[2] |
O-RING
|
|
| 24. |
S8000181
|
[4] |
O-RING
|
|
| 25. |
S8000231
|
[1] |
O-RING
|
|
| 26. |
S8000291
|
[1] |
O-RING
|
|
| 27. |
S8030041
|
[2] |
O-RING
|
|
| 28. |
S8030081
|
[6] |
O-RING
|
|
| 29. |
S8030121
|
[2] |
O-RING
|
|
| 3. |
110425-00005
|
[1] |
|
|
| 30. |
DS2338046
|
[1] |
|
|
| 31. |
K1006551
|
[1] |
PTO ASS'Y
|
|
| 32. |
124-00208D9
|
[1] |
CLIP
|
|
| 33. |
2181-2627D18
|
[1] |
ADAPTER
|
|
| 34. |
DS2304086
|
[1] |
ELBOW
|
|
| 4. |
DS20111676
|
[1] |
|
|
| 5. |
DS20132559
|
[1] |
|
|
| 51. |
DS20132560
|
[1] |
|
|
| 52. |
2181-4133D5
|
[1] |
. ADAPTER
|
|
| 53. |
DS2291014
|
[1] |
ELBOW
|
|
| 54. |
S8000241
|
[1] |
O-RING
|
|
| 55. |
S8030121
|
[2] |
O-RING
|
|
| 6. |
DS2021636
|
[1] |
|
|
| 7. |
124-00208D4
|
[2] |
CLIP
|
|
| 8. |
124-00208D9
|
[1] |
CLIP
|
|
