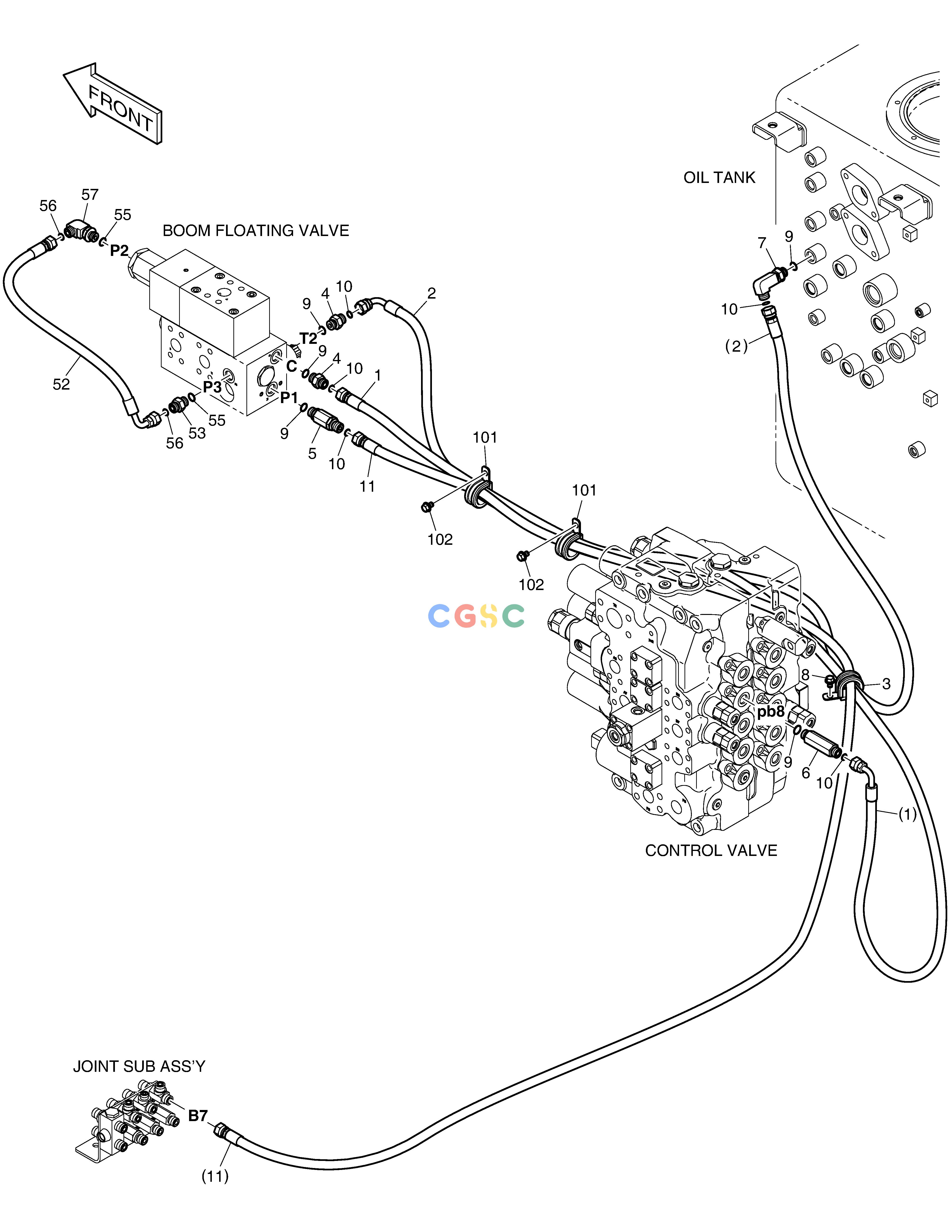

斗山零件查询PILOT PIPING - BOOM FLOATING DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
557 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08564
|
[-] |
|
|
| 1. |
DS2121037
|
[1] |
|
|
| 10. |
S8030061
|
[5] |
O-RING
|
|
| 101. |
124-00208D6
|
[2] |
CLIP
|
|
| 102. |
K1001029
|
[2] |
BOLT
|
|
| 11. |
DS2119146
|
[1] |
|
|
| 2. |
DS2121140
|
[1] |
|
|
| 3. |
124-00208D6
|
[1] |
CLIP
|
|
| 4. |
2181-4133D2
|
[2] |
ADAPTER
|
|
| 5. |
410133-00004D2
|
[1] |
|
|
| 52. |
DS2143036
|
[1] |
|
|
| 53. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 55. |
S8000141
|
[2] |
O-RING
|
|
| 56. |
S8030061
|
[2] |
O-RING
|
|
| 57. |
2181-2815D9
|
[1] |
ELBOW
|
|
| 6. |
DS2232169
|
[1] |
|
|
| 7. |
DS2304137
|
[1] |
|
|
| 8. |
K1001029
|
[1] |
BOLT
|
|
| 9. |
S8000141
|
[5] |
O-RING
|
|
