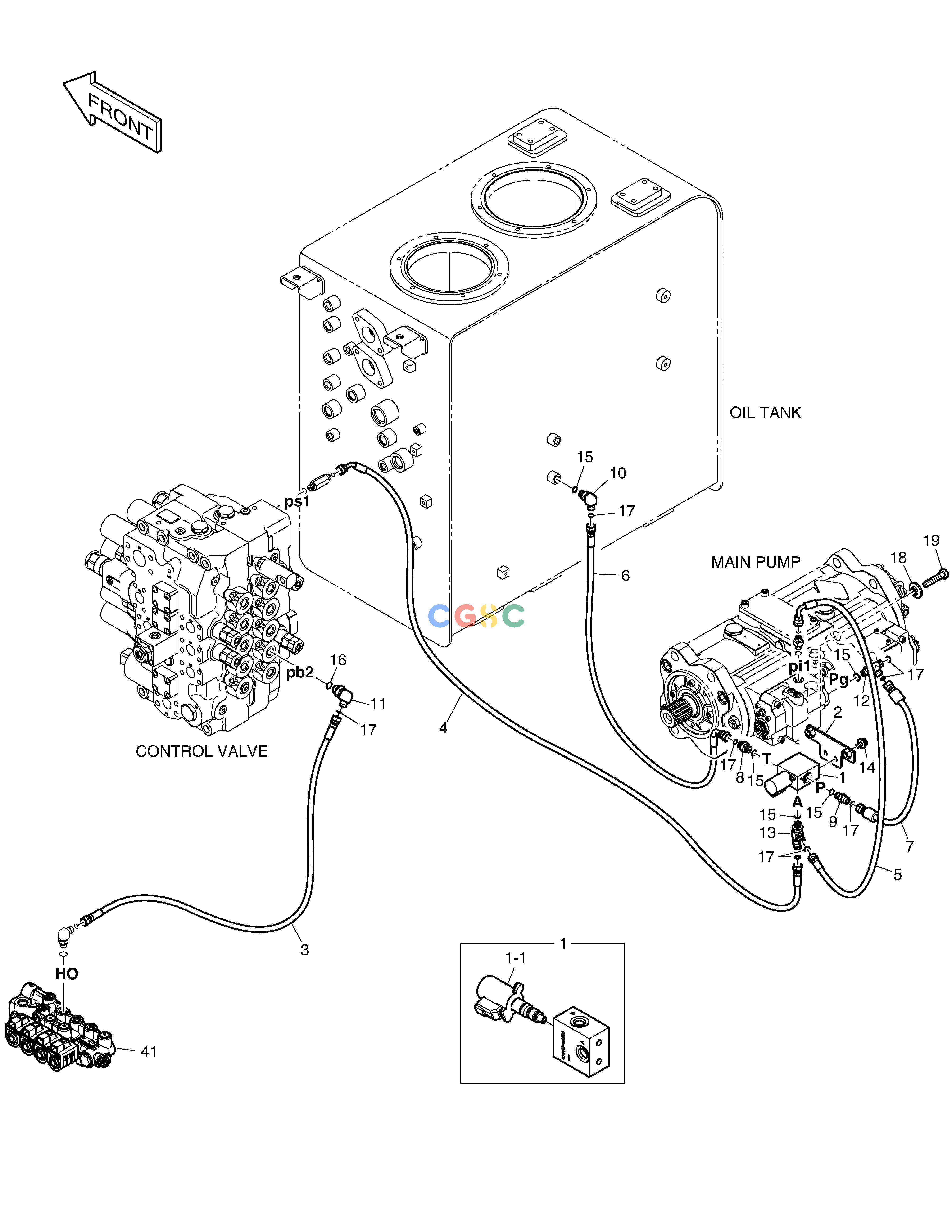

斗山零件查询PILOT PIPING - ONE & TWO WAY DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08556
|
[-] |
|
|
| 1. |
410116-00526
|
[1] |
|
|
| 1-1. |
410116-00646
|
[1] |
|
|
| 10. |
2181-2815D4
|
[1] |
ELBOW
|
|
| 11. |
2181-2815D7
|
[1] |
ELBOW
|
|
| 12. |
181-00121D1
|
[1] |
TEE
|
|
| 13. |
410134-00032
|
[1] |
|
|
| 14. |
DS0025033
|
[2] |
BOLT
|
|
| 15. |
S8000111
|
[4] |
O-RING
|
|
| 16. |
S8000141
|
[1] |
O-RING
|
|
| 17. |
S8030041
|
[6] |
O-RING
|
|
| 18. |
110951-00128
|
[2] |
|
|
| 19. |
S0560866
|
[2] |
BOLT
|
|
| 2. |
110425-00232A
|
[1] |
|
|
| 3. |
DS2119040
|
[1] |
|
|
| 4. |
DS2120056
|
[1] |
|
|
| 41. |
410135-00236A
|
[1] |
|
|
| 5. |
DS2121056
|
[1] |
|
|
| 6. |
DS2143058
|
[1] |
|
|
| 7. |
DS2119016
|
[1] |
|
|
| 8. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 9. |
430201-00130
|
[1] |
|
|
