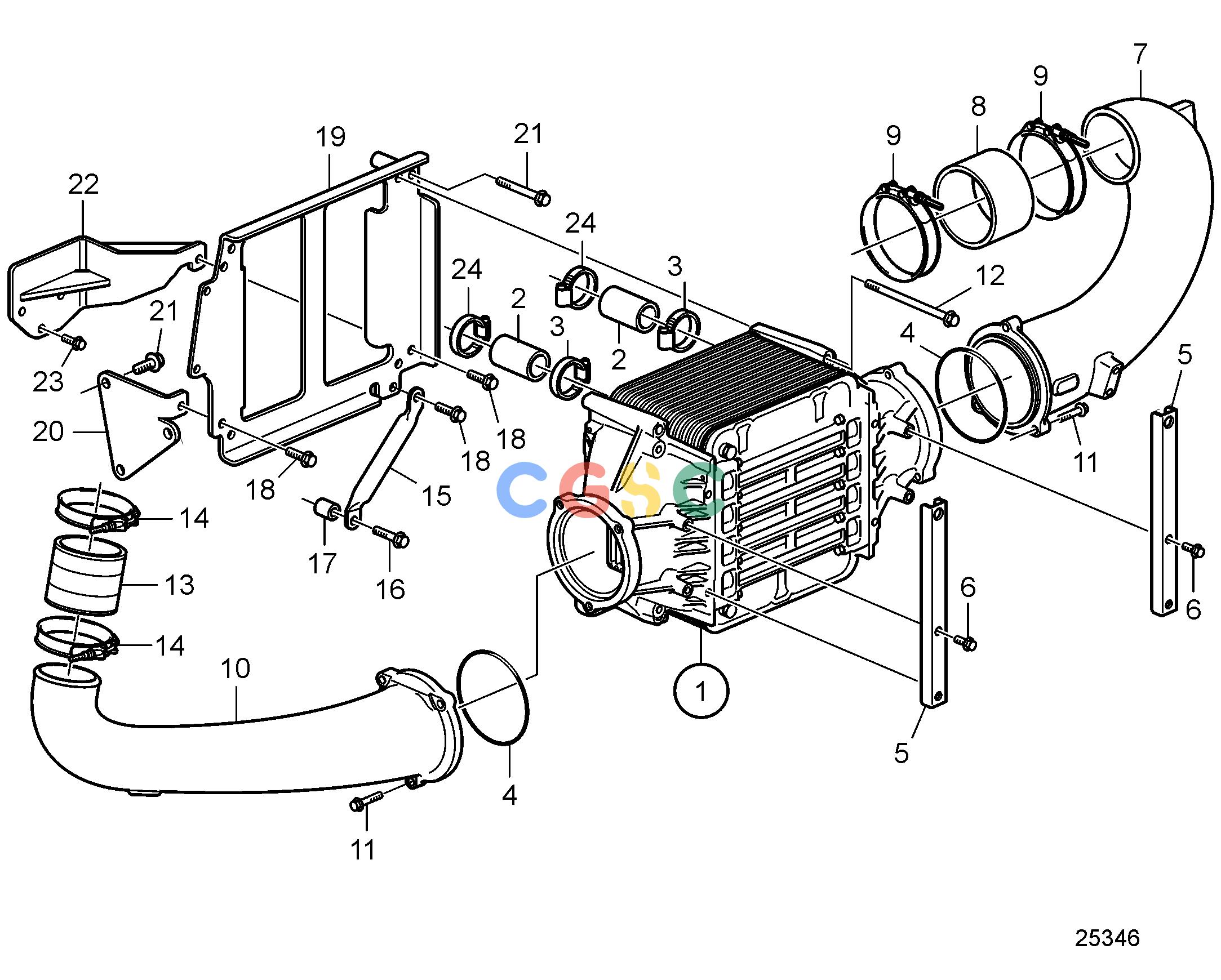

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHCooling SystemCharge Air Cooler Rear with ConnectionEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
856 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21419403
|
[1] |
Charge air cooler
|
|
| 2. |
3808196
|
[2] |
Hose
|
|
| 3. |
961669
|
[2] |
Hose clamp
|
|
| 4. |
948888
|
[2] |
O-ring
|
|
| 5. |
21344742
|
[2] |
Bracket
|
|
| 6. |
984735
|
[4] |
Flange screw
|
|
| 7. |
3849463
|
[1] |
Connecting pipe
|
For D13B-A MP, D13B-H MP
|
| 7. |
21321075
|
[1] |
Connecting pipe
|
For D13B-C MP, D13B-G MP, For D13B-K MP, For D13B-L MP
|
| 8. |
3825689
|
[1] |
Rubber collar
|
|
| 9. |
1544733
|
[2] |
Hose clamp
|
|
| 10. |
3889629
|
[1] |
Connecting pipe
|
Replaced by 22695090
|
| 10. |
22695090
|
[1] |
Connecting pipe
|
|
| 11. |
984738
|
[6] |
Flange screw
|
|
| 12. |
980475
|
[4] |
Flange screw
|
|
| 13. |
3594228
|
[1] |
Hose
|
|
| 14. |
1544732
|
[2] |
Hose clamp
|
|
| 15. |
21255353
|
[1] |
Stay
|
|
| 16. |
990862
|
[1] |
Flange screw
|
|
| 17. |
843028
|
[1] |
Spacer sleeve
|
|
| 18. |
984752
|
[3] |
Flange screw
|
|
| 19. |
21175698
|
[1] |
Bracket
|
|
| 20. |
21244606
|
[1] |
Bracket
|
Replaced by 22783943
|
| 20. |
22783943
|
[1] |
Bracket
|
|
| 21. |
946817
|
[3] |
Flange screw
|
|
| 22. |
21244692
|
[1] |
Bracket
|
|
| 23. |
984735
|
[3] |
Flange screw
|
|
| 24. |
961669
|
[2] |
Hose clamp
|
|
