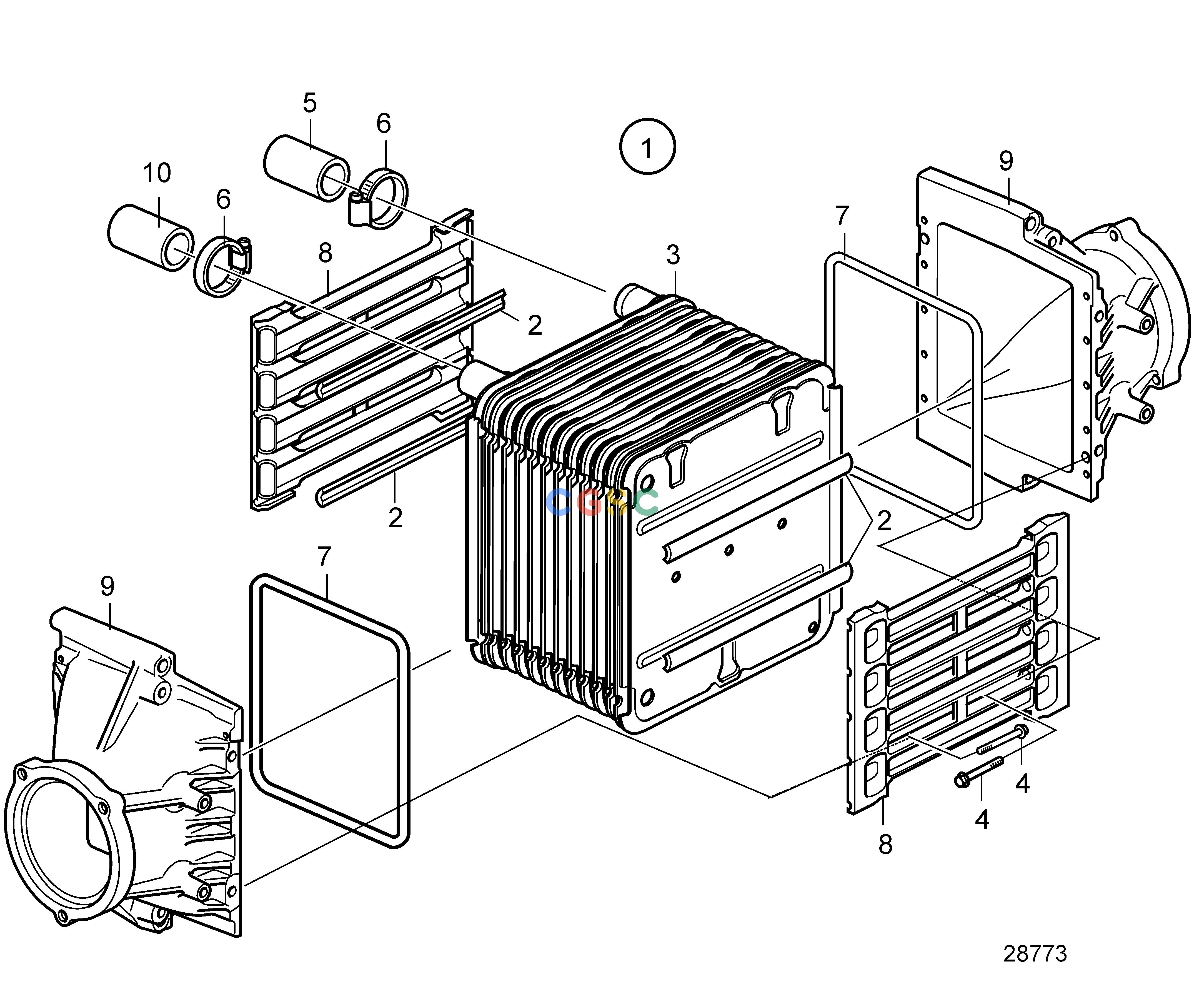

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHCooling SystemCharge Air Cooler Rear, componentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
458 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21419403
|
[1] |
Charge air cooler
|
Replaced by 21922704
|
| 1. |
21922704
|
[1] |
Charge air cooler
|
SN-2016640968
|
| 1. |
22832882
|
[1] |
Charge air cooler
|
SN2016640969-
|
| 2. |
21250767
|
[4] |
Cellular plastic
|
|
| 3. |
21227314
|
[1] |
Charge air cooler
|
|
| 4. |
965178
|
[20] |
Flange screw
|
|
| 5. |
3594076
|
[1] |
Hose
|
SN-2016640968
|
| 5. |
22832884
|
[1] |
Hose
|
SN2016640969-
|
| 6. |
22274885
|
[2] |
Hose clamp
|
|
| 7. |
21244928
|
[2] |
Sealing ring
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
3594076
|
[1] |
Hose
|
SN-2016640968
|
| 10. |
22832883
|
[1] |
Hose
|
SN2016640969-
|
