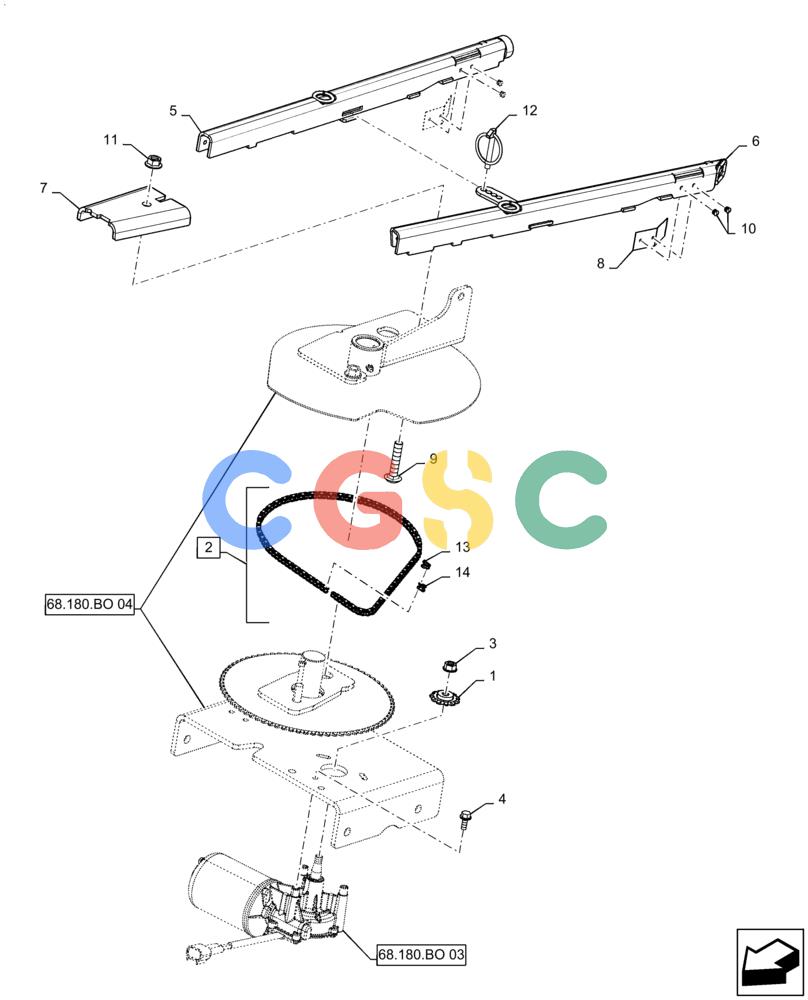

凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (68.180.BO[01]) - TWINE ARM, P.I.N. YGN190280 AND PRIOR. Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
150 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84258225
|
[1] |
SPROCKET,RC35, 11T
|
NH
|
| 2. |
84259286
|
[1] |
CHAIN,35, 83 Links x 3/8" = 31-1/8" L
|
NH
Incl 13, 14
|
| 3. |
86505868
|
[1] |
SERRATED NUT,Hex, M8 x 1.25, Cl 8
|
ZED
|
| 4. |
9804255
|
[4] |
BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8
|
NH
|
| 5. |
47495565
|
[1] |
ARM
|
NH
Twine Superseded by part number: 47939906
|
| 6. |
47495559
|
[1] |
ARM
|
NH
Twine Superseded by part number: 47941919
|
| 7. |
84283485
|
[1] |
ANGLE
|
NH
|
| 8. |
87609767
|
[2] |
LEAF SPRING
|
NH
Twine Tension
|
| 9. |
350459
|
[1] |
CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8
|
ZED
|
| 10. |
86637656
|
[4] |
RIVET,Pop, 1/8" x .337"
|
FAR
|
| 11. |
86619802
|
[1] |
FLANGE NUT,M10 x 1.5, Cl 8
|
PA
Superseded by part number: 87547587
|
| 12. |
270184
|
[1] |
LINCH PIN,6.35mm OD
|
NH
|
| 13. |
117226
|
[1] |
OFFSET LINK
|
GI
Superseded by part number: 241-3713
|
| 14. |
86516818
|
[1] |
CONNECTING LINK
|
GI
|
