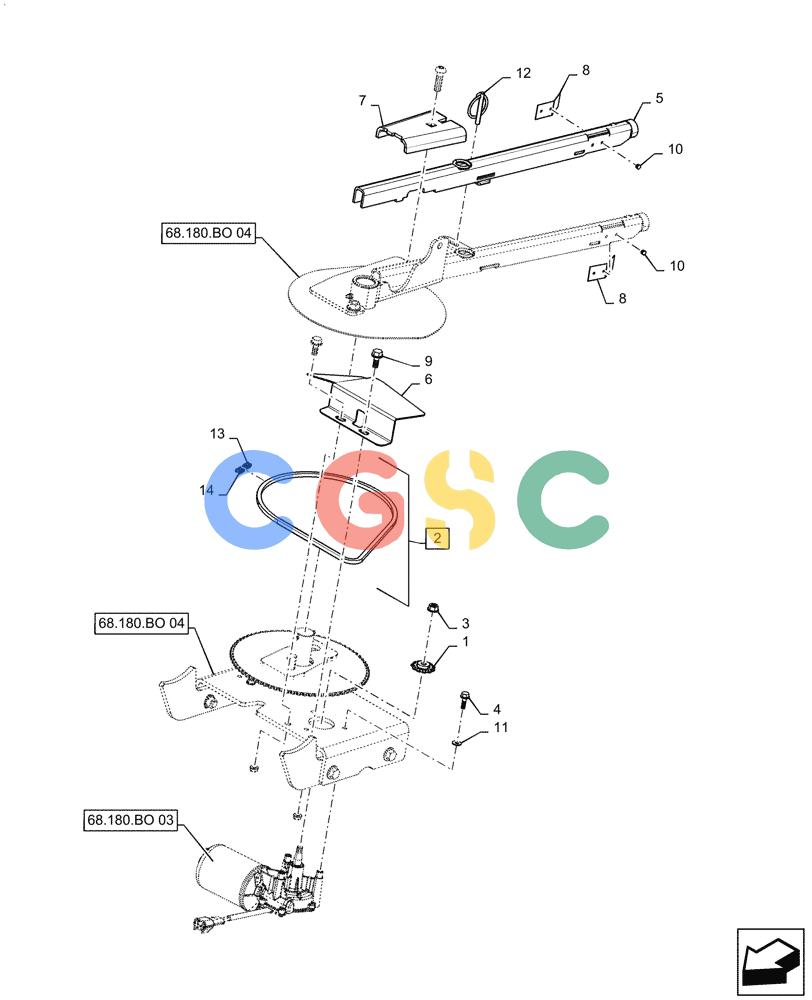

凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (68.180.BO[01]) - TWINE ARM, P.I.N. YGN190281 AND AFTER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
537 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84258225
|
[1] |
SPROCKET,RC35, 11T
|
NH
|
| 2. |
84259286
|
[1] |
CHAIN,35, 83 Links x 3/8" = 31-1/8" L
|
NH
Incl 13, 14
|
| 3. |
86505868
|
[1] |
SERRATED NUT,Hex, M8 x 1.25, Cl 8
|
ZED
|
| 4. |
9804256
|
[4] |
BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8
|
NH
|
| 5. |
47939906
|
[1] |
ARM
|
NH
Twine
|
| 6. |
47928280
|
[1] |
SHIELD
|
NH
|
| 7. |
84283485
|
[1] |
ANGLE
|
NH
|
| 8. |
47922005
|
[2] |
LEAF SPRING
|
NH
Twine Tension
|
| 9. |
9804258
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 10. |
86637656
|
[4] |
RIVET,Pop, 1/8" x .337"
|
FAR
|
| 11. |
322357
|
[3] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 12. |
270184
|
[1] |
LINCH PIN,6.35mm OD
|
NH
|
| 13. |
117226
|
[1] |
OFFSET LINK
|
GI
Superseded by part number: 241-3713
|
| 14. |
86516818
|
[1] |
CONNECTING LINK
|
GI
|
