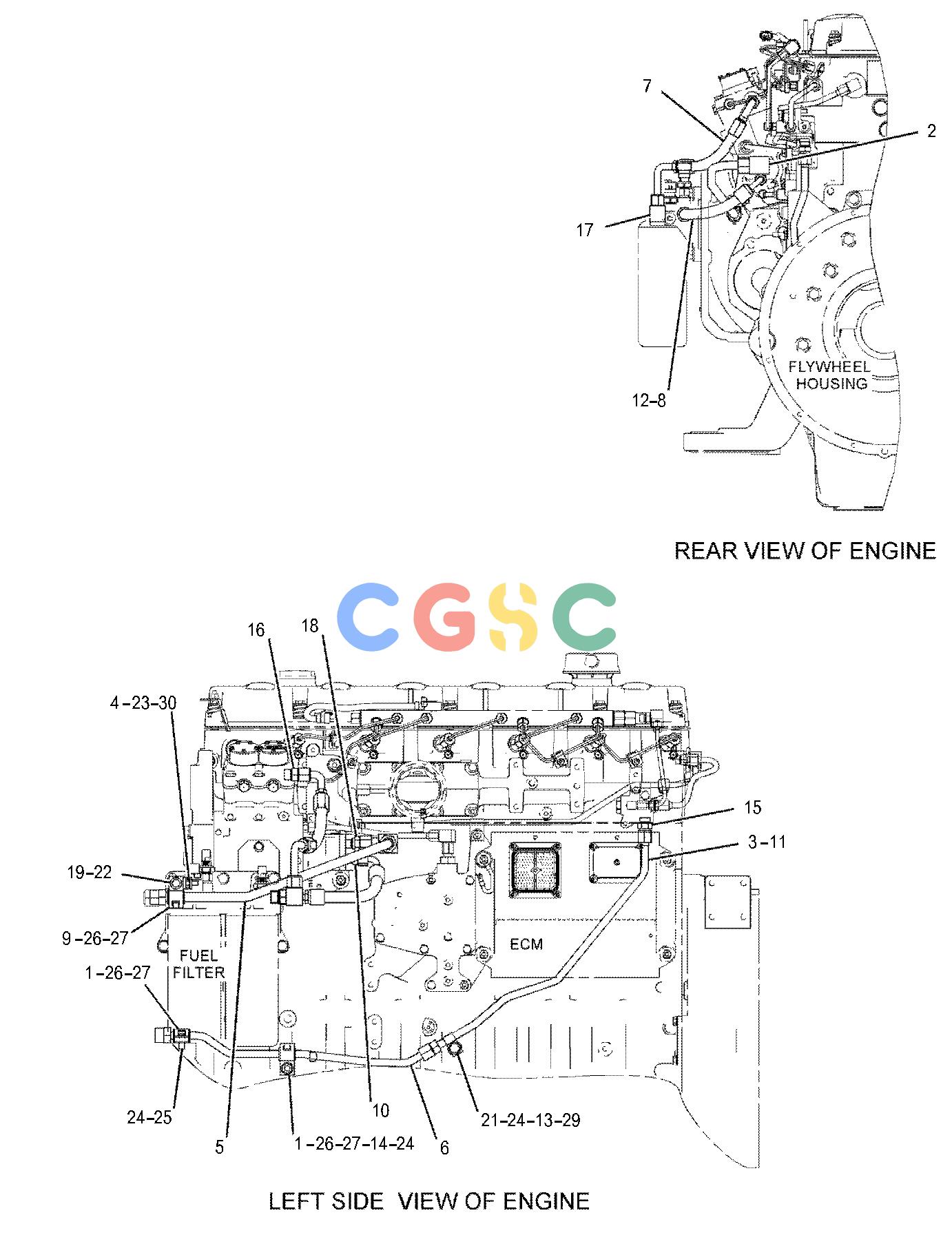

卡特零件查询（725C） 444-6792: LINES GP-FUEL FILTER
广数供应链运营团队, 14 02月, 2025，浏览：
386 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4P-7233 | [2] | GROMMET | |
| 2. | 314-5072 | [1] | ADAPTER AS | |
| | 157-2348 | [1] | ELBOW | |
| | 228-7091 | [1] | SEAL-O-RING | |
| 3. | 452-7070C | [1] | TUBE AS-FUEL | |
| 4. | 357-2472 | [1] | BRACKET AS | |
| 5. | 357-6975 | [1] | TUBE AS-FUEL | |
| 6. | 452-7071C | [1] | TUBE AS-FUEL | |
| 7. | 357-6978 | [1] | LINE AS-FUEL | |
| 8. | 425-8251 | [1] | HOSE AS | |
| 9. | 100-3237 | [1] | GROMMET | |
| 10. | 183-3399 | [1] | CONNECTOR AS | |
| | 6V-8636 | [1] | CONNECTOR | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 11. | 228-7090 | [1] | SEAL-O-RING | |
| 12. | 260-9219 | [1] | CONNECTOR AS | |
| | 6V-8638 | [1] | CONNECTOR | |
| | 228-7090 | [1] | SEAL-O-RING | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 13. | 6V-3822CM | [1] | BOLT(M10X1.5X35-MM) | |
| 14. | 2Y-5829M | [1] | NUT(M10X1.5-THD) | |
| 15. | 307-9615 | [1] | ADAPTER AS | |
| | 8M-0505 | [1] | ADAPTER | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 16. | 319-6217 | [1] | CONNECTOR AS | |
| | 6V-8639 | [1] | CONNECTOR | |
| | 228-7090 | [1] | SEAL-O-RING | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 17. | 319-6225 | [1] | ELBOW AS | |
| | 6V-8625 | [1] | ELBOW | |
| | 228-7090 | [1] | SEAL-O-RING | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 18. | 319-6240 | [1] | CONNECTOR AS | |
| | 6V-9873 | [1] | CONNECTOR | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7090 | [1] | SEAL-O-RING | |
| 19. | 3E-4352 | [1] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 21. | 4H-2633 | [1] | CLIP | |
| 22. | 6V-3940M | [1] | BOLT(M8X1.25X25-MM) | |
| 23. | 6V-5215M | [1] | BOLT(M8X1.25X16-MM) | |
| 24. | 6V-5839C | [3] | WASHER(11X21X2.5-MM THK) | |
| 25. | 6V-6317M | [1] | BOLT(M10X1.5X20-MM) | |
| 26. | 8T-1887 | [3] | CLIP(SLOT) | |
| 27. | 8T-1888 | [3] | CLIP(TAB) | |
| 29. | 9G-8140C | [1] | SPACER(10.5X25X15-MM THK) | |
| 30. | 9M-1974 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
