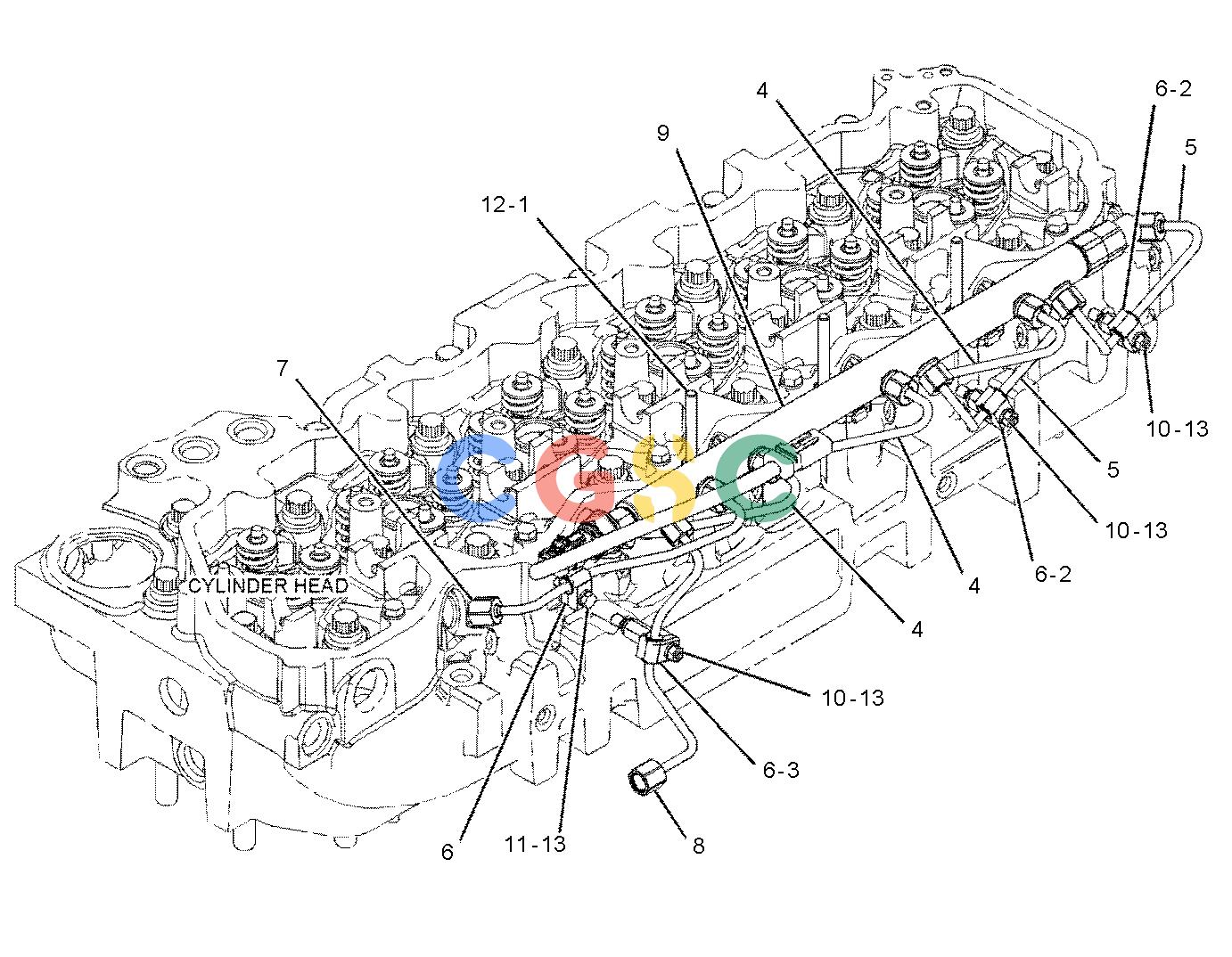

卡特零件查询（725C） 344-9102: LINES GP-FUEL INJECTION
广数供应链运营团队, 14 02月, 2025，浏览：
690 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 131-0353M | [3] | STUD(M8X1.25X82.75-MM) | |
| 2. | 325-9550 | [2] | STUD(M8X1.25X57-MM) | |
| 3. | 325-9551 | [1] | STUD(M8X1.25X66.5-MM) | |
| 4. | 423-4359 | [3] | TUBE AS-FUEL | |
| 5. | 423-4360J | [2] | TUBE AS-FUEL | |
| 6. | 343-7460JLN | [8] | CLAMP AS | |
| 7. | 423-4358L | [1] | TUBE AS-FUEL | |
| 8. | 371-2256N | [1] | TUBE AS-FUEL | |
| 9. | 422-8408Y | [1] | RAIL GP-FUEL | |
| 10. | 6V-8225M | [3] | NUT(M6X1-THD) | |
| 11. | 8T-0640M | [1] | BOLT(M6X1X30-MM) | |
| 12. | 9M-1974 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 13. | 9X-8267 | [4] | WASHER(6.6X12X2-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 428-6098J | [2] | KIT-FUEL LINES | |
| | 428-6097L | [1] | KIT-FUEL LINES | |
| | 428-6096N | [1] | KIT-FUEL LINES | |
| | | | (EACH KIT INCLUDES 2 CLAMP ASSEMBLIES) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
| | Y | | SEPARATE ILLUSTRATION |
