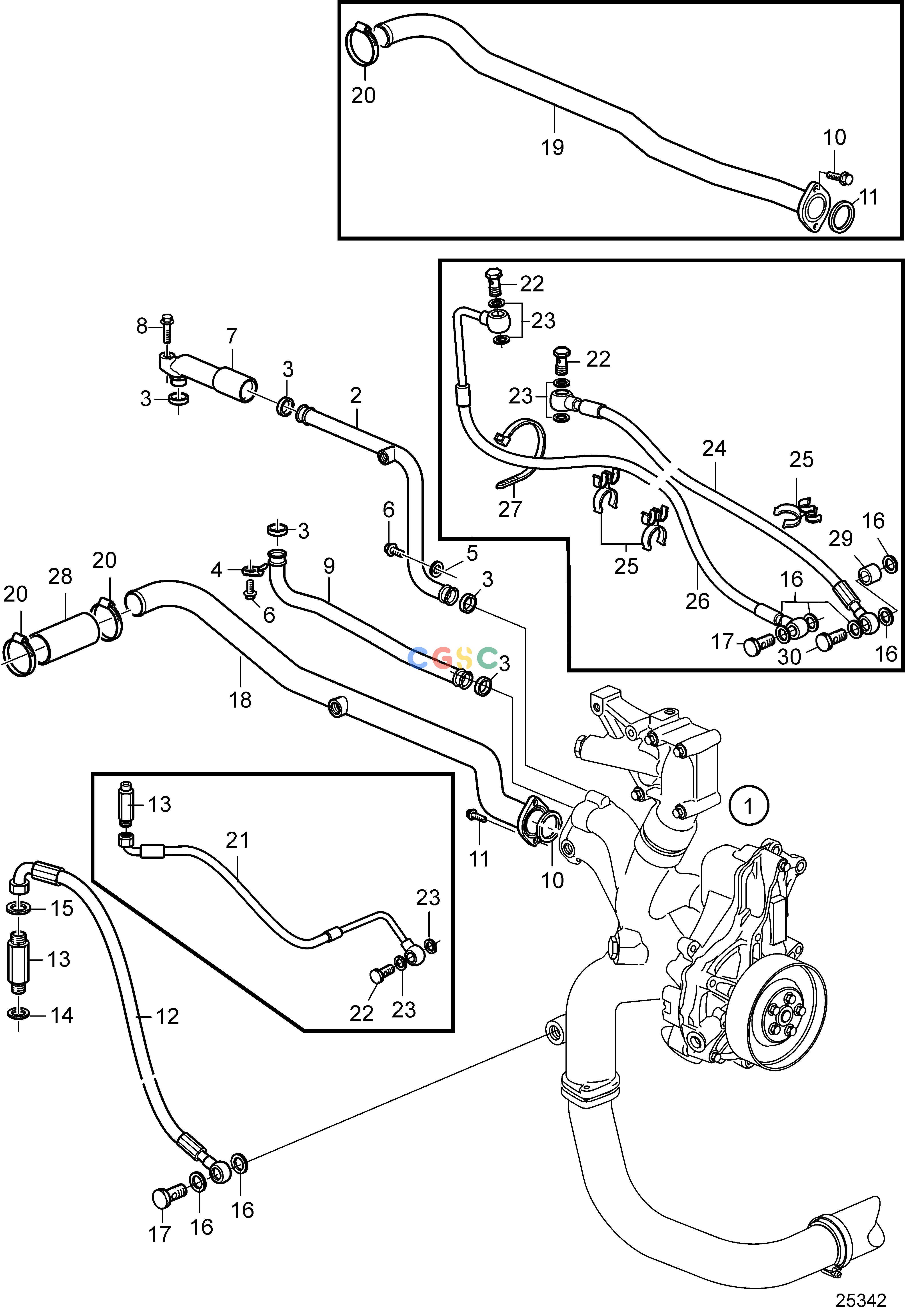

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHCooling SystemCooling Water Pump and Thermostat HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
153 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
3594798
|
[1] |
Water pipe
|
|
| 3. |
1547255
|
[5] |
Sealing ring
|
|
| 4. |
20844430
|
[1] |
Lock brace
|
|
| 5. |
945583
|
[1] |
Washer
|
|
| 6. |
984733
|
[2] |
Flange screw
|
|
| 7. |
21216491
|
[1] |
Pipe connection
|
|
| 8. |
984736
|
[1] |
Flange screw
|
|
| 9. |
3594799
|
[1] |
Water pipe
|
|
| 10. |
848163
|
[1] |
Gasket
|
|
| 11. |
984726
|
[2] |
Flange screw
|
|
| 12. |
21321097
|
[1] |
Cooling hose
|
SN-2013701762
|
| 12. |
78467566
|
[1] |
Cooling hose
|
SN2013701763-
|
| 13. |
21392863
|
[2] |
Adapter
|
|
| 14. |
968559
|
[1] |
O-ring
|
|
| 15. |
976971
|
[1] |
O-ring
|
|
| 16. |
20852765
|
[5] |
Sealing ring
|
|
| 17. |
941686
|
[2] |
Hollow screw
|
|
| 18. |
3594877
|
[1] |
Water pipe
|
Replaced by 22784522
|
| 18. |
22784522
|
[1] |
Water pipe
|
|
| 19. |
3594880
|
[1] |
Water pipe
|
Replaced by 22784519
|
| 19. |
22784519
|
[1] |
Water pipe
|
|
| 20. |
961670
|
[2] |
Hose clamp
|
|
| 21. |
21463679
|
[1] |
Cooling hose
|
Only for D13B-A and D13B-H, And, SN 2013458049-
|
| 21. |
22316856
|
[1] |
Conversion kit
|
Not for D13B-A and D13B-H, And, SN-2013458048
|
| 22. |
190714
|
[3] |
Hollow screw
|
|
| 23. |
976931
|
[4] |
Gasket
|
|
| 24. |
21085355
|
[1] |
Cooling hose
|
|
| 25. |
3923707
|
[3] |
Retainer
|
|
| 26. |
21085358
|
[1] |
Cooling hose
|
|
| 27. |
948211
|
[1] |
Cable tie
|
|
| 28. |
3808196
|
[1] |
Hose
|
|
| 29. |
991656
|
[1] |
Spacer sleeve
|
|
| 30. |
968126
|
[1] |
Hollow screw
|
|
