卡特零件查询（725C） 379-0150: PUMP GP-FUEL INJECTION
广数供应链运营团队, 14 02月, 2025，浏览：
337 次

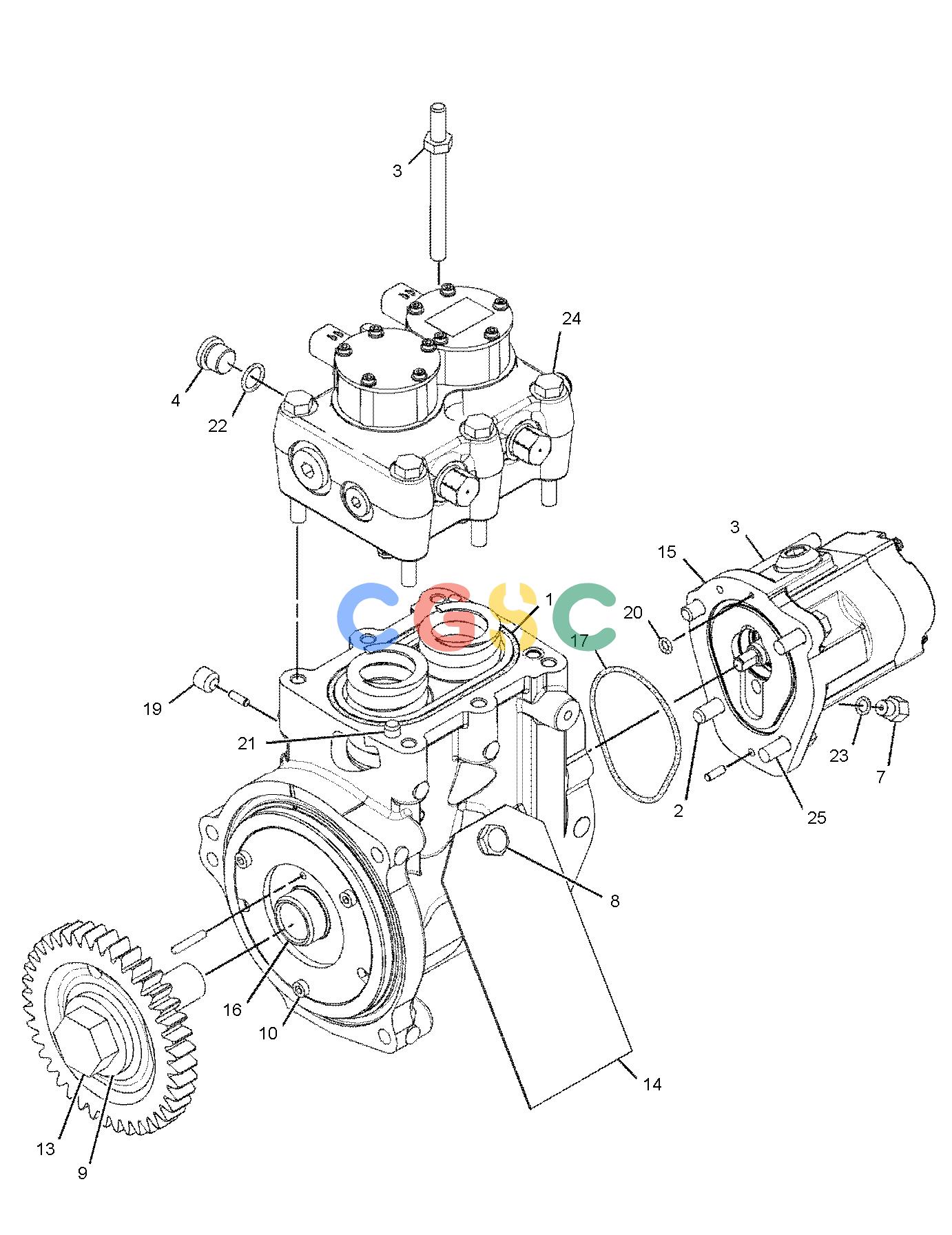

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-3834 | [1] | SEAL-O-RING | |
| 2. | 104-6385M | [1] | STUD(M8X1.25-THD) | |
| 3. | 143-9392M | [3] | STUD(M8X1.25-THD) | |
| 4. | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| 7. | 9S-4180 | [1] | PLUG | |
| 8. | 294-3031 | [1] | BOLT-SPECIAL | |
| 9. | 8T-5439 | [1] | WASHER-HARD(21.5X45X6-MM THK) | |
| 10. | 8C-8545M | [3] | BOLT-SOCKET HEAD(M5X0.8X20-MM) | |
| 13. | 6V-5845M | [1] | BOLT(M20X2.5X70-MM) | |
| 14. | 364-3761 | [1] | TAG-INSTRUCTION(DO NOT START, READ OMM) | |
| 15. | 371-3586 | [1] | PUMP GP-FUEL TRANSFER | |
| 16. | 373-1570 | [1] | CAMSHAFT | |
| 17. | 378-0746 | [1] | SEAL-O-RING | |
| 19. | 6V-5135 | [2] | SETSCREW-SOCKET(7/16-20X0.375-IN) | |
| 20. | 107-3116 | [1] | SEAL-O-RING | |
| 21. | 145-6115 | [2] | DOWEL | |
| 22. | 214-7568 | [1] | SEAL-O-RING | |
| 23. | 238-5078 | [1] | SEAL-O-RING | |
| 24. | 5P-8347M | [4] | BOLT(M8X1.25X70-MM) | |
| 25. | 6V-3940M | [2] | BOLT(M8X1.25X25-MM) | |
| | | | |
| | 364-0628F | [1] | PLUG-SPECIAL(FUEL PUMP TIMING) | |
| | 228-7089F | [1] | SEAL-O-RING | |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
