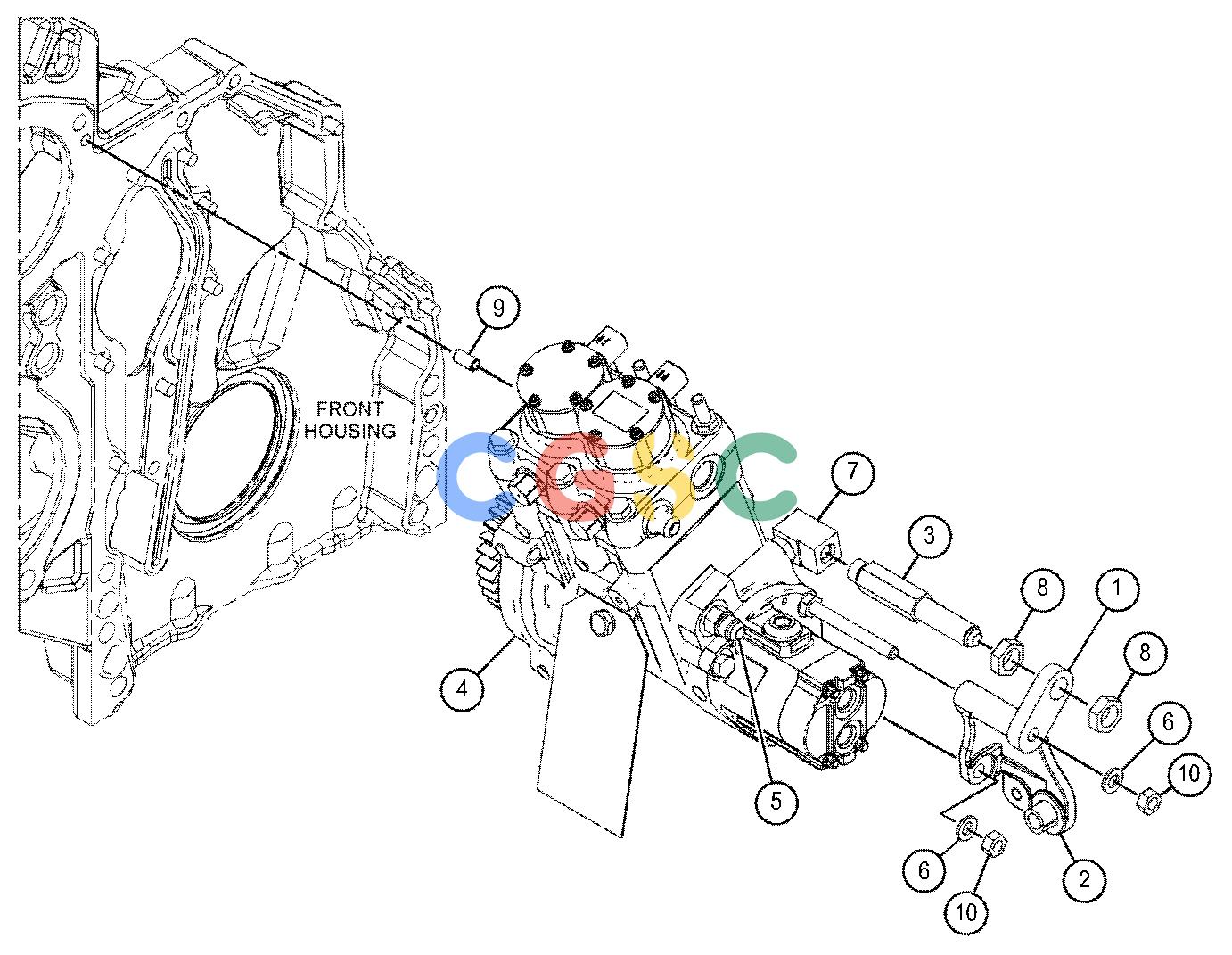

卡特零件查询（725C） 386-2109: PUMP GP-FUEL INJECTION
广数供应链运营团队, 14 02月, 2025，浏览：
244 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 293-3579 | [1] | PLATE | |
| 2. | 359-9266 | [1] | BRACKET AS | |
| | 7E-3443 | [2] | BUSHING-TERMINAL | |
| 3. | 353-5119 | [1] | ADAPTER AS | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 353-5118 | [1] | ADAPTER | |
| 4. | 511-7975Y | [1] | PUMP GP-FUEL INJECTION | |
| 5. | 357-4602 | [1] | CONNECTOR AS | |
| | 5P-2618 | [1] | CONNECTOR | |
| | 214-7567 | [1] | SEAL-O-RING | |
| 6. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 7. | 392-0820 | [1] | ELBOW AS | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 294-2630 | [1] | ELBOW | |
| 8. | 2P-1279 | [2] | LOCKNUT(9/16-18-THD) | |
| 9. | 3E-9412 | [1] | DOWEL | |
| 10. | 5P-7970M | [2] | NUT(M8X1.25-THD) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
