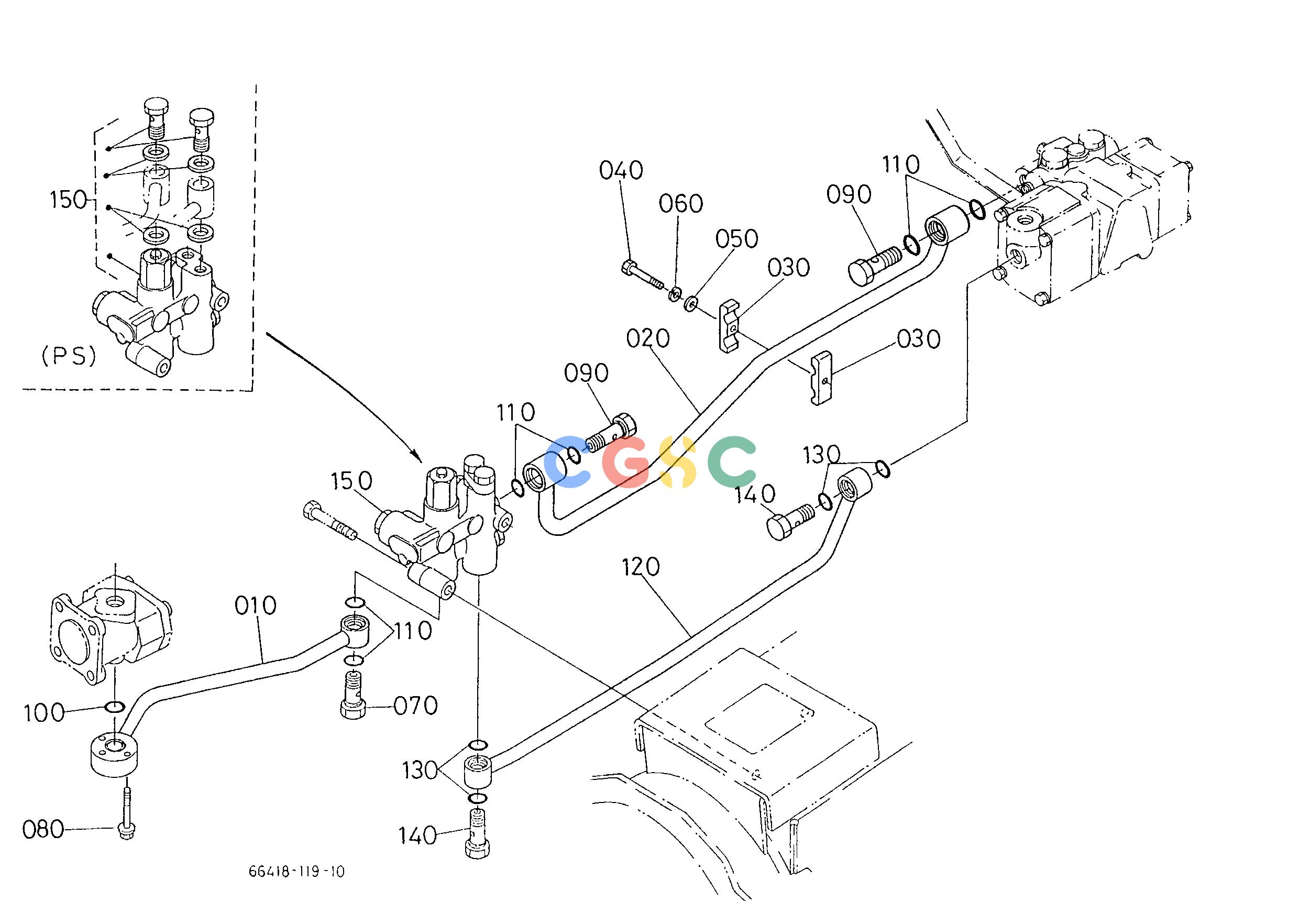

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6636137150
|
[1] |
PIPE DELIVERY
|
0.9900(lbs); 0.450
|
| 020. |
6636137170
|
[1] |
PIPE DELIVERY
|
0.9900(lbs); 0.450
|
| 030. |
6630137180
|
[2] |
CLAMP PIPE
|
0.0220(lbs); 0.010
|
| 040. |
0105350650
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 050. |
0401560060
|
[1] |
WASHER PLAIN
|
0.0110(lbs); 0.005
|
| 060. |
0451260060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 070. |
6785037160
|
[1] |
BOLT JOINT
|
0.1980(lbs); 0.090
|
| 080. |
0112350840
|
[3] |
BOLT
|
0.0396(lbs); 0.018
|
| 090. |
6785036250
|
[2] |
BOLT JOINT
|
0.2266(lbs); 0.103
|
| 100. |
0481000200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 110. |
0481000200
|
[6] |
O RING
|
0.0022(lbs); 0.001
|
| 120. |
6636137650
|
[1] |
PIPE RETURN
|
0.9020(lbs); 0.410
|
| 130. |
0481000200
|
[4] |
O RING
|
0.0022(lbs); 0.001
|
| 140. |
6785037160
|
[2] |
BOLT JOINT
|
0.1980(lbs); 0.090
|
| 150. |
6785038104
|
[1] |
ASSY OUTLET HYD.
|
6.0500(lbs); 2.750
|
| 150. |
6636338104
|
[1] |
ASSY OUTLET HYD.
|
6.0940(lbs); 2.770
|
