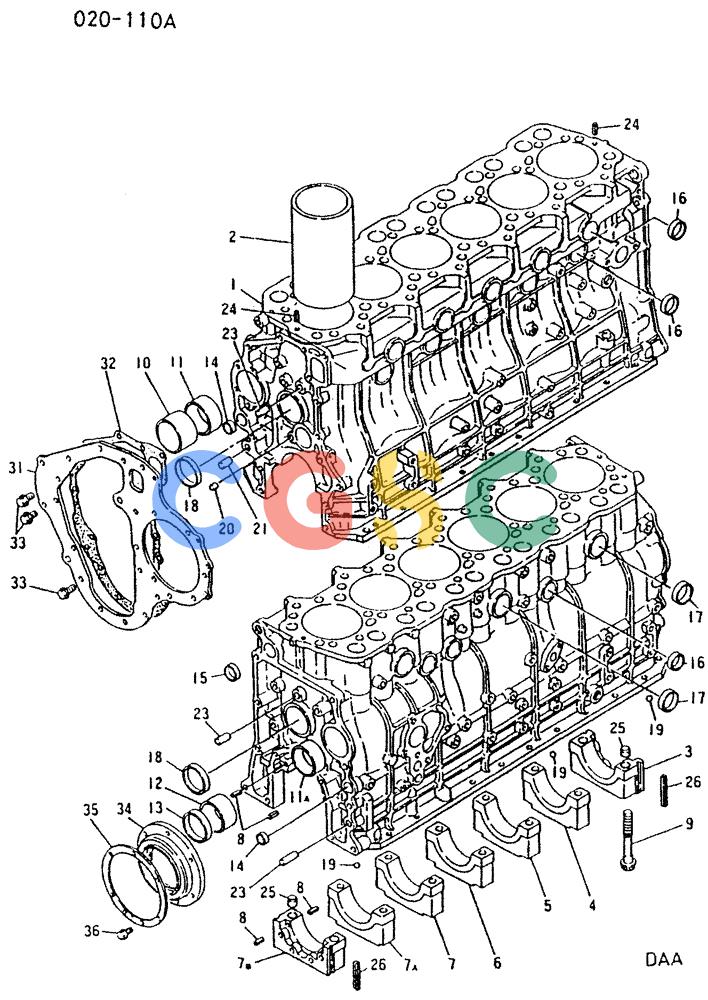

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-001) - CYLINDER BLOCK Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
687 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCRANKCASE |
| 2. | VAME011626 | [6] | SLEEVE CYLINDER | KOBSLEEVE,CYL STD |
| 2. | VAME011627 | [1] | SLEEVE CYLINDER | KOBSLEEVE,CYL, OS 0.50 |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONCAP.BRG N0.1 |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONCAP.BRG N0.2 |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG N0.3 |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG N0.4 |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG N0.5 |
| 7A. | NSS | [3] | NOT SOLD SEPARAT | CONCAP, BRG N0.6 |
| 7B. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG N0.7 |
| 8. | VAMH012041 | [6] | PIN | KOBPIN, SPG 4X10 |
| 9. | VAME011519 | [14] | SCREW | KOBBOLT 14X102 |
| 10. | VAME029225 | [1] | BUSHING | KOBBUSHING,CAMSHAFT NO.1 |
| 11. | VAME011593 | [1] | BUSHING | KOBBUSHING,CAMSHAFT NO.2 |
| 11A. | VAME081526 | [1] | BEARING LINER | KOBSCREW BUSHING,CAMSHAFT NO.3 |
| 12. | VAME011594 | [1] | BUSHING | KOBBUSHING,CAMSHAFT NO.4 |
| 13. | VAMH037751 | [1] | CAP | KOBCAP,SEALING 57 |
| 14. | VAMS666136 | [2] | PLUG | KOBCAP,SEALING 22 |
| 15. | VAMS666138 | [1] | CAP | KOBCAP,SEALING 28 |
| 16. | VAMS666140 | [12] | PLUG | KOBCAP,SEALING 35 |
| 17. | VAMD000427 | [3] | PLUG | KOBCAP,SEALING 40 Superseded by part number: MD000427 |
| 18. | VAMH037754 | [2] | CAP | KOBCAP,SEALING 50 |
| 19. | VAMF540011 | [4] | BALL | KOBBALL,STEEL |
| 20. | VAME029046 | [1] | PLUG | KOBPLUG |
| 21. | VAMF472406 | [1] | PIN | KOBPIN,DOWEL 12,FOR FR |
| 23. | VAMH007010 | [3] | PIN | KOBPIN.DOWEL 12,FOR RE |
| 24. | VAMF472587 | [2] | PIN | KOBPIN.DOWEL 6X16,FOR CYL HEAD |
| 25. | VAME011618 | [4] | PIN | KOBPIN,DOWEL ,FOR BRGCAP |
| 26. | VAME021111 | [4] | SEAL | KOBSEAL SIDE Superseded by part number: VAME011660 |
| 31. | VAME011596 | [1] | PLATE | KOBPLATE , FR |
| 32. | VAME011598 | [1] | GASKET | KOBGASKET ,FR PLATE Superseded by part number: VAME013221 |
| 33. | VAMF140223 | [4] | BOLT | KOBBOLTFLANG 8X16 |
| 34. | VAME011754 | [1] | OIL SEAL | KOBOIL SEAL, RE |
| 35. | VAME011707 | [1] | SWASH PLATE | KOBPLATE , WSR |
| 36. | VAMF140203 | [7] | BOLT | KOBBOLT,FLANGE 6X12 |
