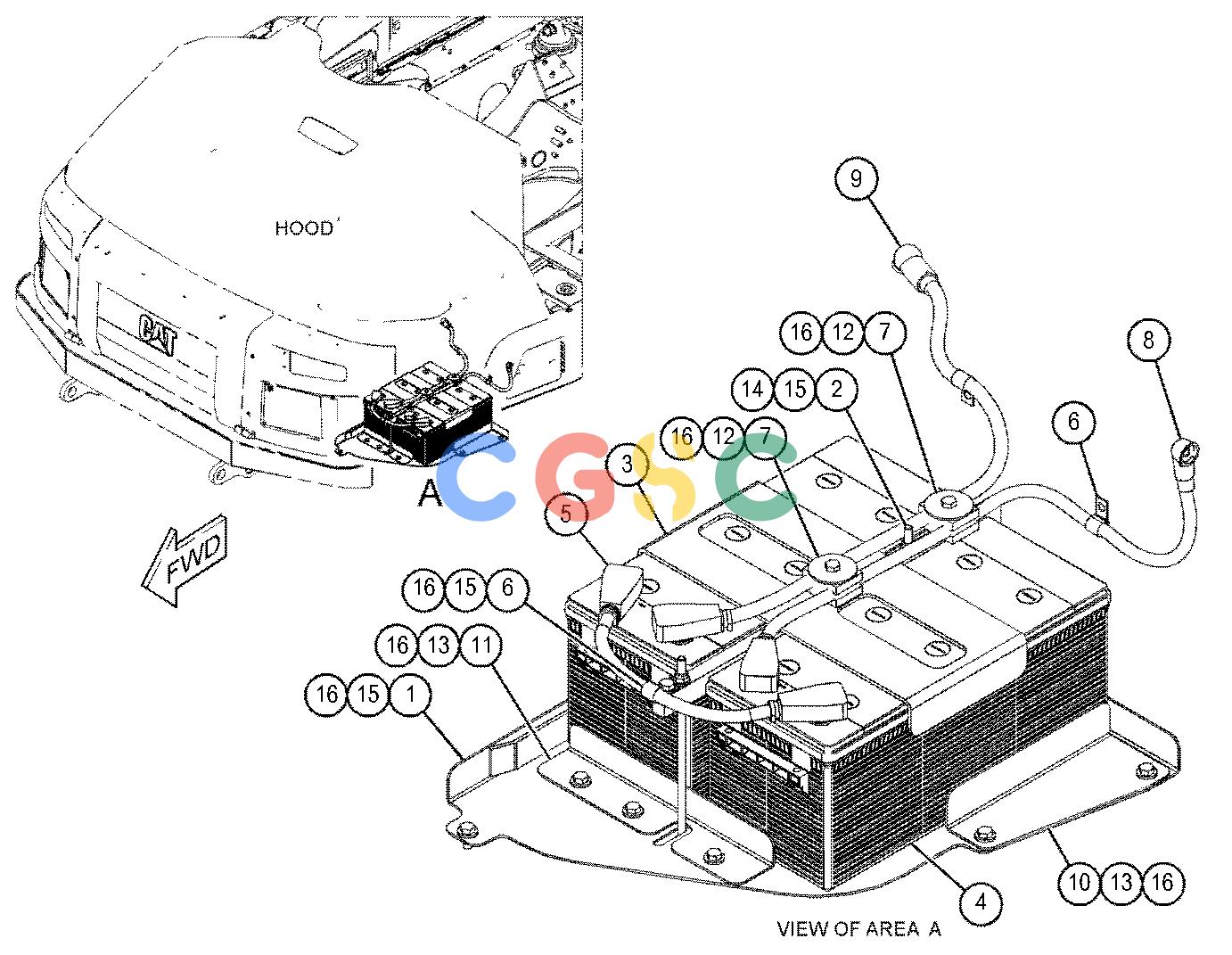

卡特零件查询（725C） 396-1958: BATTERY GP
广数供应链运营团队, 14 02月, 2025，浏览：
225 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 385-5063 | [1] | PLATE | |
| 2. | 396-9869 | [1] | PLATE AS | |
| 3. | 396-9871 | [1] | PLATE AS | |
| | 8T-3490M | [8] | NUT-WELD(M10X1.5-THD) | |
| 4. | 396-9878 | [2] | PLATE | |
| 5. | 396-9879 | [1] | CABLE AS | |
| | 159-8049E | | CABLE(00-GA, RED)(31-CM) | |
| | 8N-1725 | [1] | COVER AS-TERMINAL(RED) | |
| | 7N-5274 | [1] | COVER AS-TERMINAL(BLACK) | |
| | | | (EACH COVER AS INCLUDES) |
| | 8L-8413 | [1] | STRAP-CABLE(WHITE) | |
| | 3S-6050 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | 3S-6049 | [1] | TERMINAL AS-BATTERY(POSITIVE) | |
| | | | (EACH TERMINAL AS INCLUDES) |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| 6. | 396-9883 | [1] | CABLE AS | |
| | 235-2677 | [1] | TERMINAL-RING | |
| | 3S-6049 | [1] | TERMINAL AS-BATTERY(POSITIVE) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED) | |
| | 8N-1725 | [1] | COVER AS-TERMINAL(RED) | |
| | 8L-8413 | [1] | STRAP-CABLE(WHITE) | |
| | 159-8049E | | CABLE(00-GA, RED)(41-CM) | |
| 7. | 396-9884 | [1] | CABLE AS | |
| | 037-5197 | [1] | BOOT | |
| | 159-8050E | | CABLE(00-GA, BLACK)(38-CM) | |
| | 7N-5274 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 8L-8413 | [1] | STRAP-CABLE(WHITE) | |
| | 3S-6050 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| 8. | 115-2422 | [2] | BATTERY GP(12-VOLT, MAINTENANCE FREE, WET) | |
| | | | (EACH INCLUDES) |
| | 123-1373 | [6] | CAP AS-FILLER(7/8-9-THD) | |
| 9. | 159-7463M | [2] | BOLT(M10X1.5X240-MM) | |
| 10. | 263-6342 | [2] | CLIP | |
| 11. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 12. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 8T-4136M | [11] | BOLT(M10X1.5X25-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
