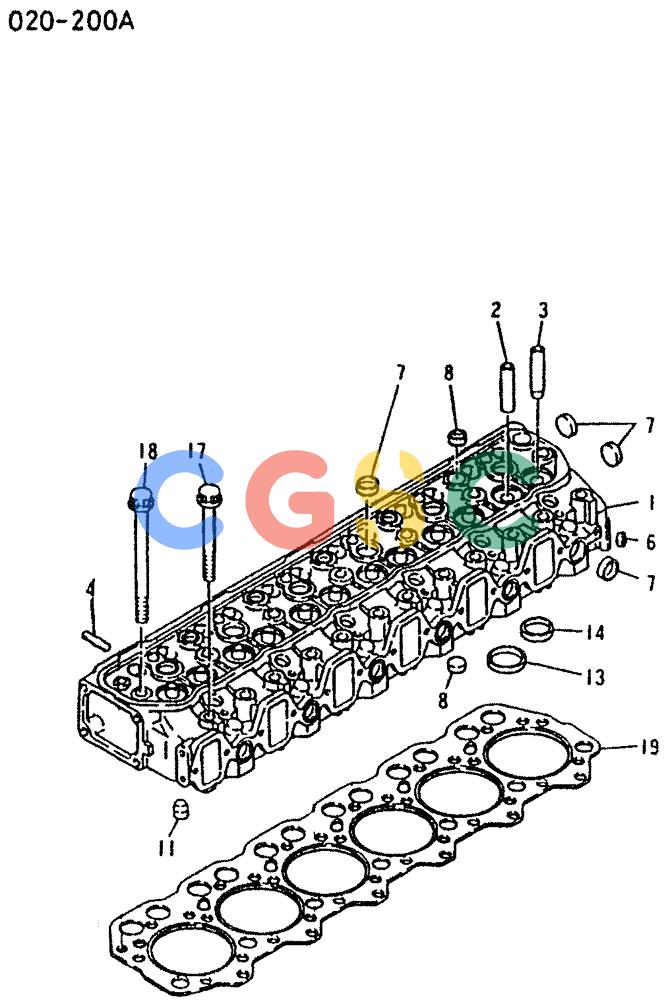

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-006 ) - CYLINDER HEAD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
208 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHEAD,CYL |
| 2. | VAME031886 | [6] | GUIDE | KOBVAIVE INLET |
| 3. | VAME031888 | [6] | GUIDE | KOBVALVE EXHUST |
| 4. | VAMH002174 | [12] | STUD | KOBEXHUST MANIFOLD M10x33mm Long |
| 6. | VAMS666132 | [6] | CAP | KOBSEALING 14 |
| 7. | VAMS666138 | [14] | CAP | KOBSEALING 28 |
| 8. | VAMS666136 | [11] | PLUG | KOBSEALING 22 |
| 11. | VAME011012 | [1] | GUIDE | KOBDIRECTOR |
| 13. | VAME011058 | [6] | SEAT, VALVE | KOBVALVE SEAT INLET Superseded by part number: VAME013297 |
| 13. | VAME011057 | [1] | INSERT | KOBINLET, SEMI-SIZE |
| 14. | VAME029004 | [6] | SEAT | KOBVALVE SEAT EXH Superseded by part number: VAME013188 |
| 14. | VAME029005 | [1] | INSERT VALVE SEAT EXH, SEMI-SIZE | INSERT VALVE SEAT EXH, SEMI-SIZE |
| 17. | VAME011015 | [18] | SCREW | KOBCYL HEAD 14X122 |
| 18. | VAME011016 | [7] | BOLT | KOBCYL HEAD 14X180 |
| 19. | VAME081541 | [1] | CYLINDER HEAD GASKET | KOB |
