神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-005 ) - TIMING, GEAR CASE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
733 次

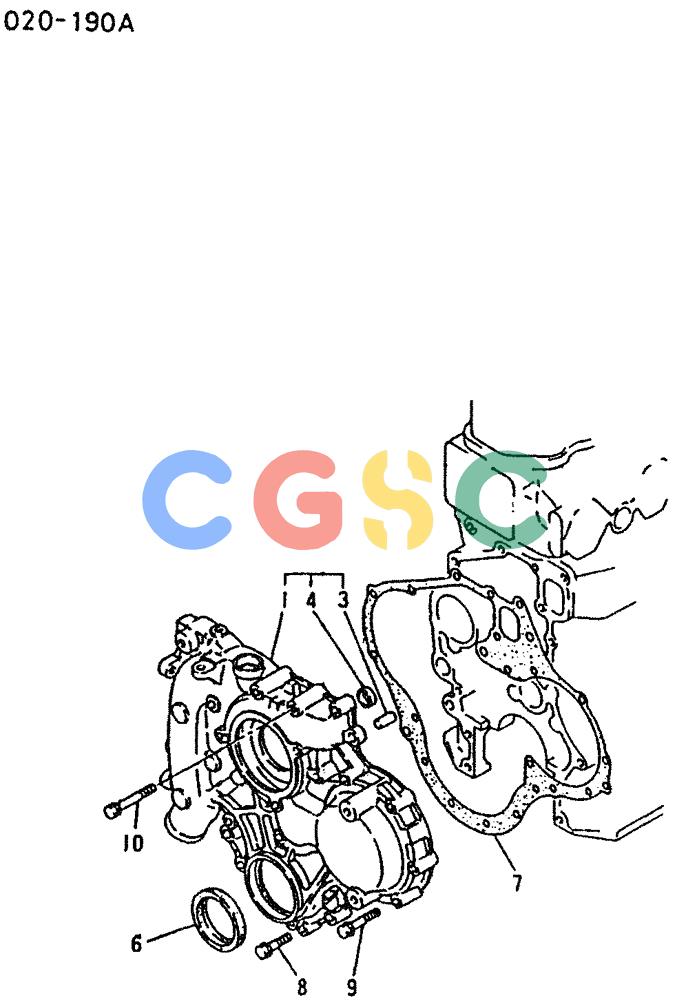

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-4. | VAME081555 | [1] | TIMING GEAR CASE ASSY | |
| 1. | VAME011655 | [1] | CASE | KOBCASE,TIMING GEAR Superseded by part number: VAME013244 |
| 5. | VAMF472406 | [1] | PIN | KOBPIN,DOWEL 12 |
| 4. | VAMS666136 | [1] | PLUG | KOBCAP,SEARING 22 |
| 6. | VAME024156 | [1] | OIL SEAL | KOBOILSEAL.FR |
| 7. | VAME011770 | [1] | GASKET | KOBGASKET GEAR CASE Superseded by part number: VAME220852 |
| 8. | VAMF140233 | [9] | BOLT | KOBBOLT,FLANGE 8X40 |
| 9. | VAMF140235 | [6] | BOLT | KOBBOLT,FLANGE 8X50 |
| 10. | VAMF140239 | [2] | BOLT,FLANGE BOLT,FLANGE 8X70 | BOLT,FLANGE BOLT,FLANGE 8X70 |
