神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-009 ) - CONNECTING ROD & BEARING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
752 次

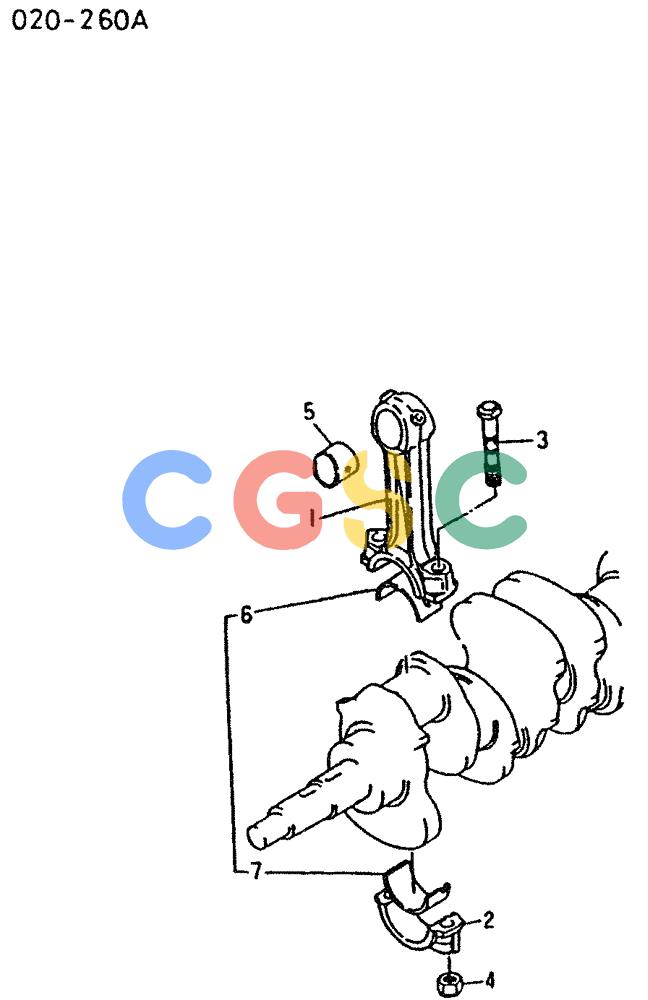

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-5. | VAME012265 | [6] | CONN. ROD SHELL | KOBCONNECTING ROD ASSY |
| 1. | NSS | [6] | NOT SOLD SEPARAT | CONROD,CONNECTING |
| 2. | NSS | [6] | NOT SOLD SEPARAT | CONCAP,CONN-ROD |
| 3. | VAME012232 | [12] | SPECIAL BOLT | KOBBOLT |
| 4. | VAME023570 | [12] | NUT | KOBNUT |
| 5. | VAME012234 | [6] | BUSHING | KOBBUSHTNGCONN-ROD |
| 6-7. | VAME999726 | [1] | BEARING SET | KOBCONN-ROD BEARING SET,ONE MODEL STD Superseded by part number: VAME995170 |
| 6-7. | VAME999727 | [1] | BEARING SET | KOBCONN-ROD BEARING SET,OS 0.25 Superseded by part number: VAME995171 |
| 6-7. | VAME999728 | [1] | BEARING SET | KOBCONN-ROD BEARING SET,US 0.50 Superseded by part number: VAME995172 |
| 6-7. | VAME999729 | [1] | BEARING SET | KOBCONN-ROD BEARING SET,US 0.75 Superseded by part number: VAME995173 |
| 6-7. | VAME999730 | [1] | BEARING SET | KOBCONN-ROD BEARING SET,US 1.00 Superseded by part number: VAME995174 |
| 6. | NSS | [6] | NOT SOLD SEPARAT | CONBEARING.CONN-ROD UPPER STD |
| 7. | NSS | [6] | NOT SOLD SEPARAT | CONBEARING,CONN-ROD LOWER STD |
