凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (88.100.35[04]) - VAR - 439062 - DIA KIT, DENSITY HYDRAULIC SYSTEM PRECHARGE, M.Y. 2015 AND PRIOR Case Agriculture_凯斯Case_工程机械

凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (88.100.35[04]) - VAR - 439062 - DIA KIT, DENSITY HYDRAULIC SYSTEM PRECHARGE, M.Y. 2015 AND PRIOR Case Agriculture

广数供应链运营团队, 14 02月, 2025，浏览： 382 次

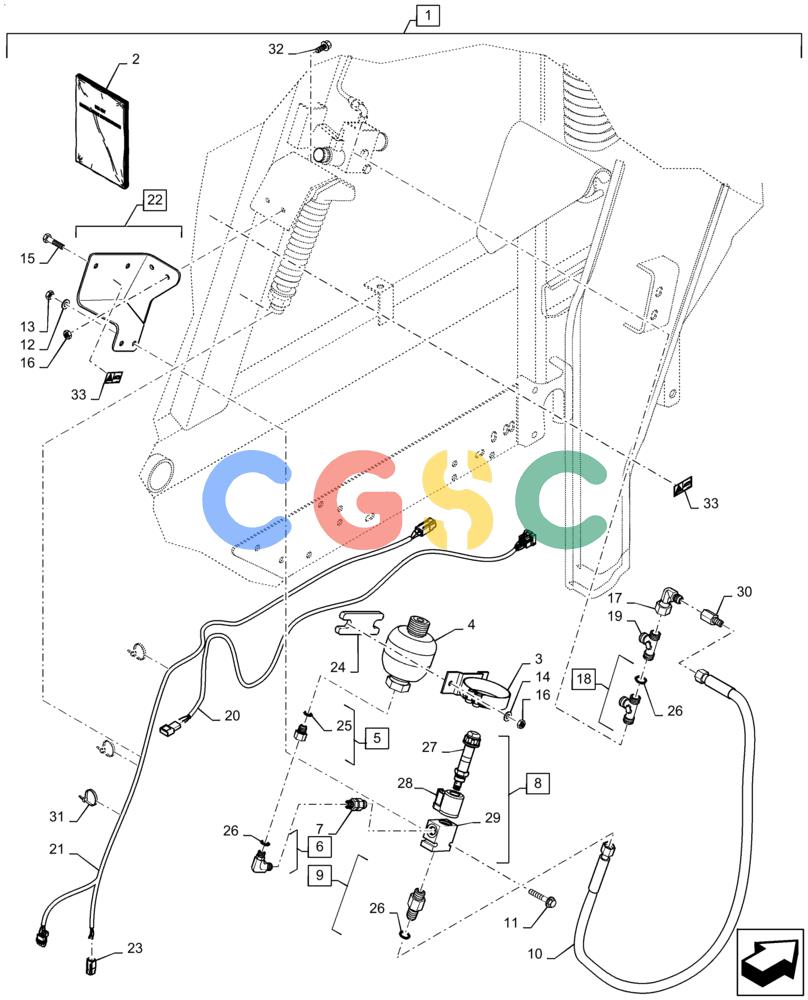

Pos.	Part No	Qty	Parts name	Comments
1.	47863845	[1]	DIA KIT, HARVESTER	NH Density System Pre Charge, Incl 2 - 33 Superseded by part number: 47938320
2.	47797812	[1]	INSTRUCTION	NH Superseded by part number: 47938386
3.	87750434	[1]	CLAMP	FAR
4.	84532089	[1]	ACCUMULATOR	NH
5.	195492	[1]	ADAPTER,3/4" - 16 ORB x 9/16" - 18	NH Incl 25
6.	86836953	[1]	ELBOW,9/16" - 18 ORB x 9/16" - 18 ORB	BEL Incl 26
7.	9846669	[1]	HYD CONNECTOR,9/16" - 18 Male x 9/16" - 18 Male	NH
8.	84563959	[1]	MANIFOLD	NH Assembly, Incl 27 - 29
9.	76350	[1]	HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC	NH Incl 26
10.	47886985	[1]	HYDRAULIC HOSE,9.5mm ID x 27mm L, SAE 100R17	NH
11.	412364	[2]	CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8	ZED
12.	322357	[2]	BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk	NH
13.	353308	[2]	NUT,M6 x 1.0, Cl 8	NH
14.	322358	[2]	BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk	NH
15.	9804260	[5]	BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8	NH
16.	86629542	[5]	NUT,M8 x 1.25, Cl 8.8	ZED
17.	86629586	[1]	90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw	NH
18.	86513020	[1]	TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC	BEL Incl 26
19.	129274	[1]	TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC	BHB
20.	47563962	[1]	WIRE HARNESS	NH BK
21.	47563960	[1]	WIRE HARNESS	NH BP
22.	47583261	[1]	SUPPORT	NH Incl 33
23.	47564232	[1]	WIRE HARNESS	NH BJ
24.	47492194	[1]	SPACER,120mm L x 12mm Thk	NH
25.	128825	[1]	O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro	NH
26.	9617873	[3]	O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro	NH
27.	84300100	[1]	CARTRIDGE	BN
28.	84300102	[1]	COIL	BN
29.	NSS	[1]	NOT SOLD SEPARAT	CON Manifold, Incl in 8
30.	87267034	[1]	ORIFICE,9/16" - 18 Male JIC x 9/16" - 18 Female JIC, 1.91mm ID	BN
31.	86566989	[10]	CABLE TIE,208mm L	ZED
32.	9671714	[3]	FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8	NH
33.	87745977	[2]	CAUTION DECAL	BN
