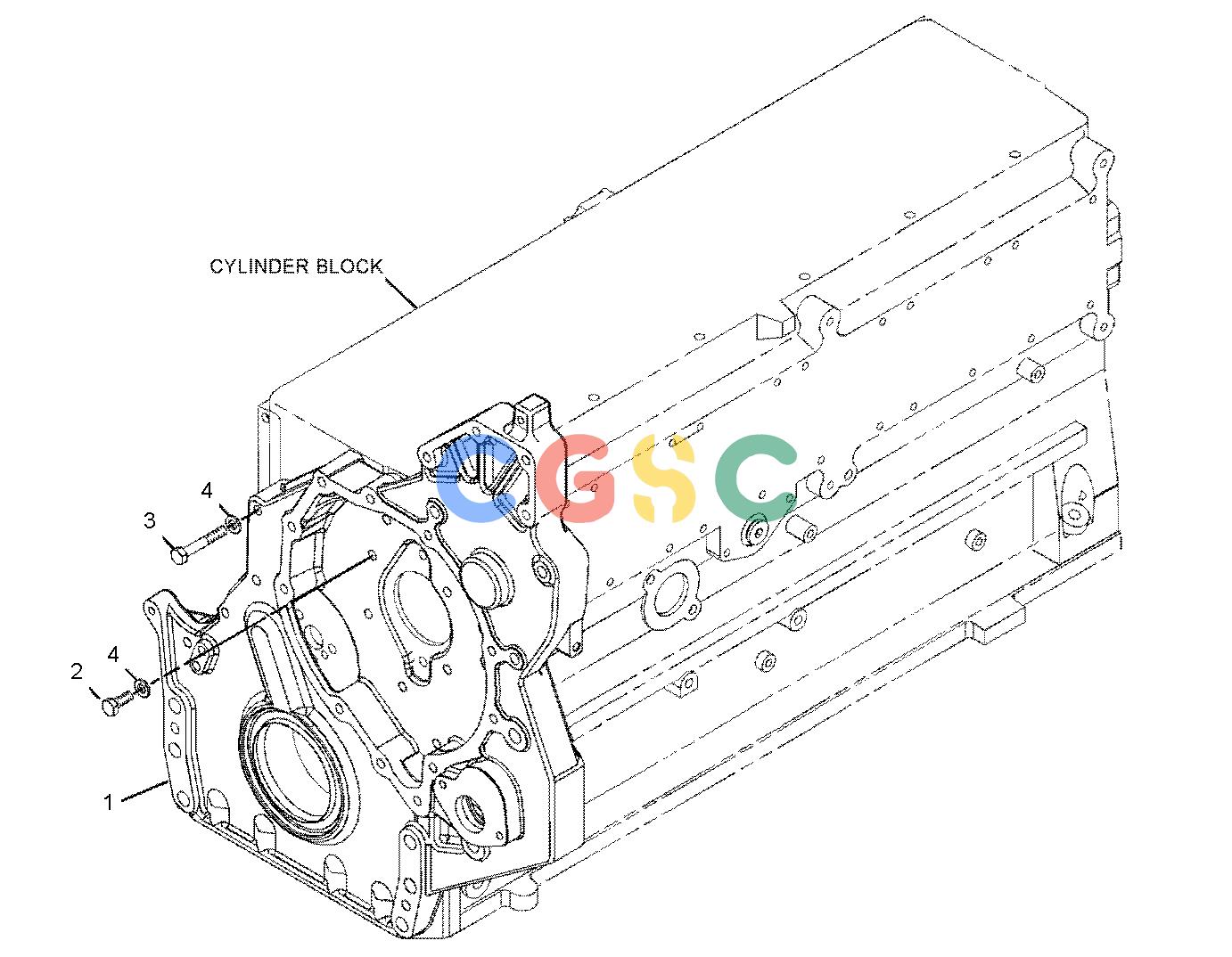

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 296-7523 | [1] | HOUSING-FRONT | |
| 288-5726 | [1] | SEAL GP-CRANKSHAFT(CLOCKWISE ROTATION) | ||
| 2. | 6V-5217M | [8] | BOLT(M8X1.25X20-MM) | |
| 3. | 6V-3918M | [4] | BOLT(M8X1.25X50-MM) | |
| 4. | 9M-1974 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 1U-8846BF | SEALANT-GASKET | |||
| B | USE AS REQUIRED | |||
| F | NOT SHOWN | |||
| M | METRIC PART | |||
