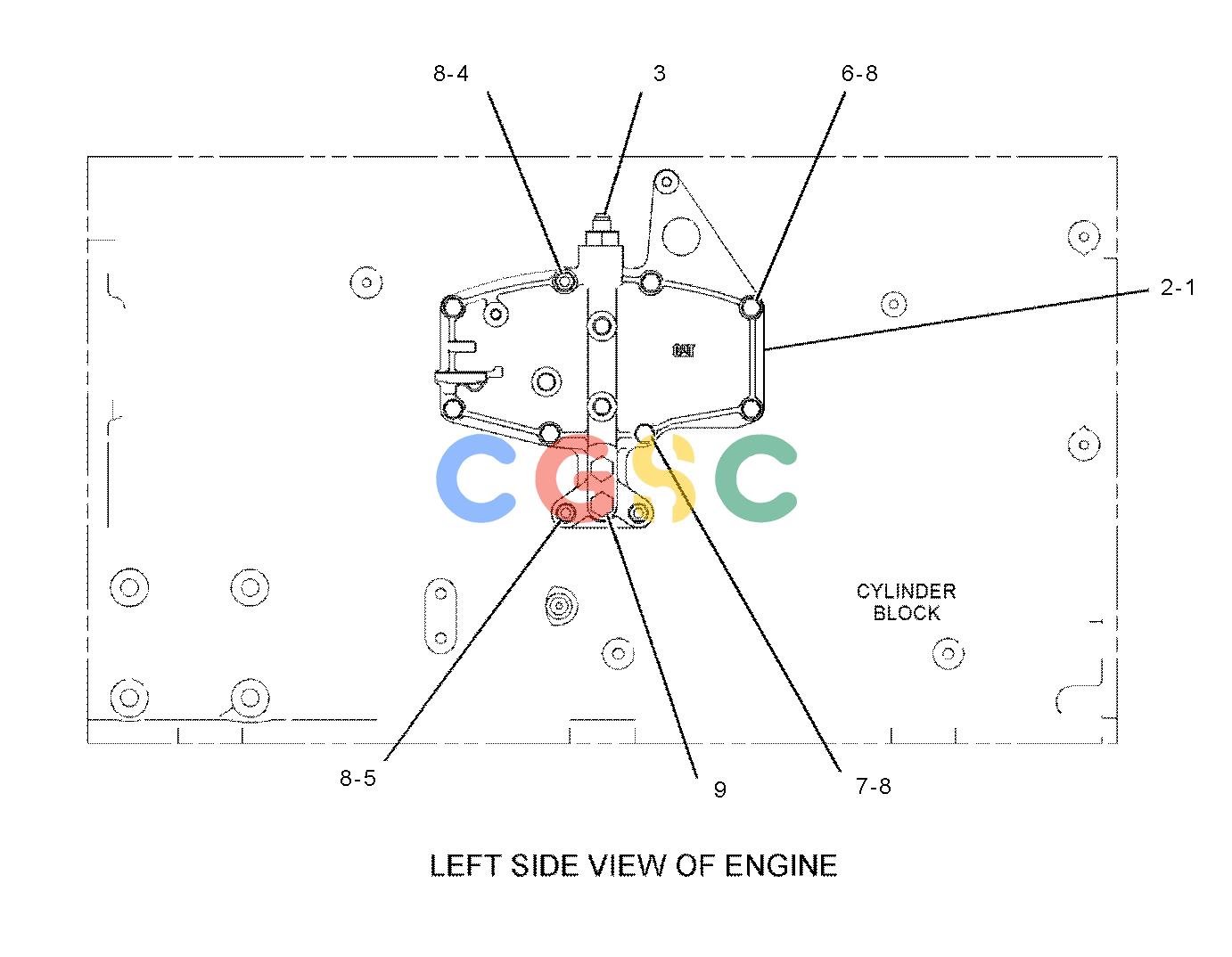

卡特零件查询（725C） 348-9213: COVER & MTG GP-CYLINDER BLOCK
广数供应链运营团队, 14 02月, 2025，浏览：
605 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 280-4322 | [1] | GASKET | |
| 2. | 348-9214 | [1] | COVER-CYLINDER | |
| 3. | 353-5105 | [1] | ADAPTER AS | |
| | 030-8194 | [1] | CONNECTOR | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 4. | 131-0353M | [1] | STUD(M8X1.25X82.75-MM) | |
| 5. | 241-0542M | [2] | STUD(M8X1.25X30-MM) | |
| 6. | 6V-2317M | [5] | BOLT(M8X1.25X30-MM) | |
| 7. | 6V-5219M | [2] | BOLT(M8X1.25X40-MM) | |
| 8. | 9M-1974 | [10] | WASHER-HARD(8.8X16X2-MM THK) | |
| 9. | 398-5597 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 360-3692 | [1] | PLUG | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
