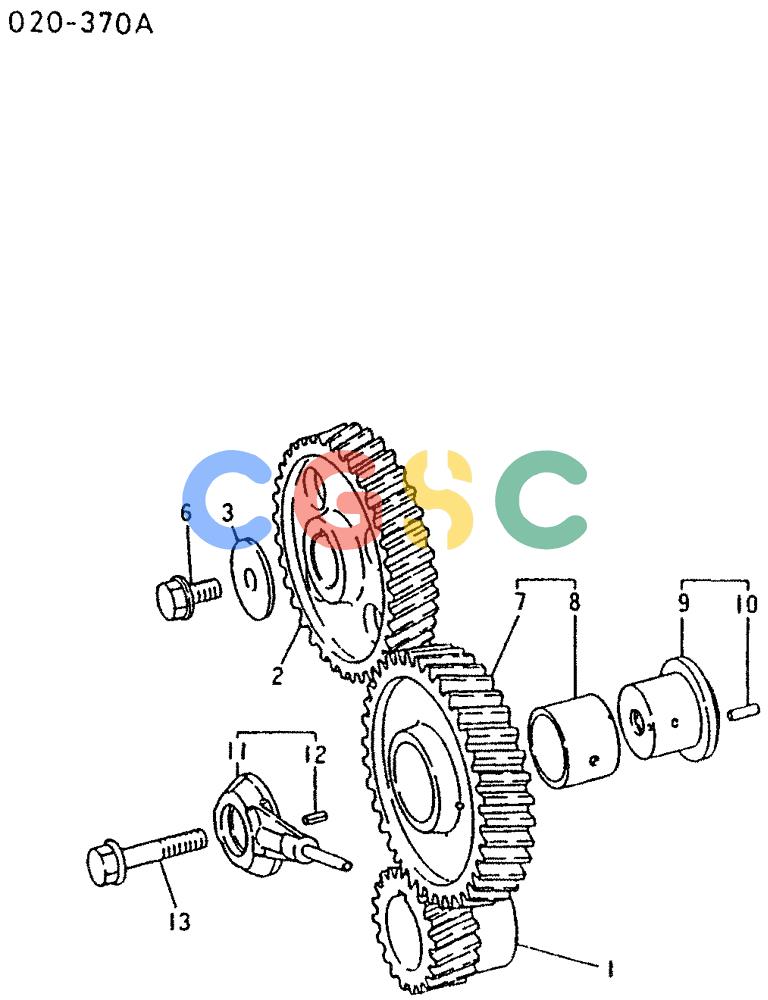

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-013 ) - TIMING GEAR Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
741 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME012729 | [1] | GEAR | KOBGEAR,CRANKSHAFT Z = 23 |
| 2. | VAME012732 | [1] | DRIVEN GEAR | KOBGEAR,CAMSHAFT Z=46 |
| 3. | VAMH005020 | [1] | PLATE | KOBWASHER 44 |
| 6. | VAMF140458 | [1] | BOLT | KOBBOLT,FLANGE 10X20 |
| 7-8. | VAME082515 | [1] | GEAR ASSY,IDLER IDLER GEAR ASSY | GEAR ASSY,IDLER IDLER GEAR ASSY |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR,IDLER Z=47 |
| 8. | VAME082517 | [1] | BUSHING | KOBBUSHING,IDLER |
| 9-10. | VAME082520 | [1] | IDLER | KOBIDLER SHAFT ASSY |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONSHAFT,IDLER |
| 10. | VAMF472571 | [1] | PIN | KOBFIN,SPG 5X20 |
| 11-12. | VAME012747 | [1] | JET | KOBOIL JET ASSY |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONJET,OIL |
| 12. | VAMH012041 | [1] | PIN | KOBPIN,SPG |
| 13. | VAMH001411 | [1] | SCREW | KOBBOLT,FLANGE 10X68 |
